Note: Both of the Pilots are clearly labeled as Pilot 1 and Pilot 2. In a
standard configuration, Pilot 1 is the bottom Pilot in the rack. Pilot 2 is the
top Pilot in the rack.
6
Ensure that all of the power cables plugged into the PDU are seated
properly in their sockets.
Improperly seated power cables can cause the amber LEDs to flash when
the system is powered on. The flashing amber LEDs can be mistaken for a
faulted power supply.
7
Power on the PDU circuit breakers to apply power to the system.

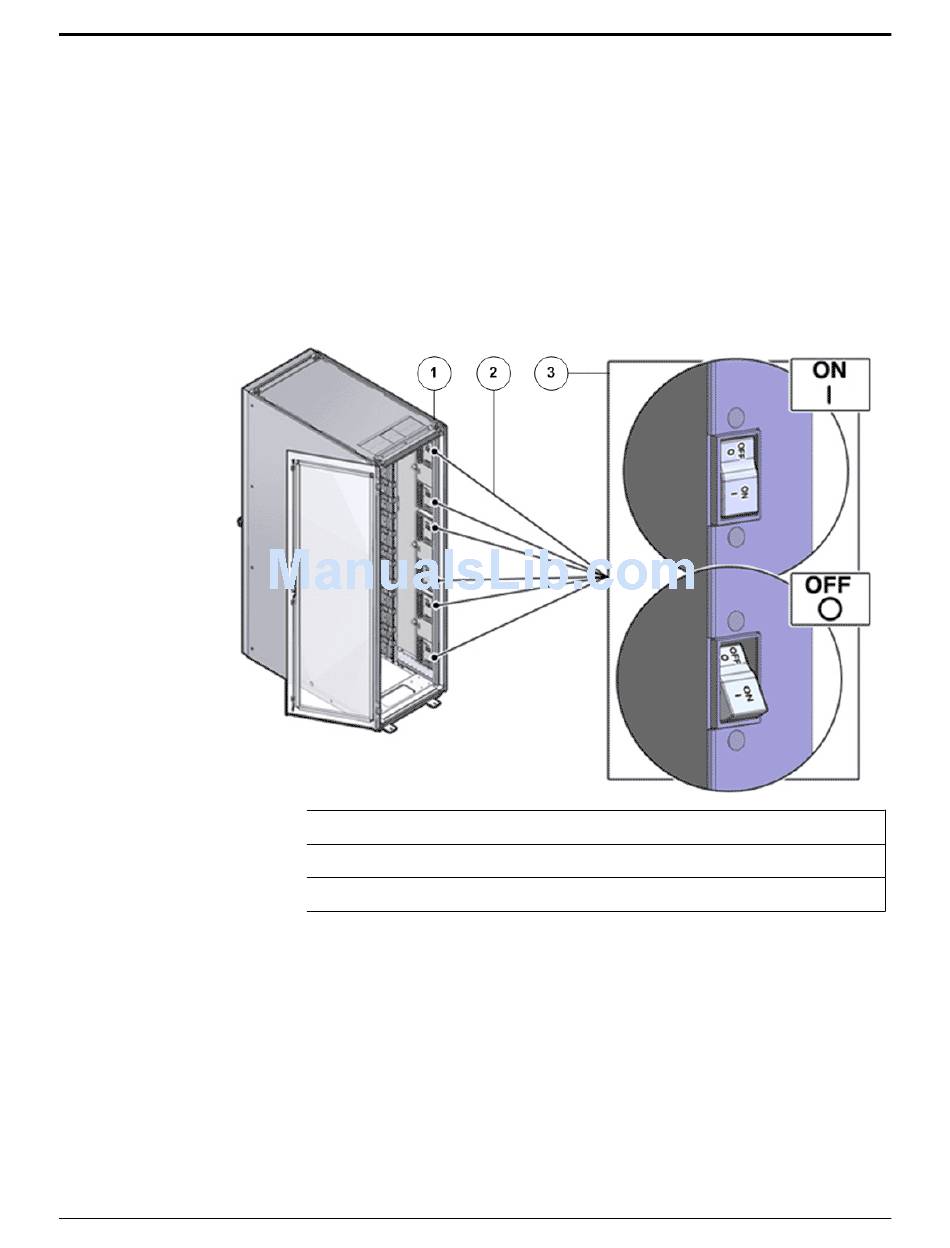

Figure 27: PDU circuit breakers (example)
Legend
1 Rack
2 Example of PDU circuit breakers
3 Toggle switch
Note: The Controllers and the Pilots automatically power on when you
apply power to the system.
8
As the system powers up, verify that the Link LEDs display as steady on
the NET 3 port on Pilot 1 and on the Ethernet port on the laptop.
Related Links
Connect the Power Cables to the Power Supply
System Power
65
