DE2-24C Drive Enclosures
The following figure shows the SAS ports of a DE2-24C Drive Enclosure. Note
the position of the SAS ports and the identical orientation of the two I/O
modules. Remember the orientation of the I/O modules and the location of the
SAS ports as you cable the system.

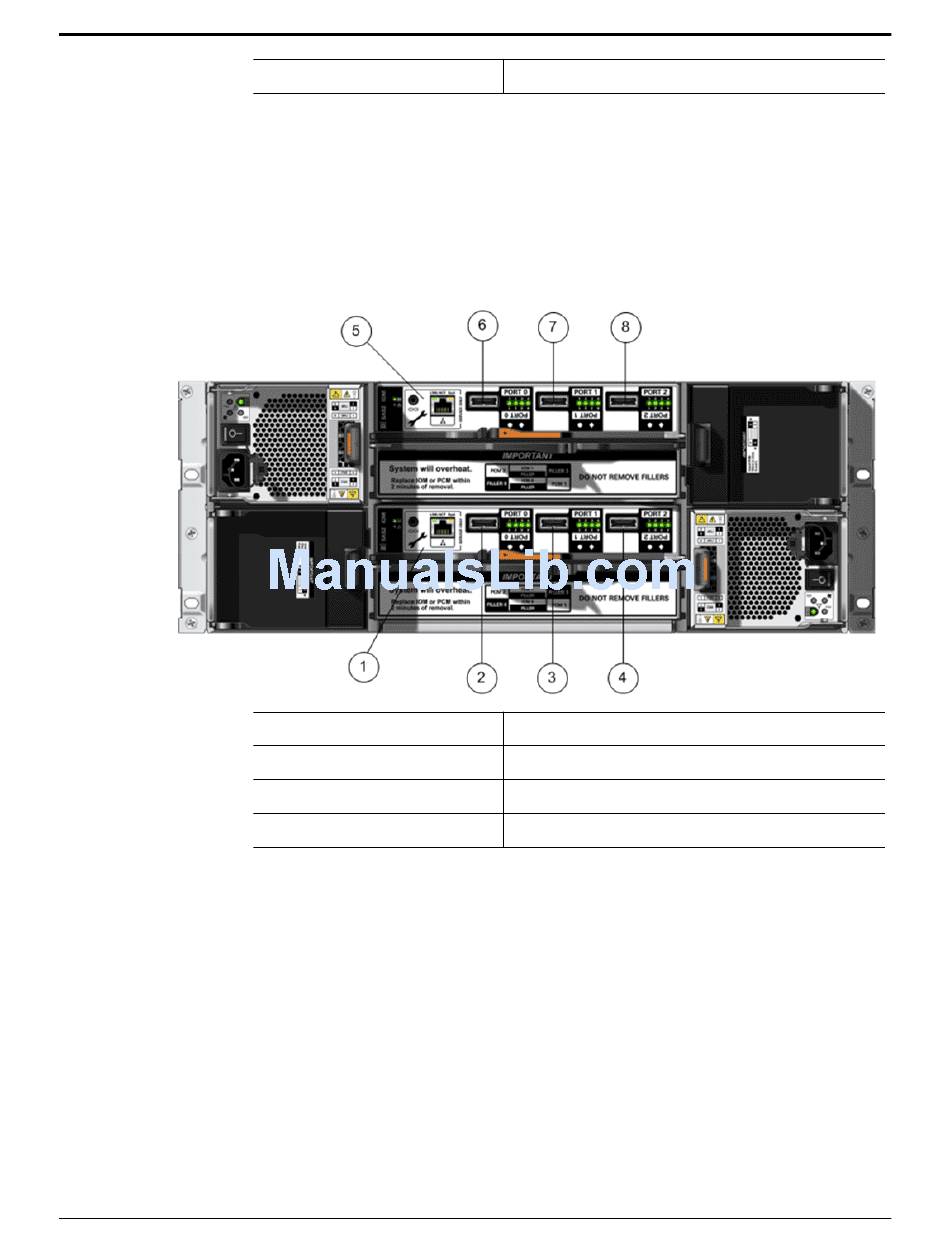

Figure 13: SAS ports for Drive Enclosure cabling (DE2-24C)

Legend
Related Links
Controller Wiring Diagrams
Drive Enclosure Wiring Diagrams

Build Map for Your Oracle FS System

Included in the shipment of an Oracle FS System is a build map. The build map
is a document that summarizes the configuration of the system and how the
hardware components of the system were assembled and tested during the
manufacturing process.
The build map provides the following details:
4 I/O module 0, SAS port 2
1 I/O module 0
2 I/O module 0, SAS port 0
3 I/O module 0, SAS port 1
4 I/O module 0, SAS port 2
Oracle FS Systems: Cabling Overview
8 I/O module 1, SAS port 2
5 I/O module 1
6 I/O module 1, SAS port 0
7 I/O module 1, SAS port 1
8 I/O module 1, SAS port 2
