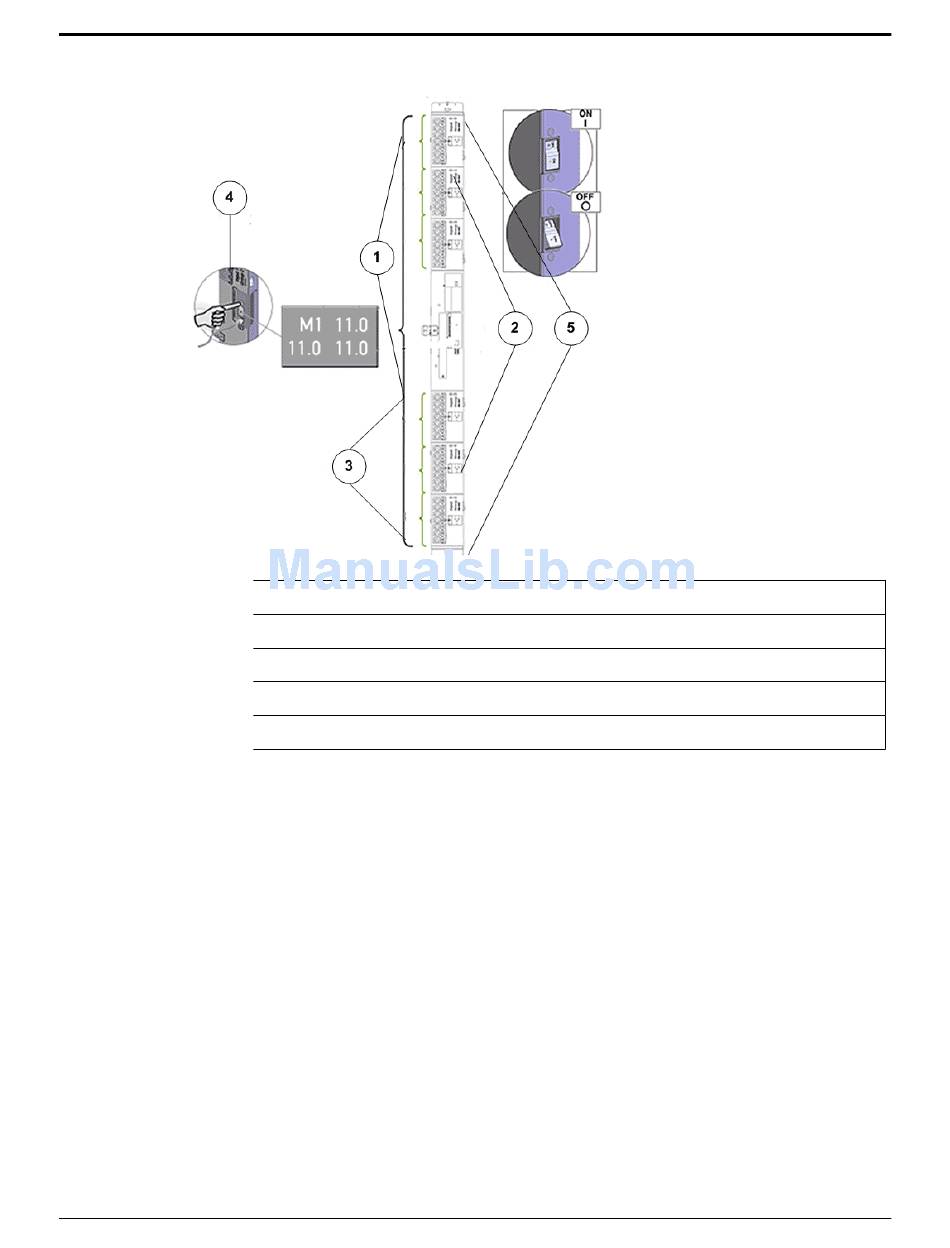

Figure 24: Three-phase PDU outlet groups
Legend
Related Links
Wiring Diagram: Three-Phase PDU
Wiring Diagram: Three-Phase PDU
The wiring diagram for cabling a three-phase power distribution unit (PDU)
shows power cable connections between the PDUs and the Oracle FS System
components that are load balanced between the PDU outlet groups.
The wiring diagrams for PDU cabling and the current load shown is
representative and includes a DE2-24C Drive Enclosure (4U), a DE2-24P Drive
Enclosure (2U), two Controllers, and two Pilots. Different component
configurations within an Oracle FS System provide different results. For
example: Drive Enclosures with SSD drives have a lower power usage than any
Drive Enclosure with SAS HDDs.
The wiring diagram illustrates the cabling of a single PDU. The second
redundant PDU must be cabled identically. Cable connections to the PDU must
1 AC inlet circuit P1 supplies groups 0 and 3
2 AC inlet circuit P2 supplies groups 1 and 4
3 AC inlet circuit P3 supplies groups 3 and 5
4 Amps are monitored across both AC inputs
5 Group of seven outlets has its own 20 A circuit breaker that can be re-set
