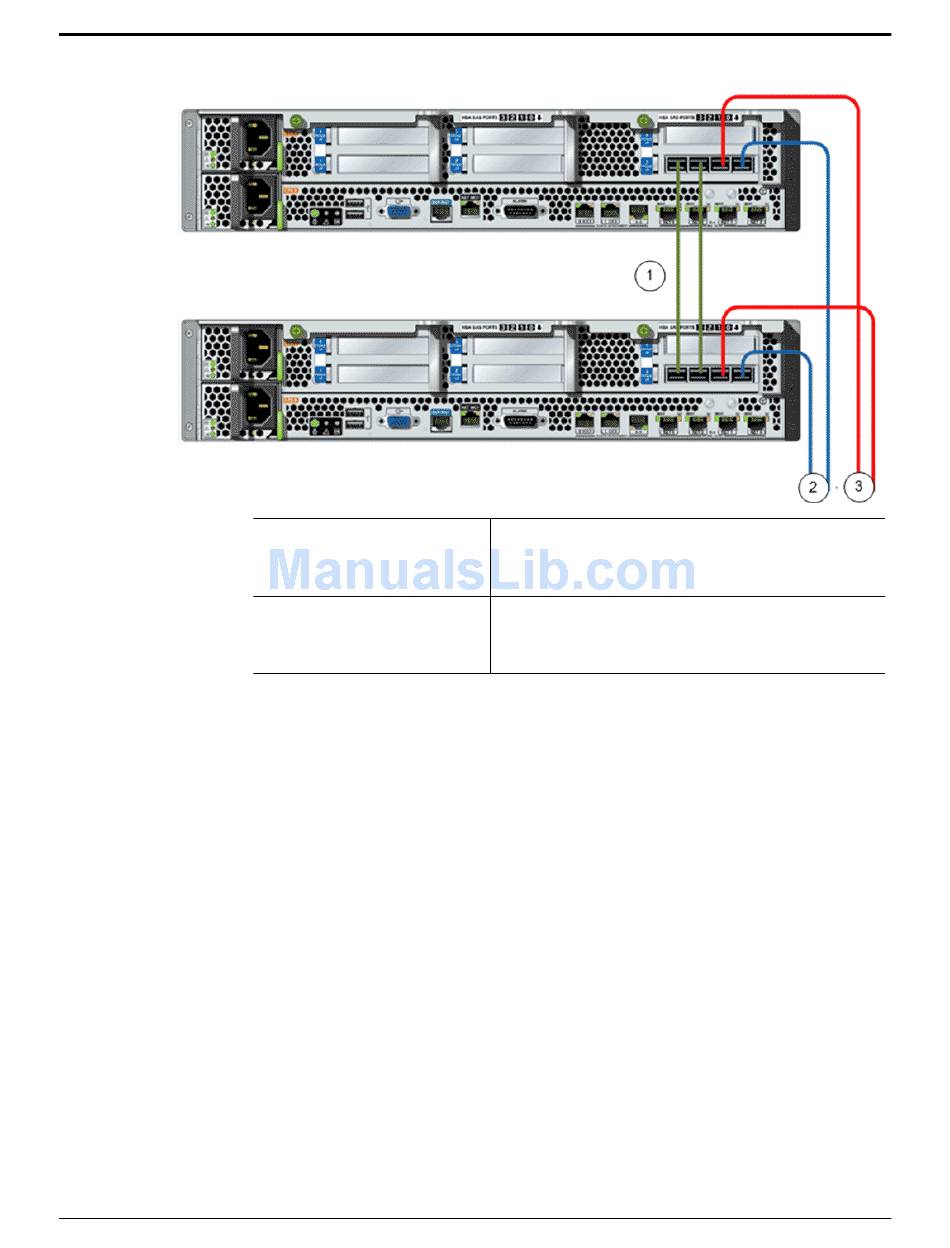

Figure 39: SAS wiring diagram for Controllers to Drive Enclosures (base)

Legend
1 PCIe3 slot 3, SAS HBAs
port 2 and port 3 connect
the Controllers
2 PCIe3 slot 3, SAS HBAs
port 0 connects to Drive
Enclosure string 1
The following figure illustrates the SAS cabling of the Controllers in a
performance system configured with six Drive Enclosure strings.
Note: The colors of the cables that are shown in the figure are for illustration
purposes and do not reflect the actual colors of the cables that are used to cable
the Oracle FS System.
3 PCIe3 slot 3, SAS HBAs port 1 connects to
Drive Enclosure string 2
