SAS Cables for Connecting the Controllers
The following table lists the type of mini-SAS high density (HD) cable and cable
length used to cross-connect the Controllers.

Table 20: Mini-SAS HD cables

Cable Color
Mini-SAS HD to
mini-SAS HD
The following figure shows an example of mini-SAS HD to mini-SAS HD cable
connectors.

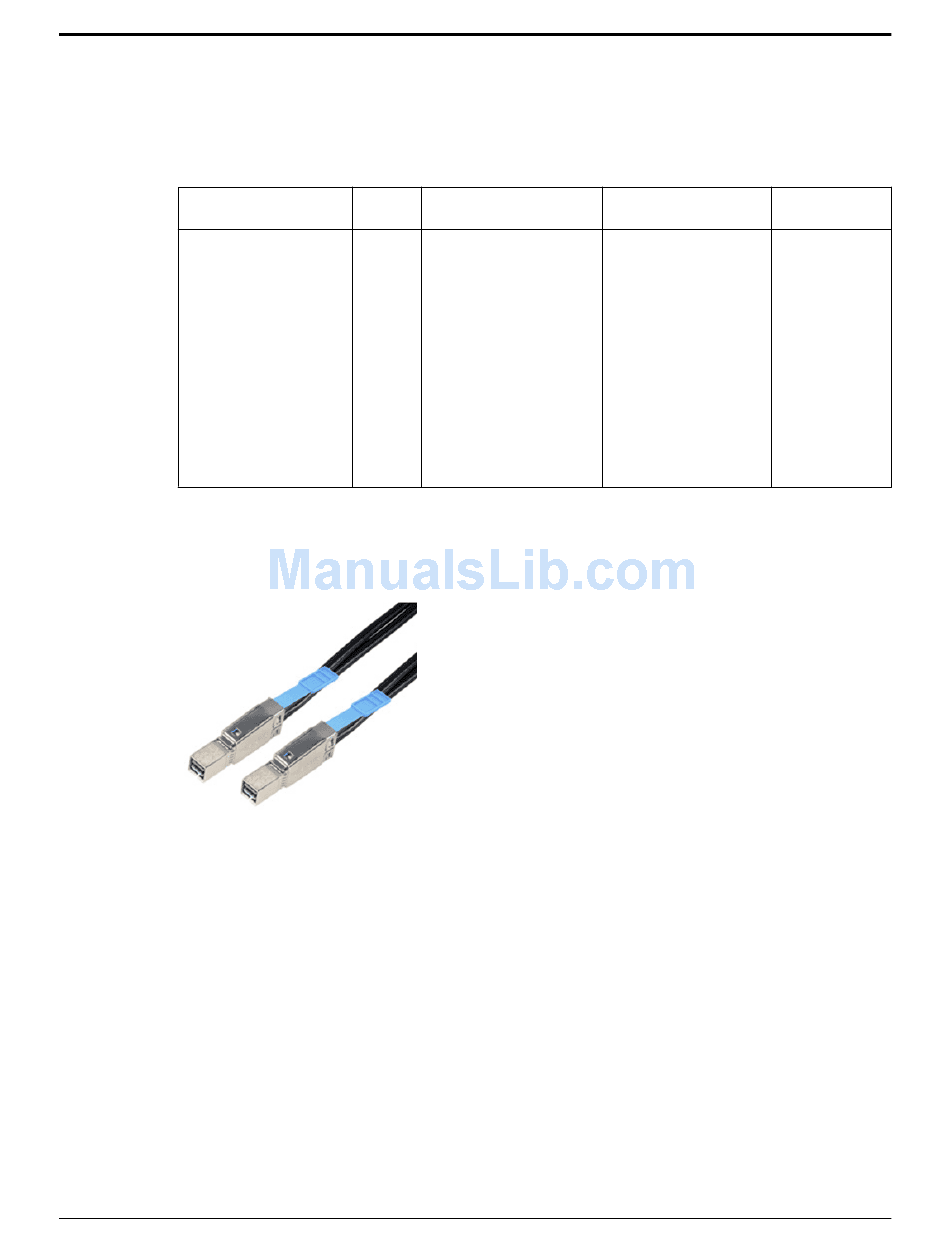

Figure 15: Example of mini-SAS HD to mini-SAS HD cable connectors

SAS Cables for Drive Enclosure-to-Controller Connections
The following table lists the types of mini-SAS to mini-SAS HD cables and the
lengths of the cables used to connect Drive Enclosures to Controllers.
Cable path
Black Connects Controller
1 to Controller 2
Oracle FS System Cables
Quantity Cable length
Two for a base 9.84 feet
system with one
(3 m)
SAS HBA installed
Four for a base
system with two
SAS HBAs
installed
Six for a
performance
system
47
