Controller Cabling

External cabling for the Controllers provides the interface to the customer data
network. Internal cabling supports the private management interface (PMI) and
the Backend SAS Interconnect.
Controller Ports for External Cabling
The following figure shows the SAN HBA ports.

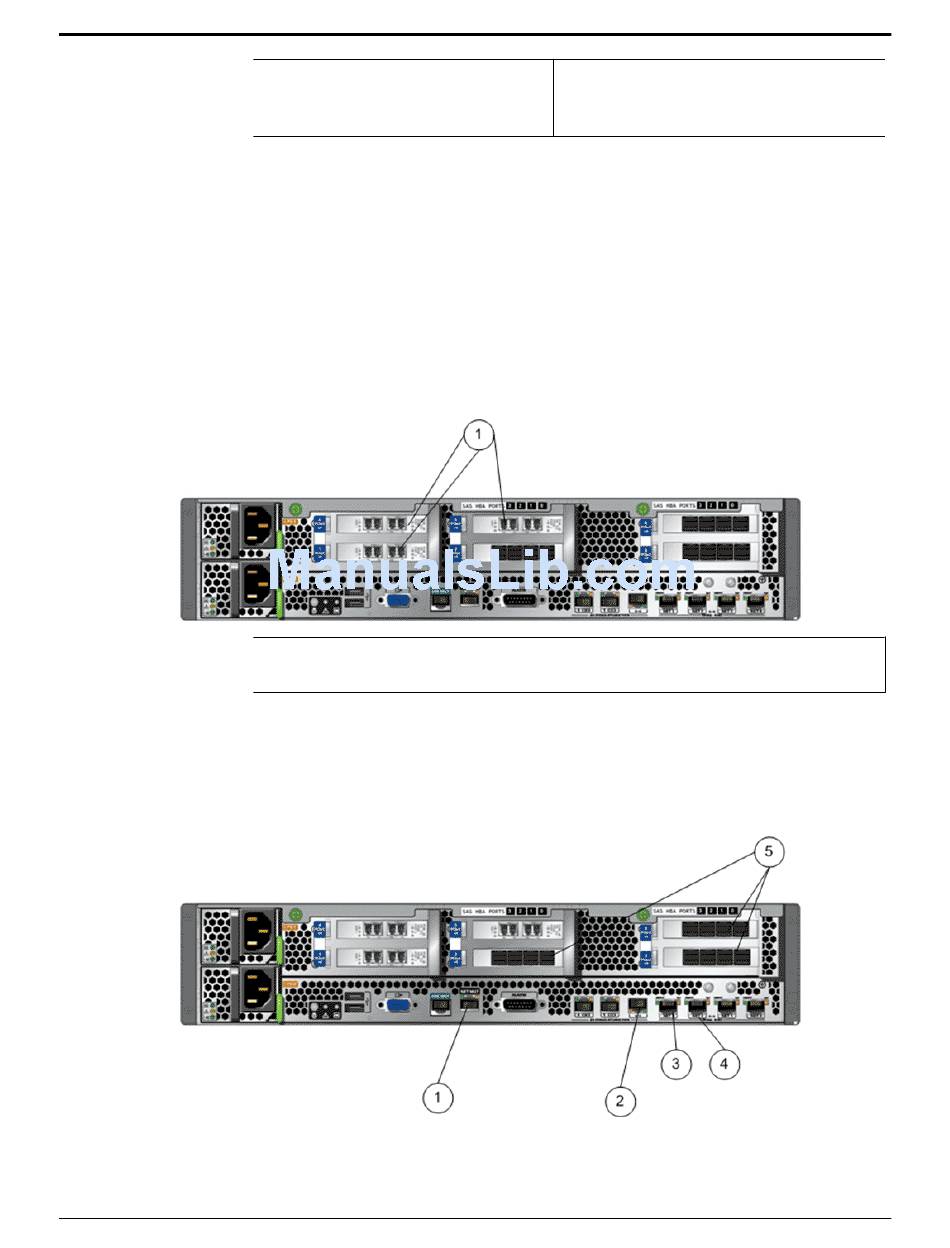

Figure 10: Controller ports for external cabling

Legend
Controller Ports for Internal Cabling
The following figure shows the internal Ethernet ports and the SAS ports.

Figure 11: Controller ports for internal cabling

3 NET 2 port connects to the NET
MGT port on the partner Pilot
node (Ethernet).
1 SAN HBA ports connect the system to the customer data network (FC or
iSCSI)
