Table 21: Mini-SAS to mini-SAS HD cables
Cable
Color
Mini-SAS to
Black
mini-SAS HD
Mini-SAS to
Black
mini-SAS HD
The following figure shows an example of mini-SAS to mini-SAS HD cable
connectors. The mini-SAS connector on one end of the cable connects to the
Drive Enclosure. The mini-SAS HD connector on the other end of the cable
connects to the Controller.

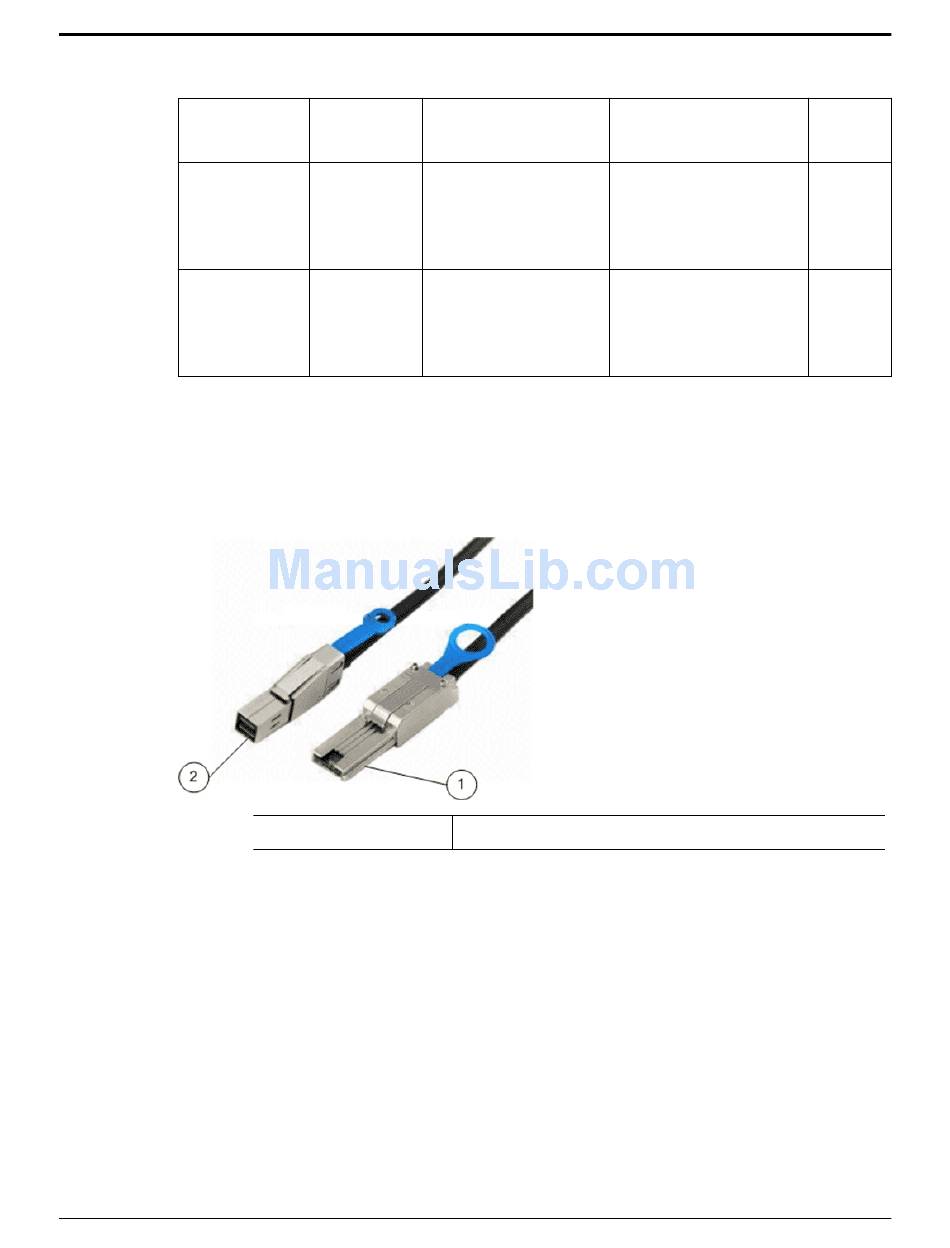

Figure 16: Example of mini-SAS to mini-SAS HD cable connectors
Legend
1 Mini-SAS connector
SAS Cables for Drive Enclosure-to-Drive Enclosure Connections
The following table lists the types of mini-SAS cables and the lengths used to
cross connect Drive Enclosures.
Cable path
Connects a
Controller to a Drive
Enclosure in the
same rack
Connects a
Controller to a Drive
Enclosure that is in a
separate rack
2 Mini-SAS HD connector
Oracle FS System Cables
Quantity
Varies based on the
configuration of the
system
Varies based on the
configuration of the
system
Cable
length
9.84 feet
(3 m)
19.69
feet
(6 m)
48
