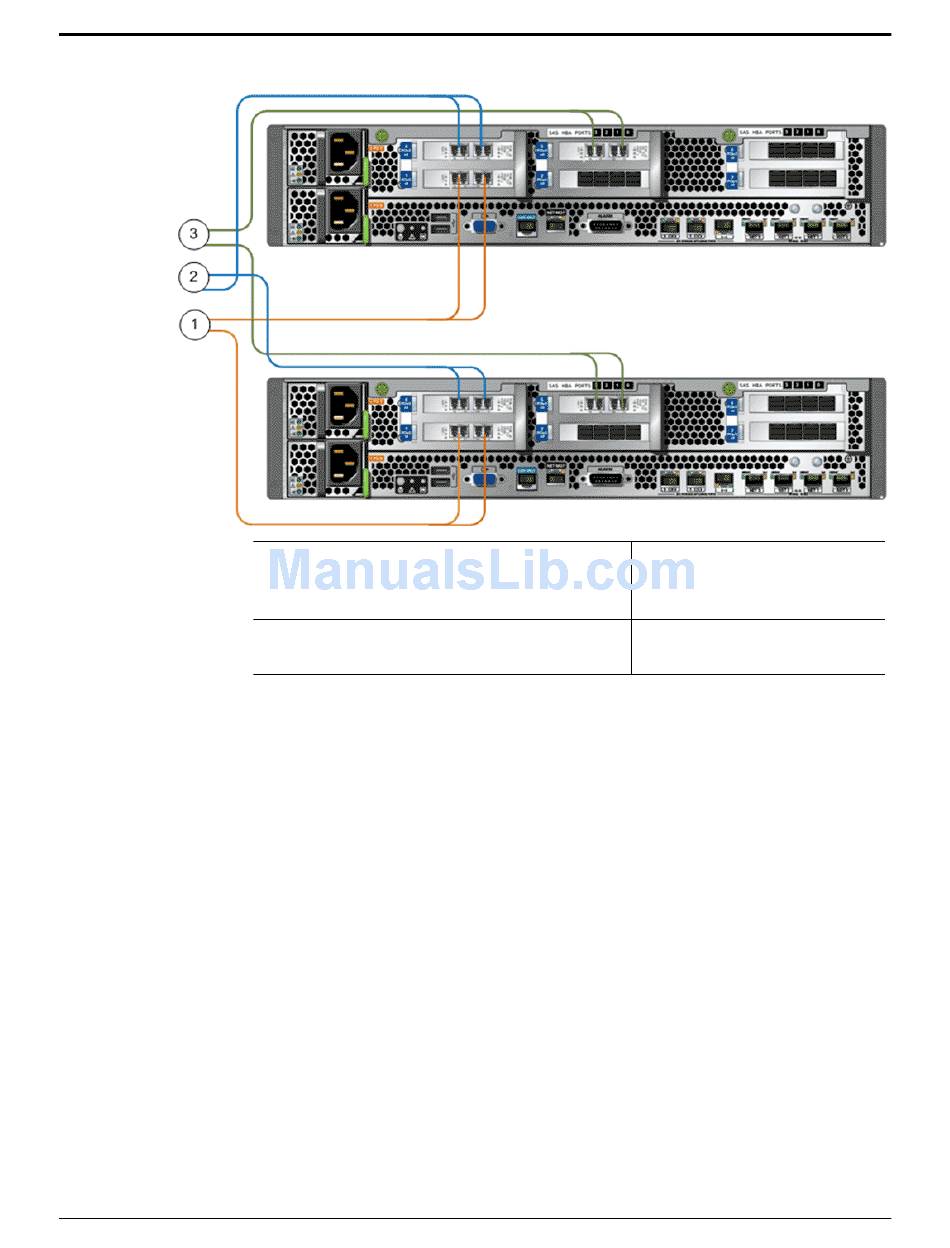

Figure 30: SAN HBA connections to the customer data network
Legend
1 PCIe slot 1, HBA ports for SAN
connectivity (FC or iSCSI)
2 PCIe slot 4, HBA ports for SAN
connectivity (FC or iSCSI)
1
For SAN FC connections, connect the FC cables from the SAN FC ports on
the Controllers to the customer's SAN environment.
2
For SAN iSCSI connections, connect the 10 GbE optical or copper cables
from the SAN ISCSI ports on the Controller to any open data ports
available on two separate Ethernet network switches.
3
Route the cables through the Controller cable management arm (CMA).
Connect to the Customer Data Network
3 PCIe slot 5, HBA ports for
SAN connectivity (FC or
iSCSI)
