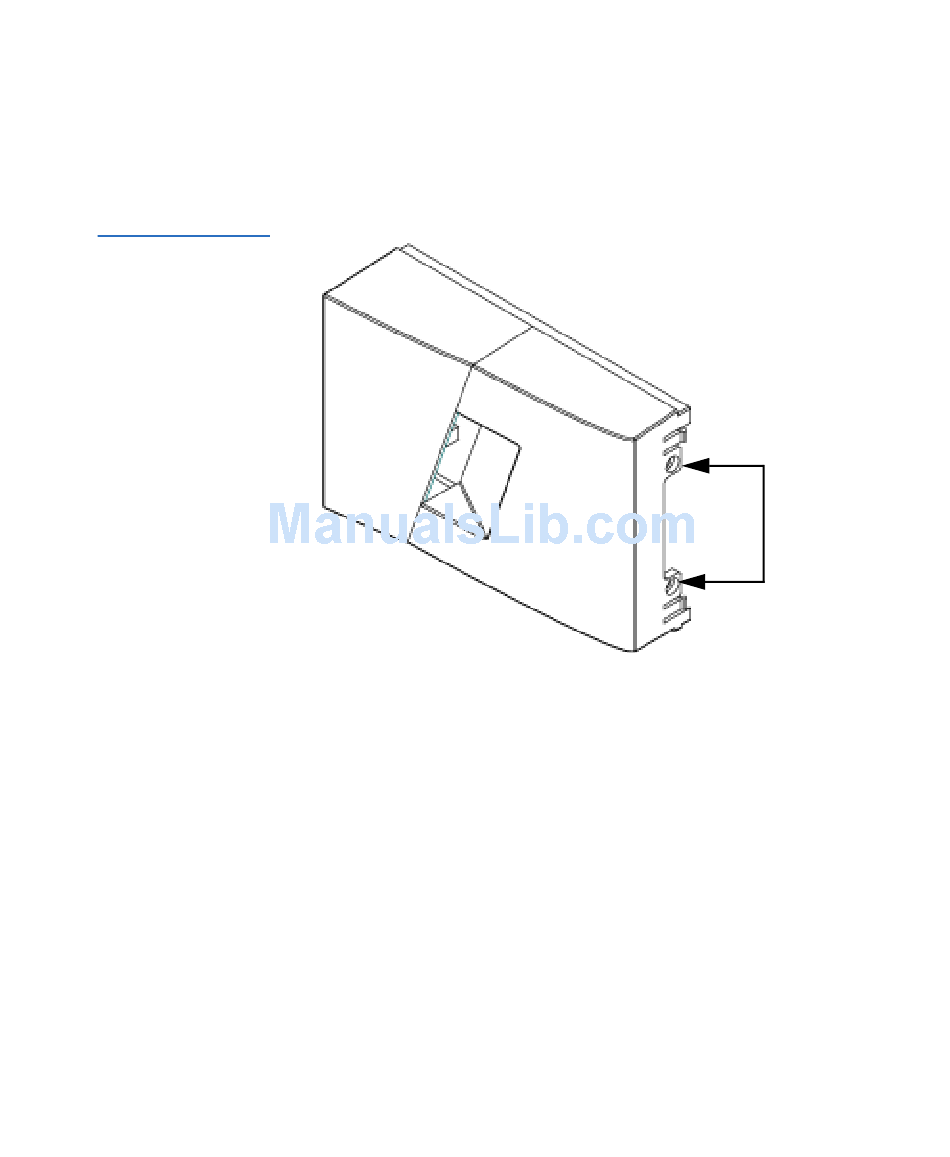

Figure 9 Removing
the Screws from the
Handle
Changing the orientation of a magazine
1 Remove the two screws that attach the handle to the front of the
magazine.
2 Unsnap the handle carefully, being careful not to break the hinge.
3 Rotate the magazine 180 degrees so that what was the front of the
magazine is now the back.
4 Attach the appropriate left or right handle to the front of the rotated
magazine.
5 Snap the handle back onto the front of the magazine.
6 Install the two screws to attach the handle securely to the magazine.
Changing the orientation of a magazine blank
1 Remove the two screws that attach the handle to the front of the
magazine blank.
2 Unsnap the handle carefully, being careful not to break the hinge.
SuperLoader 3 Autoloader User's Guide
Chapter 7 Customer Replaceable Units (CRUs)
Replacing a Magazine or Magazine Blank
7
Screws
7
85
