Installation In A .375 Square Hole Rack; Figure 22 Front Cover Plate And 10-32 Nut Plates - Freecom SUPERLOADER3 LTO2-HH Manual

Chapter 7 Customer Replaceable Units (CRUs)
Installing and Removing the Optional V-Rail Kit

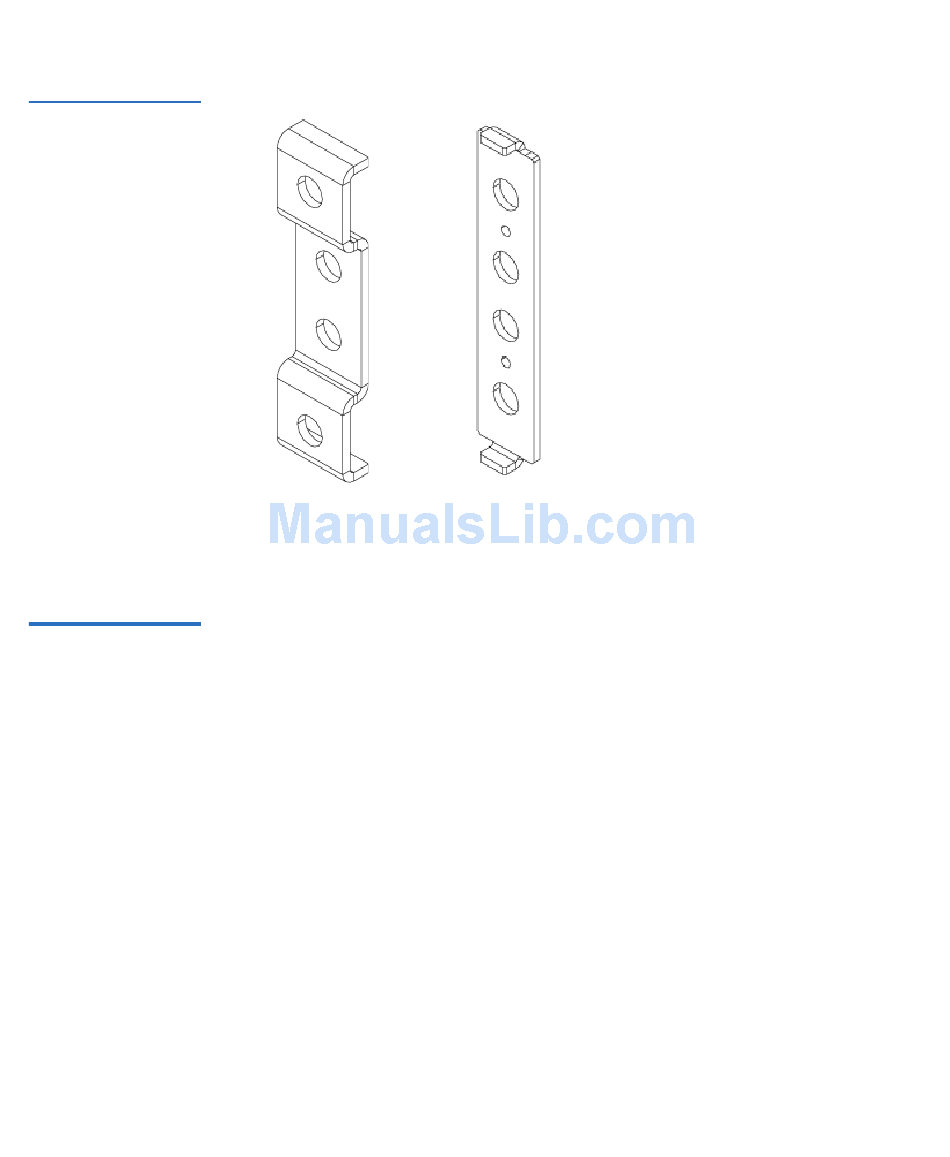

Figure 22 Front Cover
Plate and 10-32 Nut
Plates
Installation in a
.375 Square Hole
Rack 7
98
Front cover plate used
on all rack rails
To install the rail in a .375 square hole rack:
1 Identify the correct mounting holes on the vertical rail, making sure
that the selected holes are on the same level.
SuperLoader 3 Autoloader User's Guide
10-32 inside nut plate used on
.375 square hole rail and .280
and M6 rails
