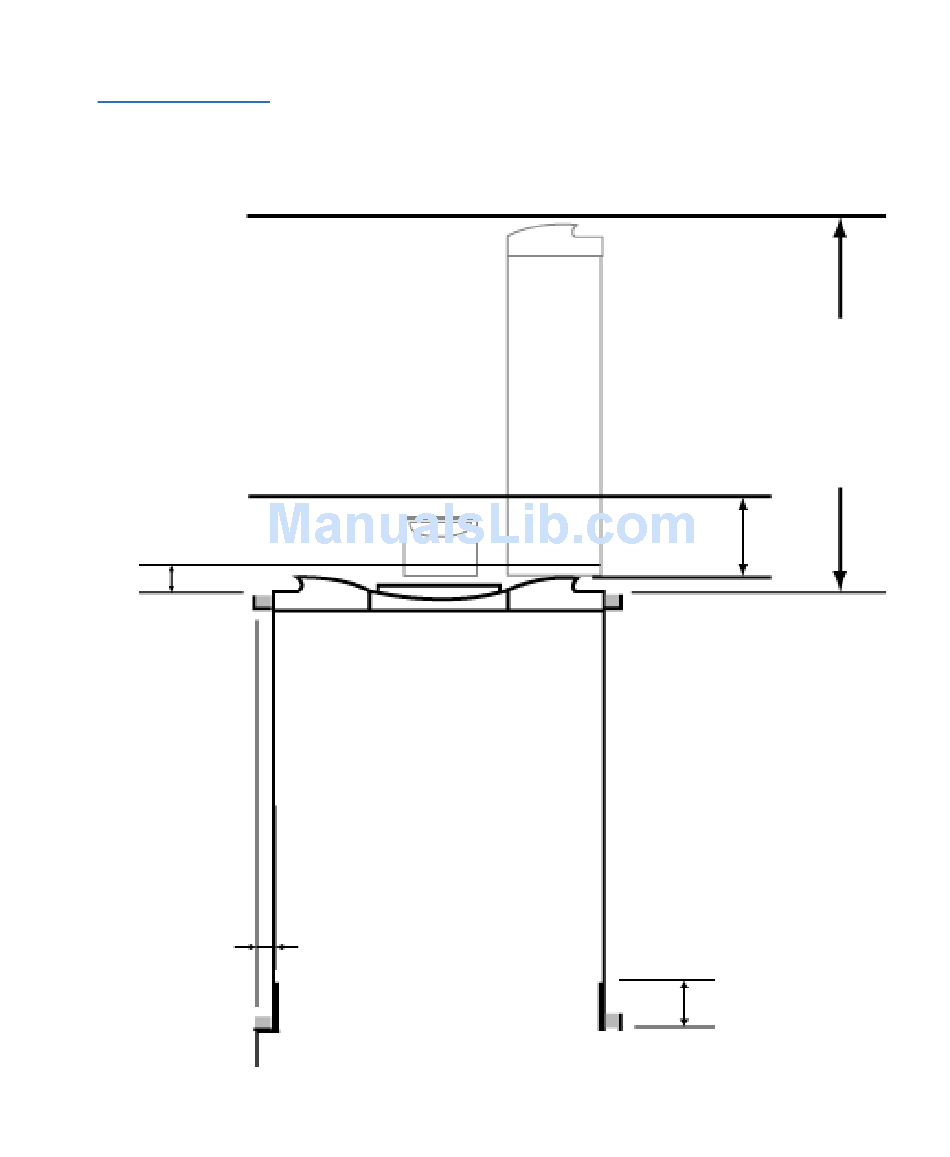

Figure 10 Clearance
Requirements for
Rack Mounting
Clearance to door inside a rack
2.0" [51 mm]
Minimum side
clearance (both
sides)
1.0" [25 mm]
FRONT
REAR
SuperLoader 3 Autoloader User's Guide
Chapter 7 Customer Replaceable Units (CRUs)
Rack Mounting the Autoloader
Minimum clearance to load
or unload a magazine from
the system
Minimum clearance to load
a tape via the mailslot
6.0" [152 mm]
Minimum clearance
between the rear of the
SuperLoader and the
inside of the rack (using
standard mounting
brackets adjusted to their
closest setting)
3.4" [86 mm]
27.0" [686 mm]
87
