HDCI Camera Break-Out Cable

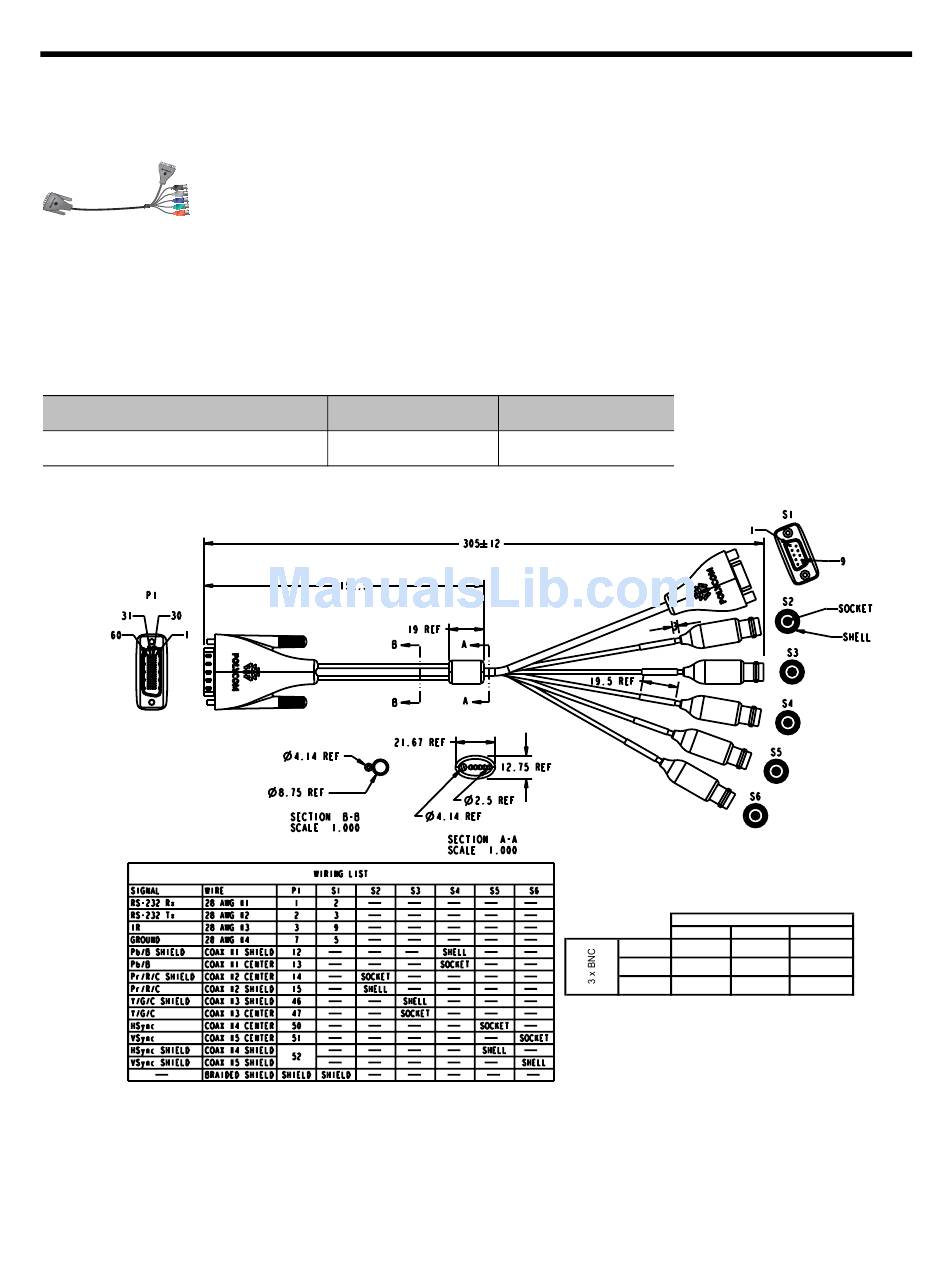

This cable breaks out the HDCI camera cable video and control signals to standard interfaces. This cable
can be connected to the EagleEye View camera, but does not support audio. The five BNC connectors can
be used to carry composite video, S-Video, or analog component YPbPr video. The DB-9 connector is used
to connect to PTZ camera control interfaces. It is male HDCI to five female BNC and one female DB-9.
Length
1ft (0.3 m)
Polycom, Inc.
Part Number RoHS Compliant
2457-23521-001 Yes
Universal Breakout Cable
Video Output
Composite Svideo Component
Red C
Green C Y
Blue
Cables
Pr
Y
Pb
