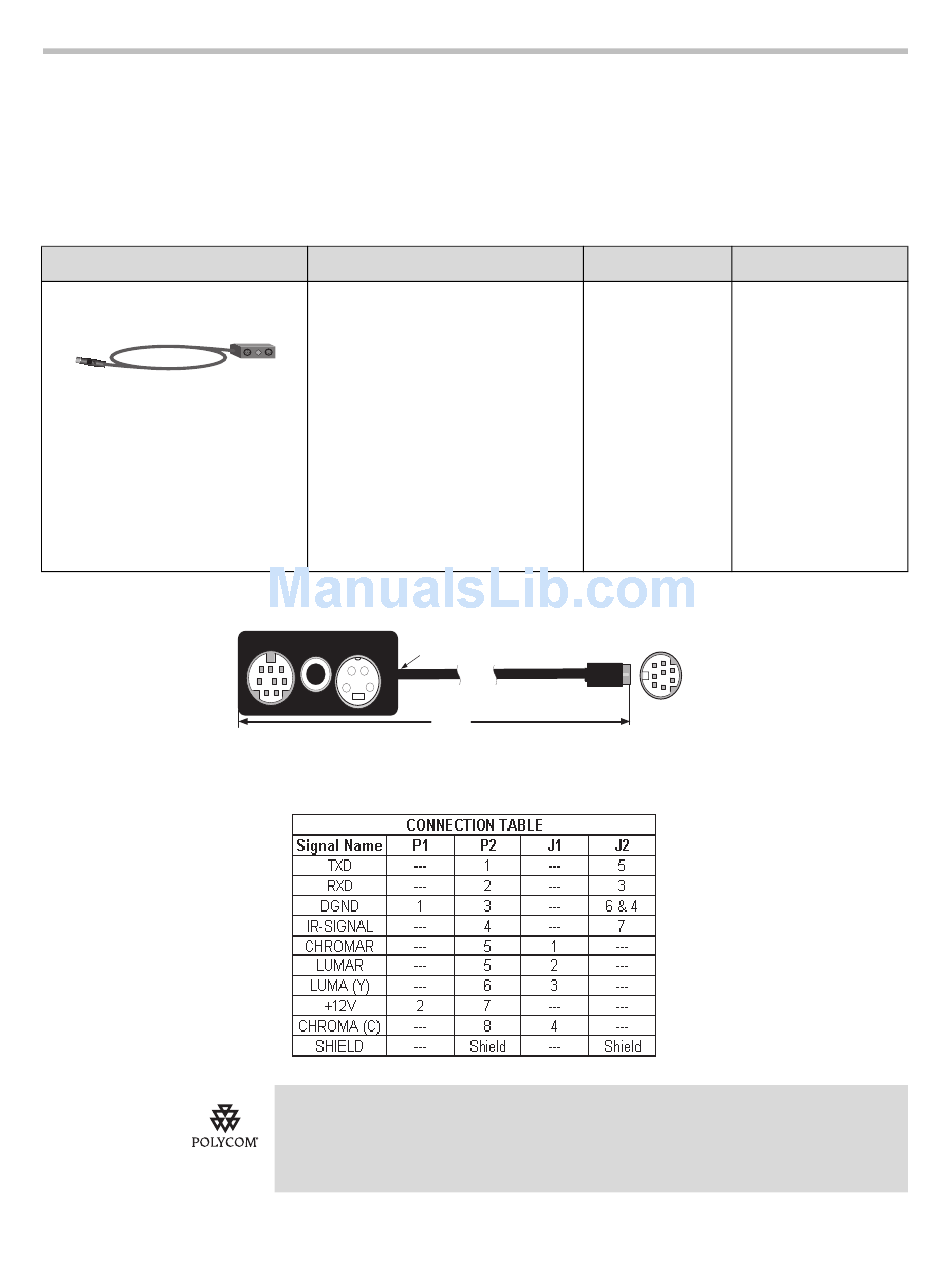

PowerCam Break-Out Cable

Description
8-pin mini-DIN to 3-way breakout
block
This cable connects S-Video and control cables and a power supply to a
Polycom PowerCam camera. This combination is required when using the
PowerCam as either the primary or the secondary camera when the camera is
more than 10 ft away from the system.
Used With
VSX 7000 or VSX 7000s (use with
S-Video cable on page
control cable 2457-21713-00x on
page 2-21)
VSX 7000e or VSX 8000 (use with
S-Video cable on page 2-9, control
cable 1457-50527-001 on page
2-18 for a primary camera, and
control cable 2457-10029-001 on
page 2-18 for a secondary
camera)
Separate power supply required
(part number 1465-52621-036)
Molded PVC strain relief
8 7 6
4 3
5 4 3
2 1
1
2
P1
J2 J1
4 Pin
8 Pin DC
Mini Din
Mini Din Jack
Female
Female
Drawings and part numbers are provided for reference only. Polycom claims no responsibility
or liability for the quality, performance, or reliability of cables based on these reference
drawings, other than cables provided by Polycom. Contact your Polycom distributor or
Polycom Custom/Vertical Products to order cables that meet the appropriate manufacturing
tolerances, quality, and performance parameters for your application.
Part Number
1457-50526-001
2-9 and
P2
6' ± 2.0"
Length
Shipped Length: 6 ft
(1.8 m)
8 Pin Mini Din
Male
Cables
2 - 17
