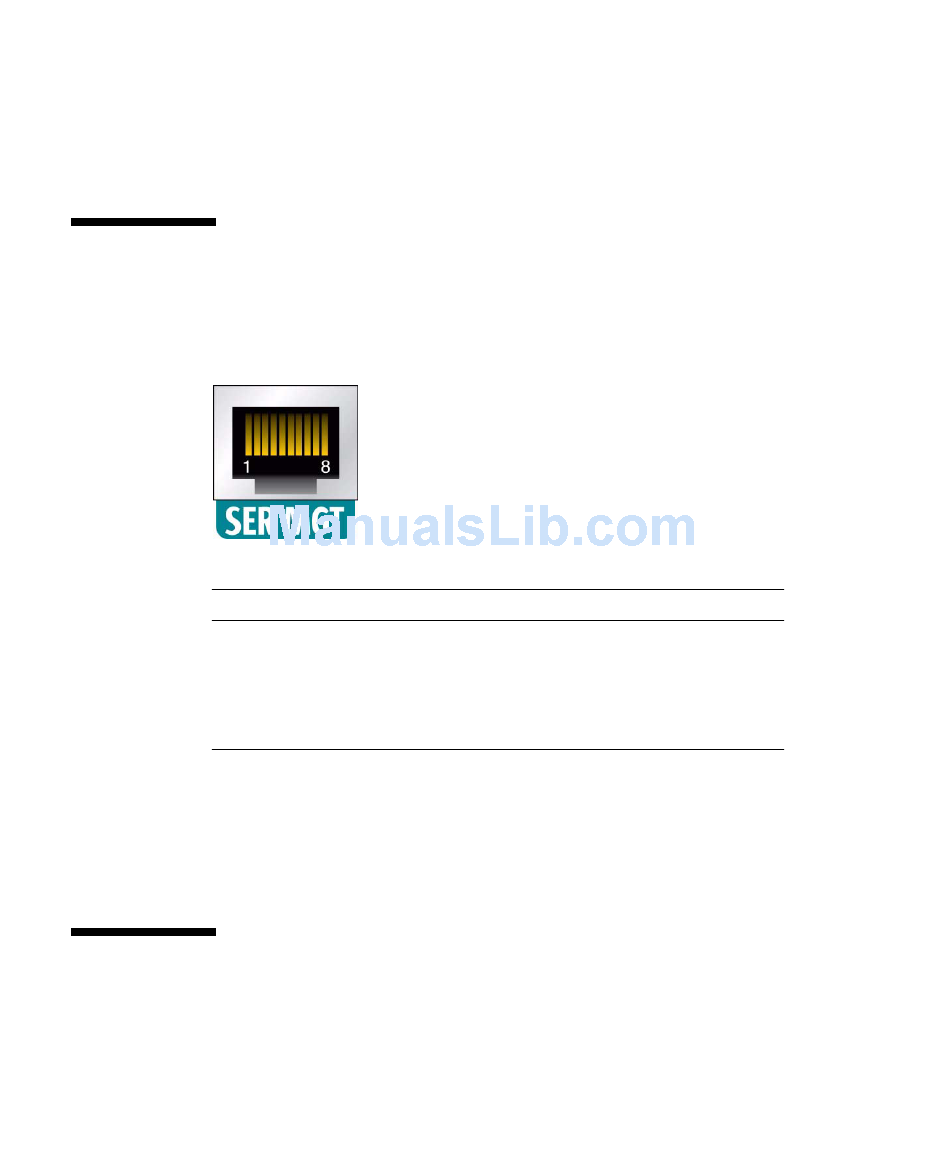

SER MGT Port
The SER MGT RJ-45 port, located on the back panel, provides the default connection
to the system console.
Pin
Signal Description
1
Clear to Send
2
Data Carrier Detect
3
Transmit Data
4
Ground
Related Information
"Back Panel Connectors and Ports" on page 66
■
"Connect Other Data Cables" on page 69
■
NET MGT Port
The NET MGT RJ-45 port, located on the back panel, provides an optional Ethernet
connection to the service processor.
Pin
Signal Description
5
Ground
6
Receive Data
7
Data Terminal Ready
8
Ready to Send
Identifying the Server Ports
