Note – If you need to remove a wire from the DC input plug, insert the cage clamp
operating tool or a small screwdriver into the slot directly above the wire and push
in. Pull the wire from the DC input plug.
7. Remove the cage clamp tool to secure the wire.
8. Repeat the procedures for the other two wires to complete the assembly of the
DC input power cable.
9. Repeat this procedure to create as many DC input power cables as you need for
your unit.
Related Information
"Connect the DC Input Power Cords to the Server" on page 74
■
▼ Connect the DC Input Power Cords to
the Server
1. Ensure that the circuit breaker to your power source is turned off.
74 Netra SPARC T3-1 Server Installation Guide • August 2013

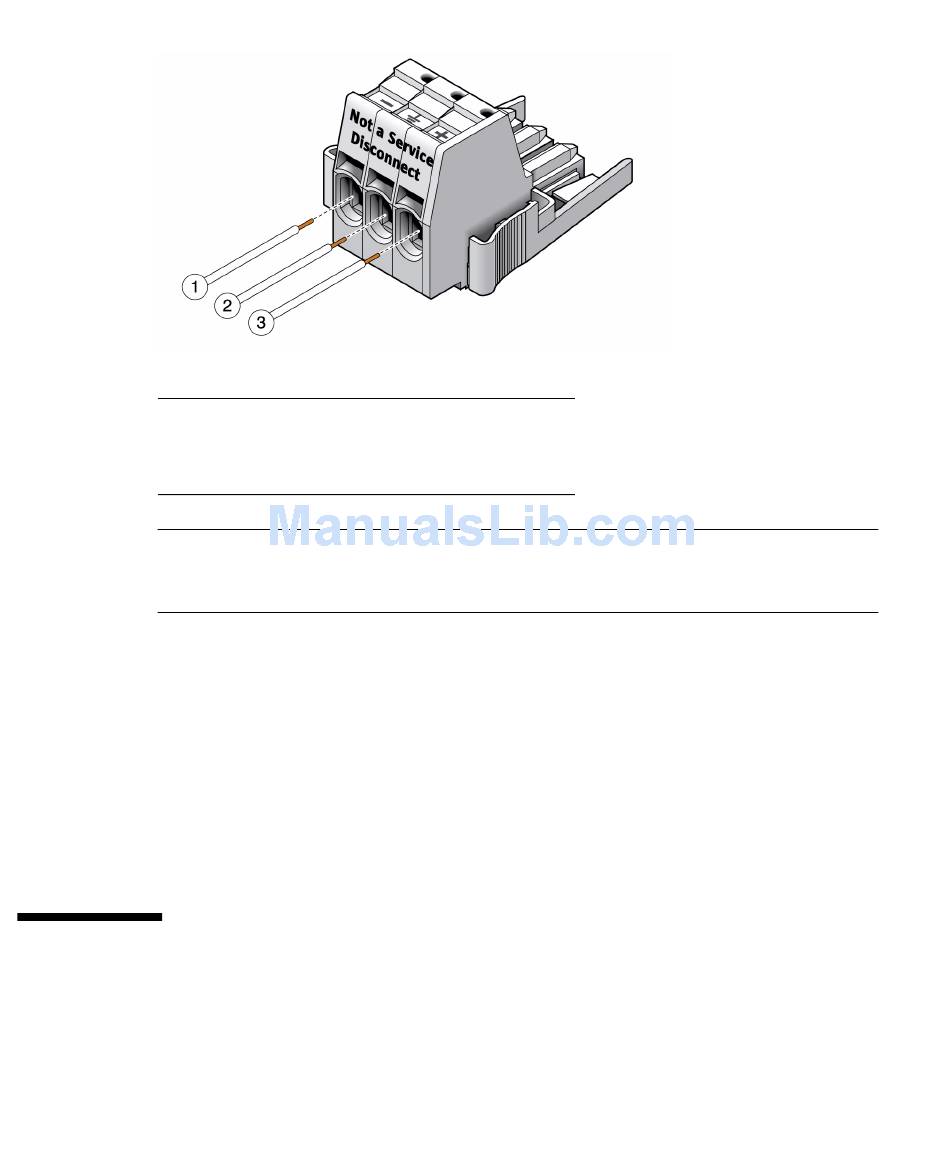

From -48V or -60V
From Chassis ground (green/yellow)
From -48V or -60V Return
