Sun Oracle Netra SPARC T3-1 Installation Manual page 67

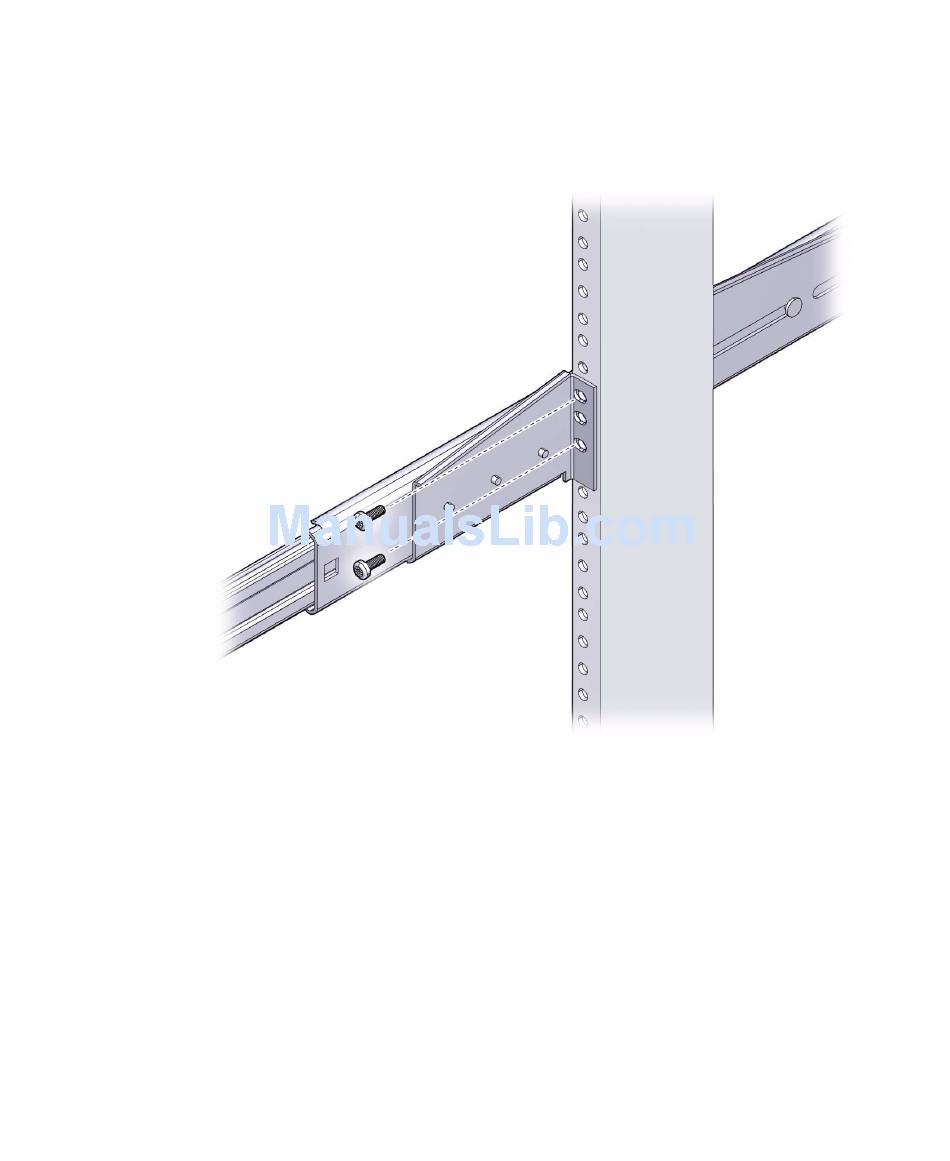

4. Lift each front bracket to the desired position at the front of the rack and attach
a front bracket to each of the front rack posts.
To secure each bracket, use two of the M5 x 12.7 mm screws or two of the
M6 x 13 mm screws. Tighten the screws enough to secure the brackets, but leave
them loose enough for adjustment later.
5. Lift each rear bracket to the desired position at the rear of the rack and attach a
rear bracket to each of the rear rack posts.
To secure each bracket, use two of the M5 x 12.7 mm screws or two of the M6 x 13
mm screws, as you did in
brackets, but leave them loose enough for adjustment later.
Step 4. Tighten the screws enough to secure the
Installing the Server 59
