Pin
Signal Description
2
Transmit/Receive Data 0 -
3
Transmit/Receive Data 1 +
4
Transmit/Receive Data 2 +
Related Information
"Back Panel Connectors and Ports" on page 66
■
"Connect Other Data Cables" on page 69
■

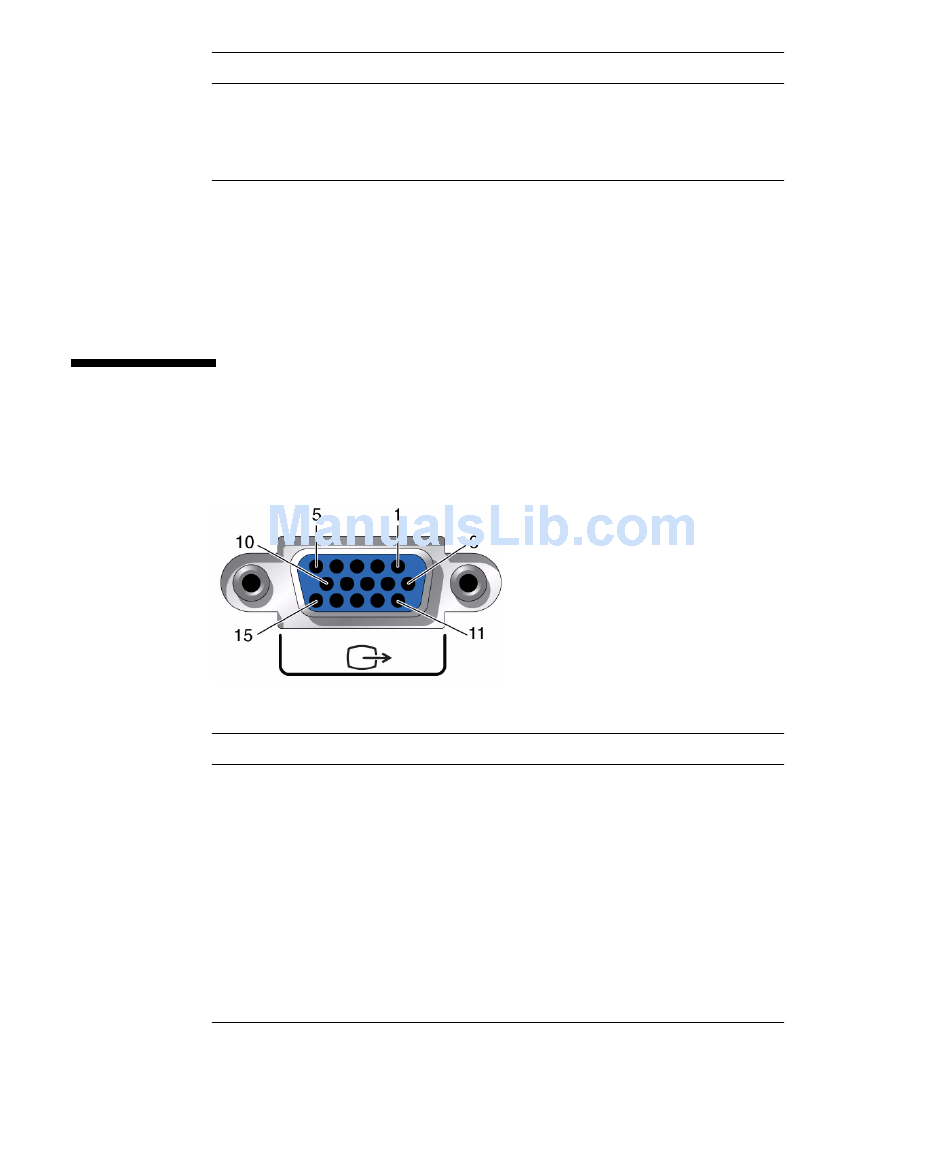

Video Port
The server has one 15-pin VGA video port on the back of the server.
Pin
Signal Description
1
Red Video
2
Green Video
3
Blue Video
4
Monitor ID - Bit 2 (Ground)
5
Ground
6
Red Ground
7
Green Ground
8
Blue Ground
Pin
Signal Description
6
Transmit/Receive Data 1 -
7
Transmit/Receive Data 3 +
8
Transmit/Receive Data 3 -
Pin
Signal Description
9
+5V
10
Sync Ground
11
Monitor ID - Bit 0 (Ground)
12
VGA 12C Serial Data
13
Horizontal Sync
14
Vertical Sync
15
VGA 12C Serial Clock
Identifying the Server Ports
93
