Connect The Ser Mgt Cable - Sun Oracle Netra SPARC T3-1 Installation Manual

No. Connectors and Ports
7 USB ports (USB 0, USB 1)
8 HDB-15 video port
Related Information
"Identifying the Server Ports" on page 89
■
"Back Panel Components" on page 14
■

▼ Connect the SER MGT Cable

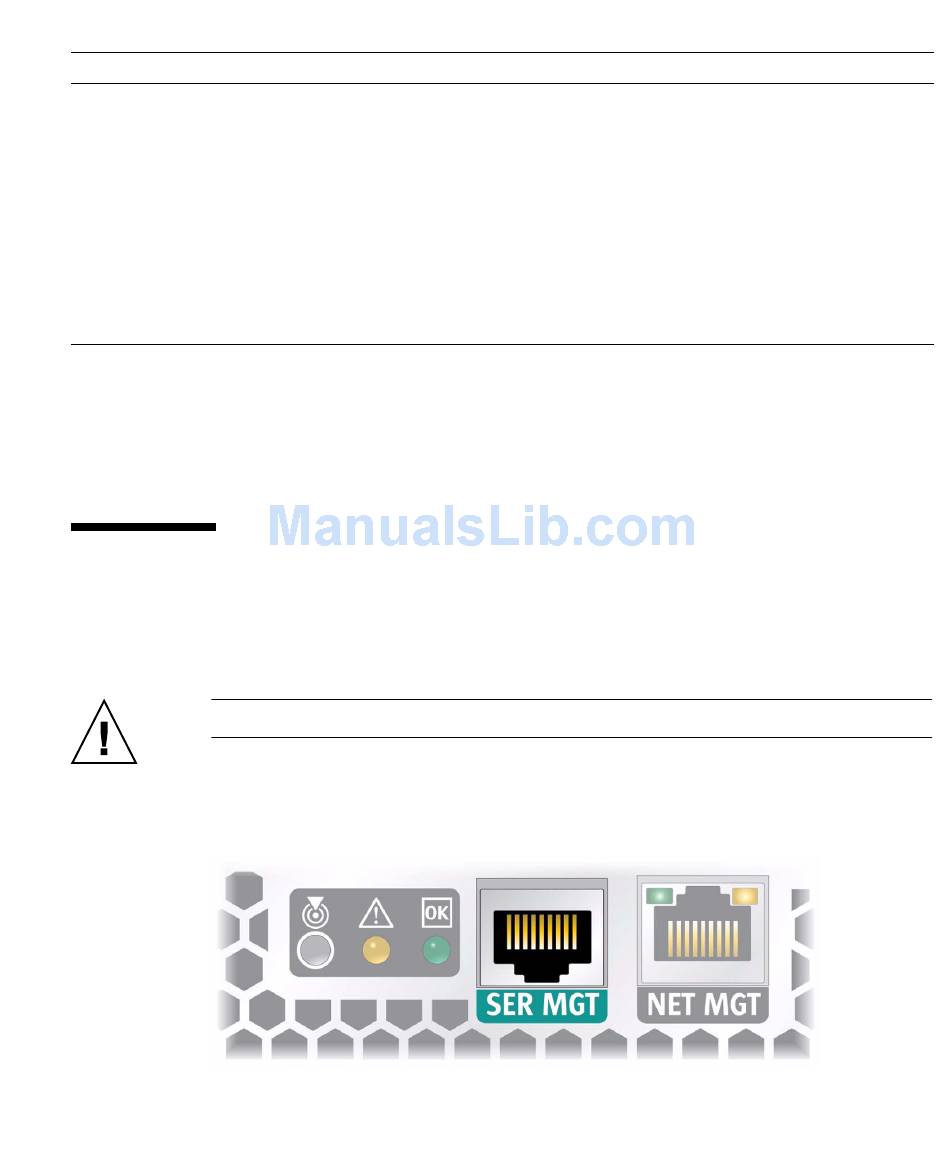

The service processor serial management port is labeled SER MGT. Use the SER MGT
port only for server management.
Caution – Do not attach a modem to this port.
●
Connect a Category 5 (or better) cable from the SER MGT to a terminal device.
When connecting a DB-9 cable, use an adapter to perform the crossovers given for
each connector.
Description
The two USB ports support hot-plugging. You can connect
and disconnect USB cables and peripheral devices while the
server is running, without affecting server operations.
Note - The maximum USB cable length for connecting to the
server's USB ports is 5 mm.
Note - You can connect up to 126 devices to each of the four
USB controllers (two ports in front, two ports in back), for a
total of 504 USB devices per server.
Use a HDB-15 video cable to connect to a video device.
Note - The cable length used to connect between monitor and
the VGA port should not be over 6 meters.
Connecting the Server Cables 67
