Sun Oracle Netra SPARC T3-1 Installation Manual page 45

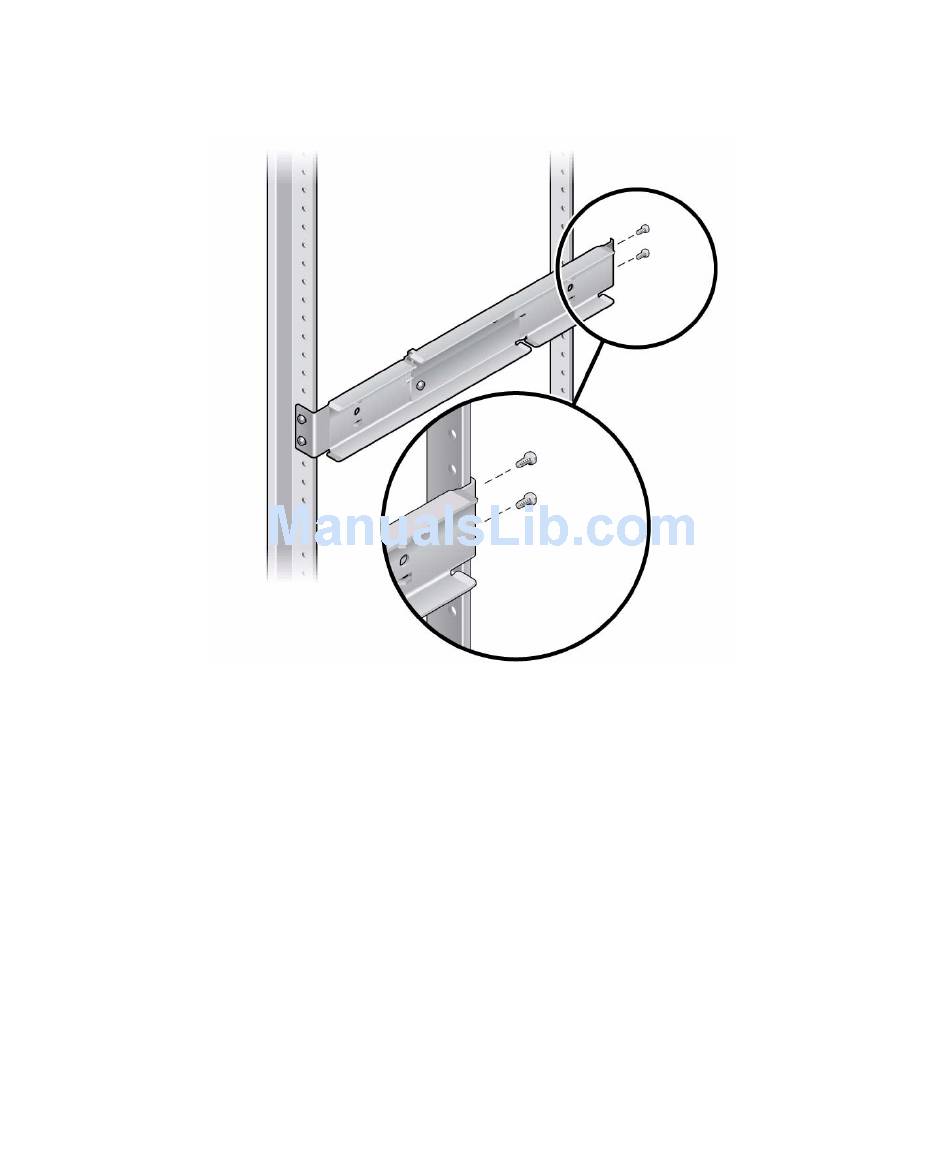

4. At the rear of the rack, use two screws to secure the rear of the adjustable rails
to the rack.
The size of the screws varies, depending on your particular rack.
5. Tighten the two screws at the middle of each adjustable rail.
6. Mount the other adjustable rail into the rack.
Repeat Step 3 through
7. Using one M5 x 7 SEM screw for each rear flange, loosely install the rear flange
onto the rear of each of the adjustable rails.
Do not completely secure the rear flanges to the adjustable rails. You will use these
flanges to set the rack depth for the server in a later step.
Step 5.
Installing the Server 37
