9. Mount the slide on the other side of the rack.
Repeat
10. Push the slides completely into the assembly on each side of the rack and
release the stop catches.
11. Align the glides attached to the server with the slide assemblies in the rack.
You might find that there is too much or too little room between the two slides
mounted in the rack. Consequently, the glides attached to the server might not
align correctly with the slides in the rack. If either situation occurs, loosen the M6
collar screws and cage nuts on the long and short brackets
move the brackets inward or outward to the appropriate points, then tighten the
screws and cage nuts again.
12. Push in the slide buttons and slide the server all the way into the rack
enclosure.
32 Netra SPARC T3-1 Server Installation Guide • August 2013

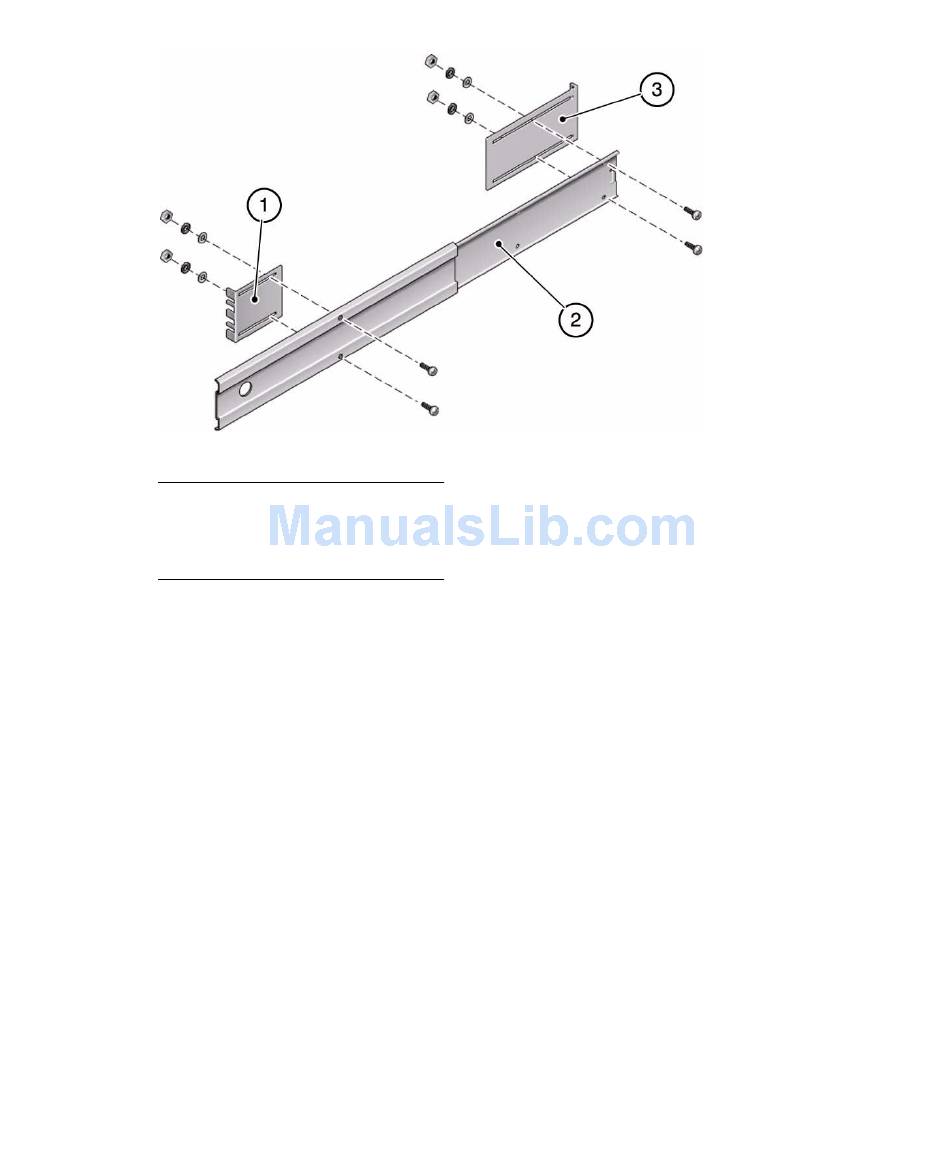

Short bracket
Slide
Long bracket
Step 7 and Step 8.
(Step 5 and Step 6),
