▼ Connect the Ethernet Network Cables

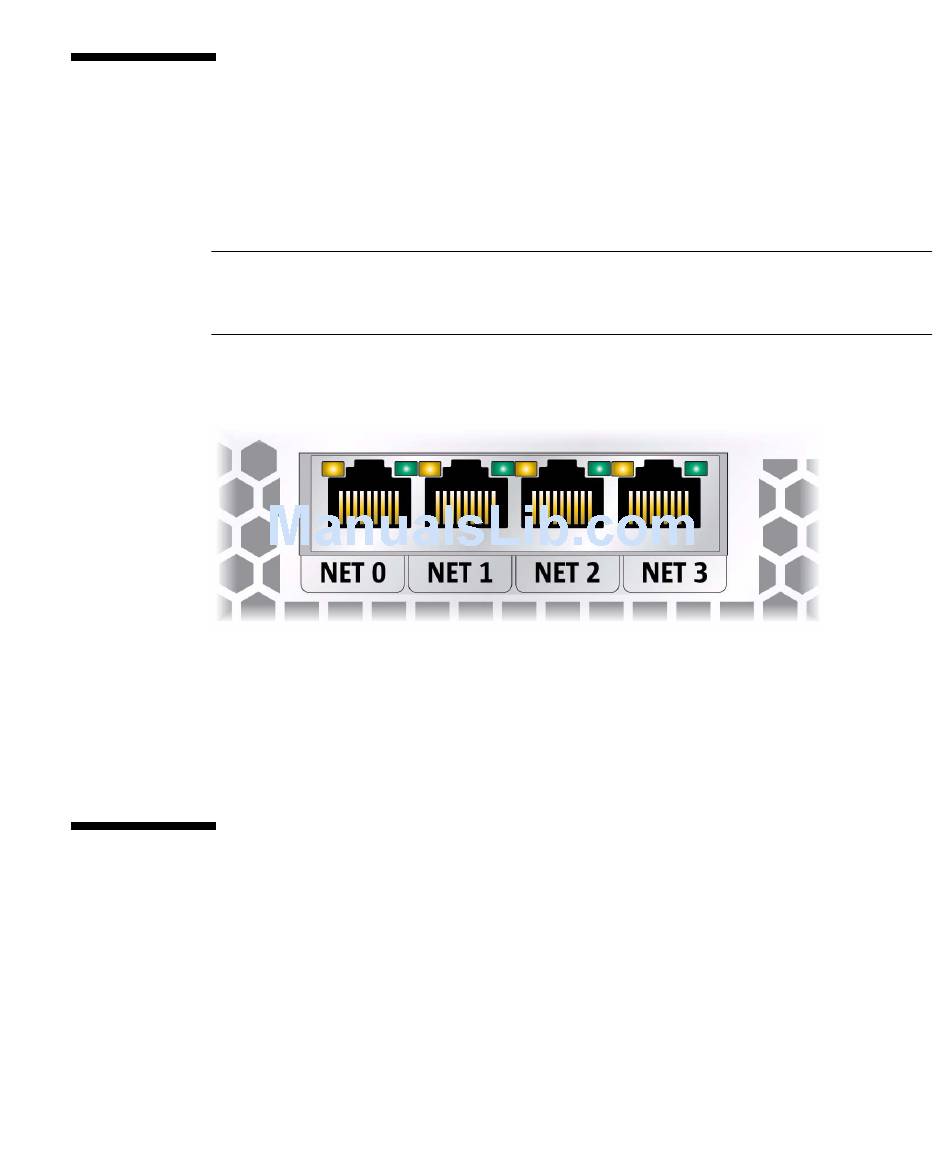

The server has four Gigabit Ethernet network connectors, marked NET0, NET1,
NET2, and NET3. Use these ports to connect the server to the network. The Ethernet
interfaces operate at 10 Mbps, 100 Mbps, and 1000 Mbps.
Note – The ILOM sideband management feature enables you to access the SP using
one of these Ethernet ports. Refer to Netra SPARC T3-1 Server Administration Guide for
instructions.
1. Connect a Category 5 (or better) cable from your network switch or hub to
Ethernet Port 0 (NET0) on the rear of the chassis.
2. Connect Category 5 (or better) cables from your network switch or hub to the
remaining Ethernet ports (NET1, NET2, NET3), as needed.
Related Information
"Powering On the Server for the First Time" on page 77
■

▼ Connect Other Data Cables

If your server includes optional PCIe cards, connect the appropriate I/O cables to
their connectors.
●
If your server configuration includes optional PCIe cards, connect the
appropriate I/O cables to their connectors.
Refer to the PCIe card documentation for specific instructions.
Connecting the Server Cables 69
