▼ Connect the NET MGT Cable

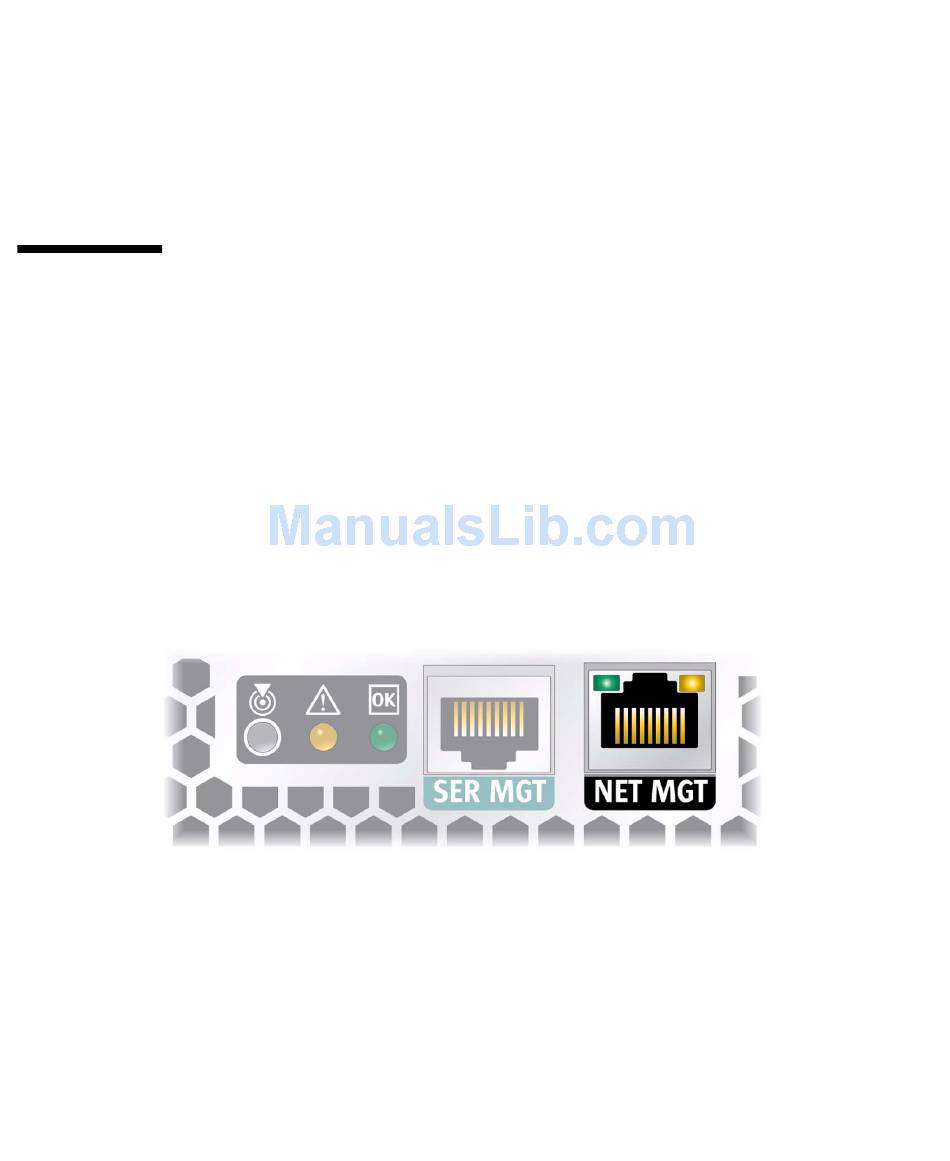

The service processor network management port is labeled NET MGT. After the
initial server configuration, you can connect to the service processor over an Ethernet
network using this NET MGT port.
If your network uses a DHCP server to assign IP addresses, the DHCP server will
assign an IP address to this NET MGT port. With this IP address, you can connect to
the service processor using an SSH connection. If your network does not use DHCP,
this NET MGT port will not be accessible until you configure the network settings
through the SER MGT port. For instructions, see
Port" on page 85
●
Connect a Category 5 (or better) cable from the NET MGT port to your network
switch or hub.
Related Information
"Connect the Ethernet Network Cables" on page 69
■
"Connect the SER MGT Cable" on page 67
■
"Connect Other Data Cables" on page 69
■
