▼ Assemble the DC Power Cords
Assemble one DC input power cable for each DC power supply in your server.
1. Install a DC power source that meets the server's input power specifications.
See
2. Secure DC power cables that meet the server's power cabling specifications.
See
page
3. Turn off power from the DC power source using the circuit breakers.
Caution – Before proceeding with these instructions, turn off the power from the DC
power source through the circuit breakers.
4. Identify the parts that you will use to assemble the DC input power cables.

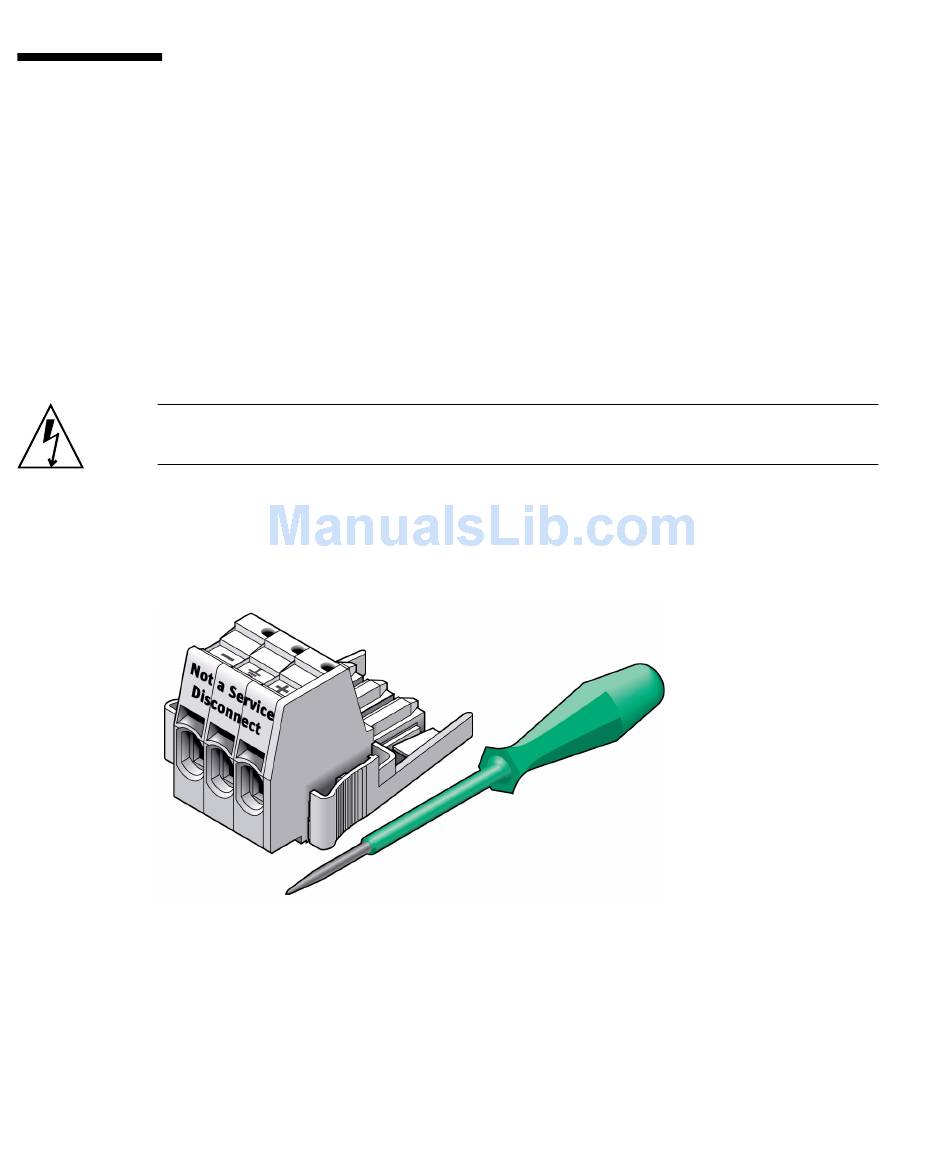

For each cable, you need a Wago DC input plug, and a cage clamp tool or small
screwdriver. These items are provided in the shipping kit that came with your
server. See
5. Locate the three wires coming from your DC power source that will be used in
the connection to your unit.
■
■
■
80
Netra SPARC T4-1 Server Installation Guide • January 2013
"Input Power Information" on page
"DC Power Source, Power Connection, and Grounding Requirements" on
13.
"Shipping Kit" on page
-48V or -60V (negative terminal)
Chassis ground
-48V or -60V Return (positive terminal)
11.
19.
