EPSON AcuLaser CX11/CX11F

FIP-P17 Entirely Faint

Before starting troubleshooting, inspect the feed path of the printer paper. Check the
paper feed path for metal staples, paper clips, paper scraps, and other foreign matter.
Step Check
Check the connectors for LV/HVPS.
1
Make sure that the connector (P/J509) on LV/
HVPS and the connector (P/J510) on DEVE are
connected properly.
Print the problem image. Or, execute the test
print.
Was the trouble fixed?
TROUBLESHOOTING
Problems
The color over the entire surface is faint. This
occurs due to disconnection of connector (C)
from LV/HVPS.
ESS and possible parts that caused the error
WIRE ASSY DEVE
LV/HVPS
Yes No
End of procedure Replace "ESS and
possible parts that
caused the error".

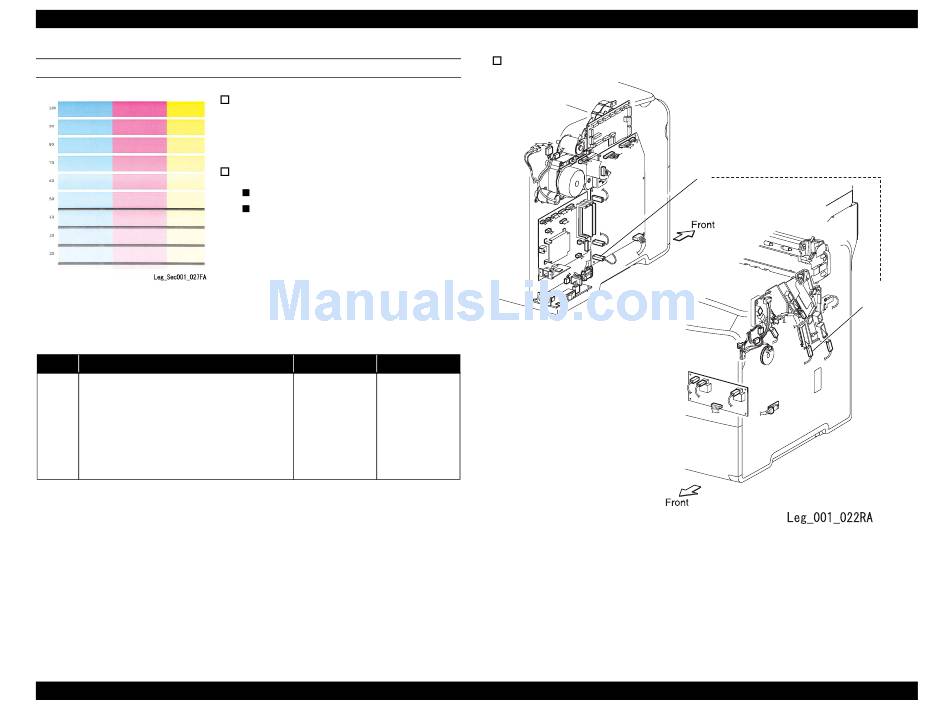

Connecting location of the connectors
Printer
manuals4you.com manuals4you.com
Revision B
C
P/J510
(DEVE)
