Removing and Installing the SP Module (CRU)
"How to Install the SP Module" on page 60
See Also ■
▼
How to Install the SP Module
See:
Before You Begin
"Locations of Internal Server Components" on page 30
■
"How to Remove the SP Module" on page 59
■

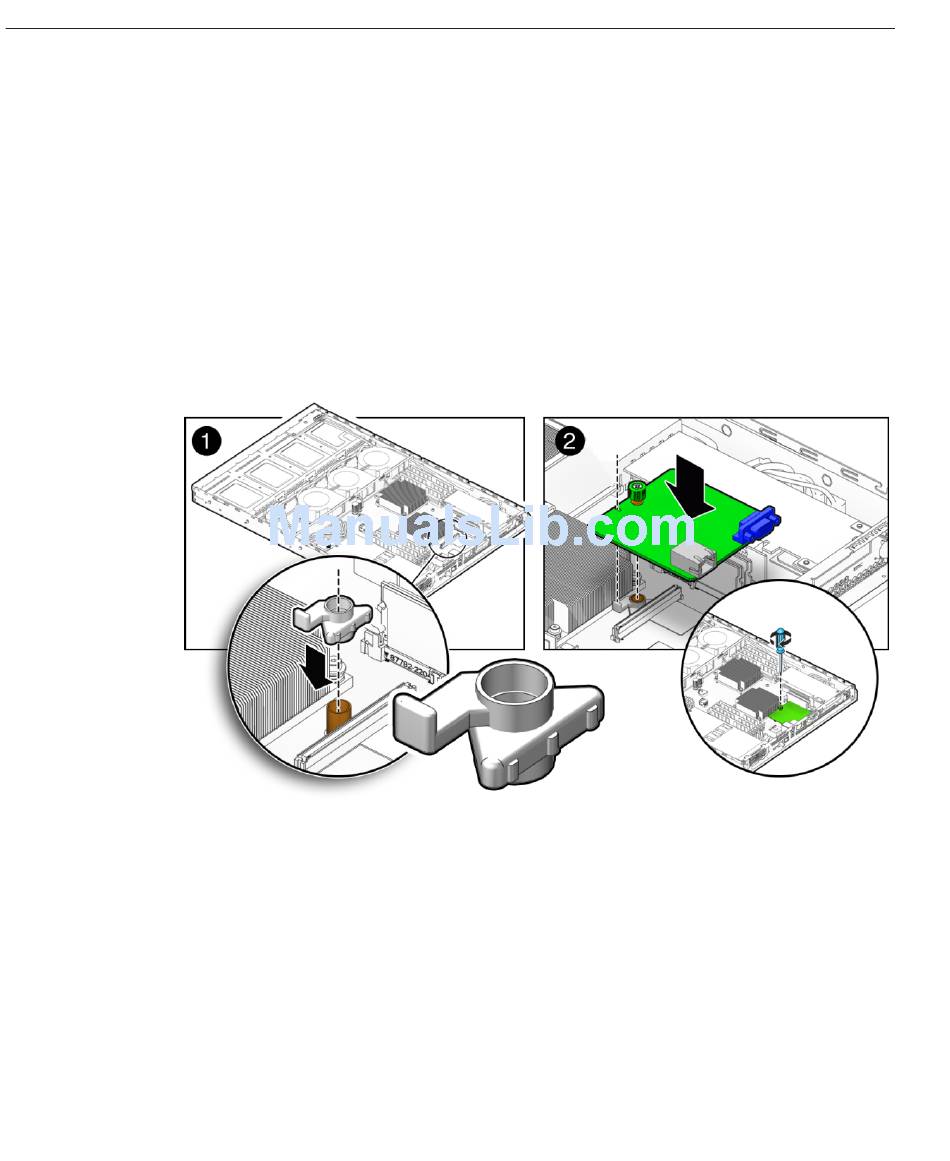

Slide the SP module alignment pin over the screw post before installing the SP module.
1
The SP module alignment pin is designed to help align the SP module with the card connector.
The SP module alignment pin is shipped with the SP module.
Position the SP module so the card's RJ-45 and HD15 connectors face the rear of the server.
2
Align connectors on the SP board with the openings in the rear panel of the server chassis.
3
Use the alignment pin to align the connector on the SP module with the connector on the
4
motherboard.
Gently push down on the SP module to engage the connector on the module with the connector
5
on the motherboard.
Tighten the captive screw to secure the SP module.
6
