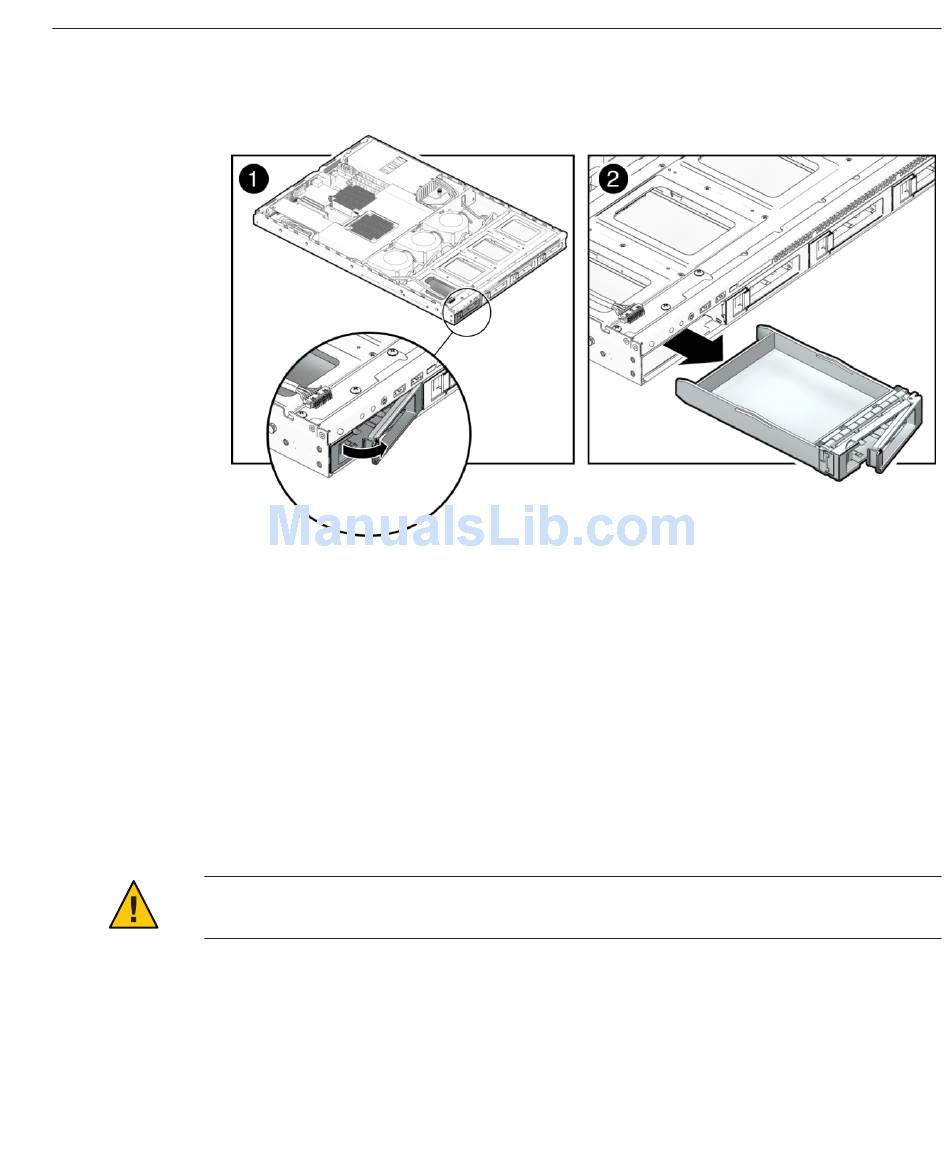

For the drive slot in which you want to install a removable hard drive, rotate the release lever on
1
the front of the filler to disengage the hook and extend the handle.
Use the handle to pull the filler out of the slot.
2
"How to Install a Removable Hard Drive Assembly" on page 51
Next Steps
"How to Install a Hard Drive Filler" on page 49
See Also ■
"How To Remove a Removable Hard Drive Assembly" on page 50
■
"How to Install a Removable Hard Drive Assembly" on page 51
■
▼
How to Install a Hard Drive Filler
Thermal over-temperature potential. Do not operate the server without all drive slots
Caution –
populated with either a drive or a filler.
If your server contains a filler panel, remove the filler panel before installing a hard drive.
Prepare the server for service. See
1
Rotate the release lever on the front of the filler to disengage the hook and extend the handle.
2
Removing and Installing a Hard Drive Filler and Hard Drive Assembly (CRU)
"How to Prepare for Service"on page 21.
