Oracle Sun Fire X2270 M2 Service Manual page 56

Replacing the Hard Drive Backplane Assembly (FRU)

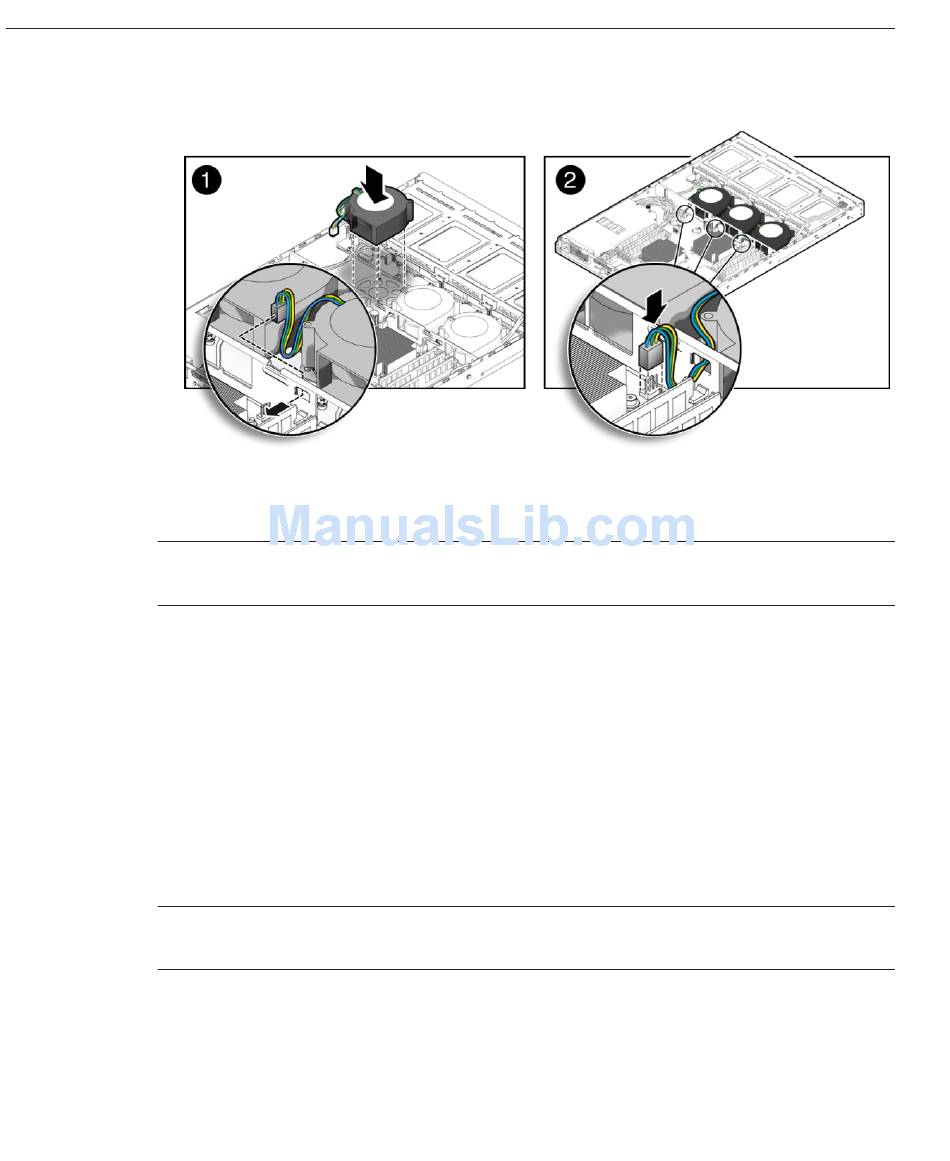

Position the blower module so that it fits over the guideposts and the duct opening fits into the
1
cutouts in the chassis divider.
Gently push the blower module down while directing the connector cable through the cutout in
2
the chassis divider, until the blower is seated on the guideposts.
Note –
chassis divider and not through the blower exhaust opening.
Connect the blower power connector to the blower power connector on the motherboard.
3
Prepare the server for operation. See
4
"How to Remove a Blower Module" on page 54
See Also ■
"Replacing a Blower Module (CRU)" on page 54
■
Replacing the Hard Drive Backplane Assembly (FRU)
Note –
certified Oracle Service Technician.
This section contains the following topics:
"How to Remove the Hard Drive Backplane" on page 57
■
"How to Install the Hard Drive Backplane" on page 58
■
56 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
Ensure that the connector cable has been directed through the connector opening in the
The hard drive backplane assembly is a field-replaceable unit. It must be replaced by a
"How to Prepare for Operation"on page 26.
