Oracle Sun Fire X2270 M2 Service Manual page 43

Remove the air duct. See
2

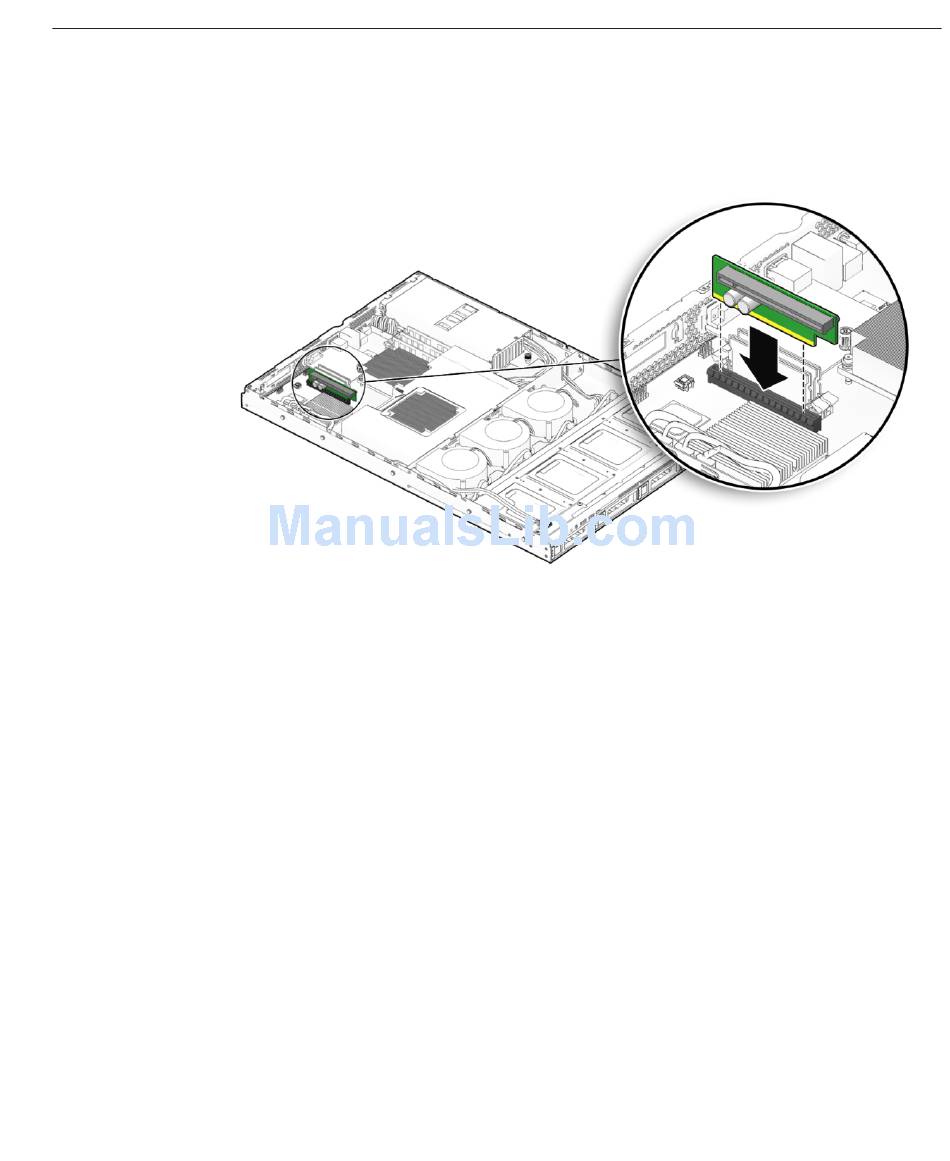

Align the riser card in the PCIe slot on the motherboard.
3
To install the riser card, gently push the card downward into the slot.
4
If you are installing a PCIe card, see
5
Install the air duct. See
6
Prepare the server for operation. See
7
"How to Remove the PCIe Riser" on page 44
See Also ■
"Removing and Installing a PCIe Card (CRU)" on page 40
■
"How to Remove the Air Duct"on page
"How to Install a PCIe Card"on page
"How to Install the Air Duct"on page
"How to Prepare for Operation"on page
Removing and Installing the PCIe Riser (CRU)
53.
41.
53.
26.
43
