Replacing a Blower Module (CRU)

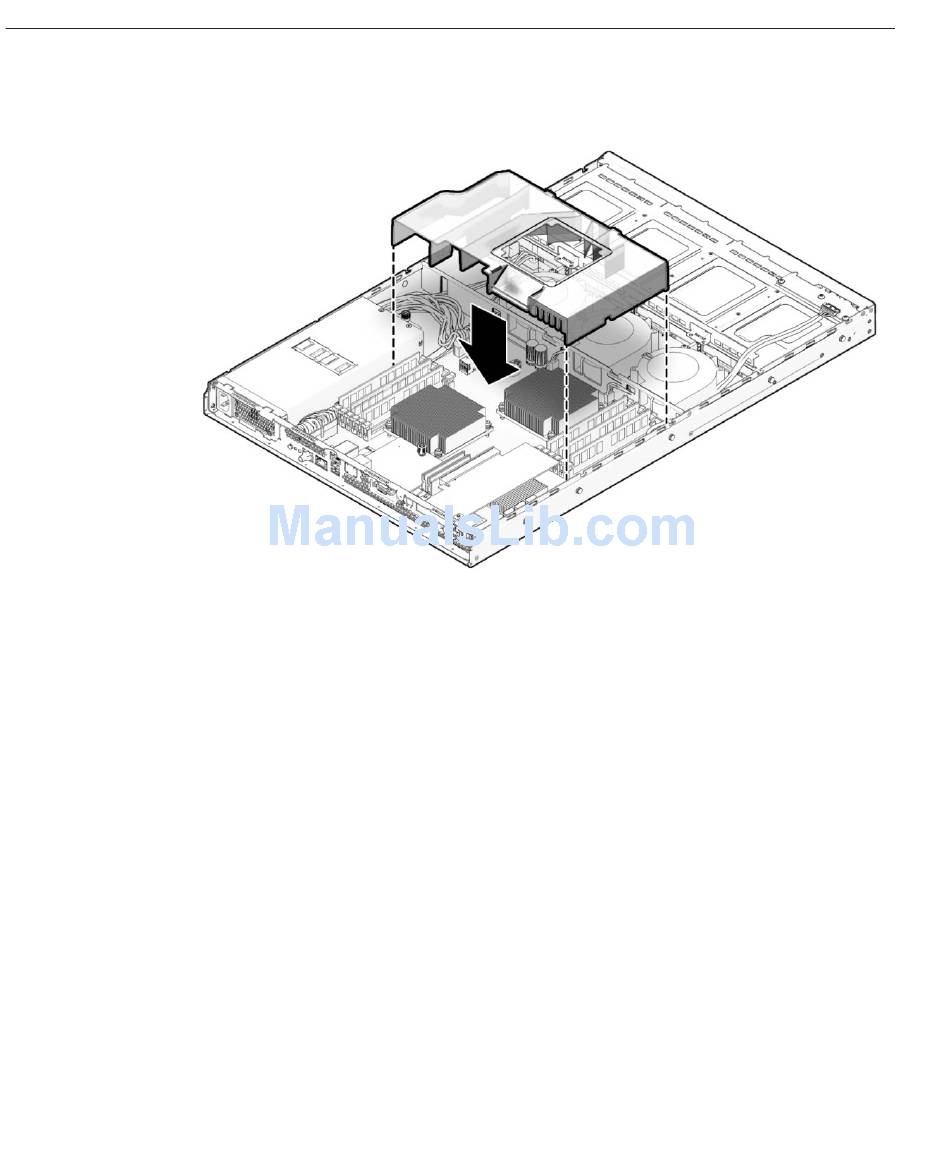

Position the air duct in the chassis, aligning the baffle with the indents and opening in the
1
chassis divider.
Carefully lower the air duct in place.
2
Prepare the server for operation. See
3
"How to Remove the Air Duct" on page 53
See Also ■
Replacing a Blower Module (CRU)
The following procedures describe how to replace a blower module. The X2270 server contains
three blower modules.
"How to Remove a Blower Module" on page 54
■
"How to Install a Blower Module" on page 55
■
▼
How to Remove a Blower Module
See:
Before You Begin
"Sun Fire X2270 M2 Server Internal Cabling" on page 61
■
"Locations of Internal Server Components" on page 30
■
54 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
"How to Prepare for Operation"on page 26.
