Removing and Installing a PCIe Card (CRU)
Removing and Installing a PCIe Card (CRU)
This section contains the following topics:
"How to Remove a PCIe Card" on page 40
■
"How to Install a PCIe Card" on page 41
■
▼
How to Remove a PCIe Card
See:
Before You Begin
"Locations of Internal Server Components" on page 30
Prepare the server for service. See
1
Remove the air duct. See
2
Disconnect any cables connected to the PCIe card.
3

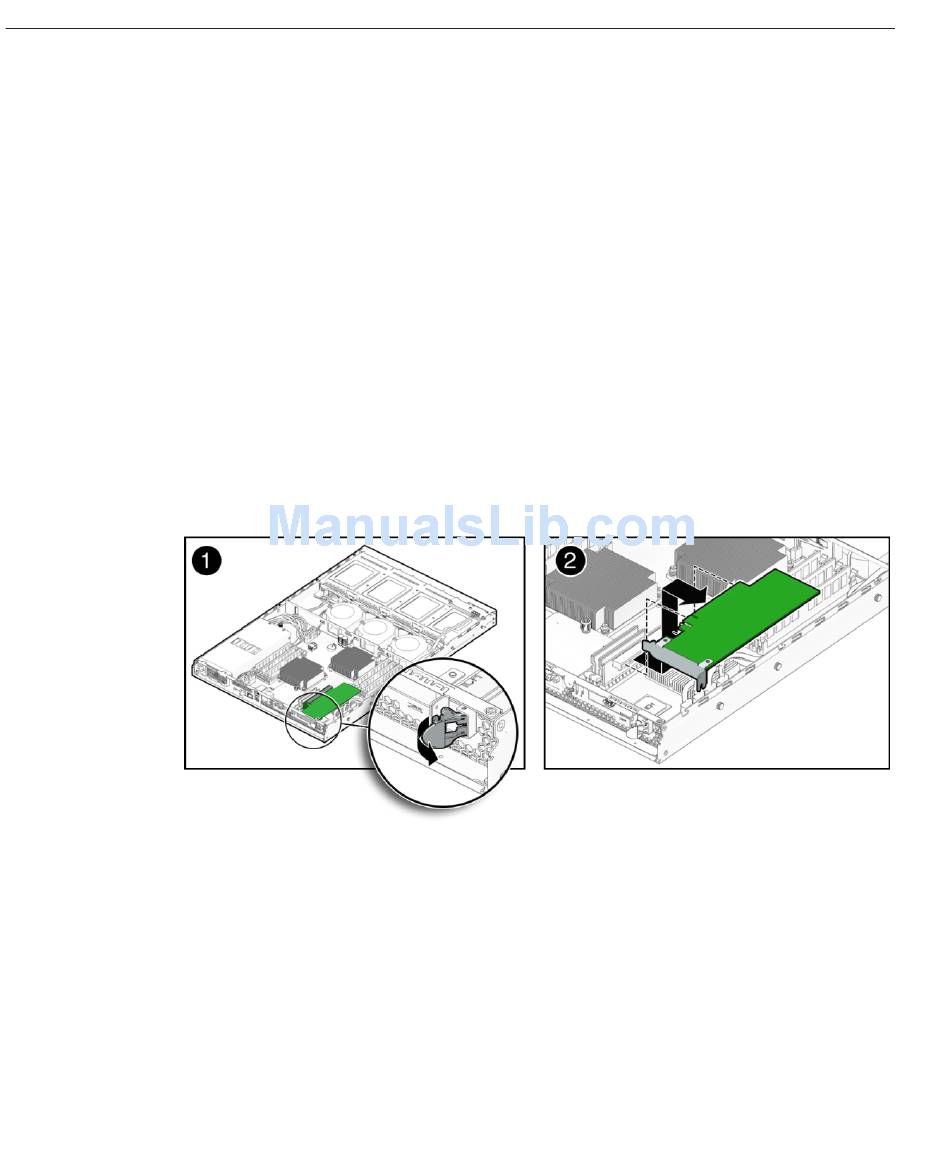

To unlock the PCIe card, open the locking latch on the server rear panel.
4
To remove the PCIe card from the server, slide the card out of the server rear panel and
5
disconnect the card from the PCIe riser.
Remove any card-specific cabling from the server.
6
Install the air duct. See
7
Prepare the server for operation. See
8
"How to Install a PCIe Card" on page 41
■
See Also
