"Removing and Installing a PCIe Card (CRU)" on page 40
■
▼
How to Install a PCIe Card
See:
Before You Begin
"Locations of Internal Server Components" on page
Prepare the server for service. See
1
Remove the air duct. See
2

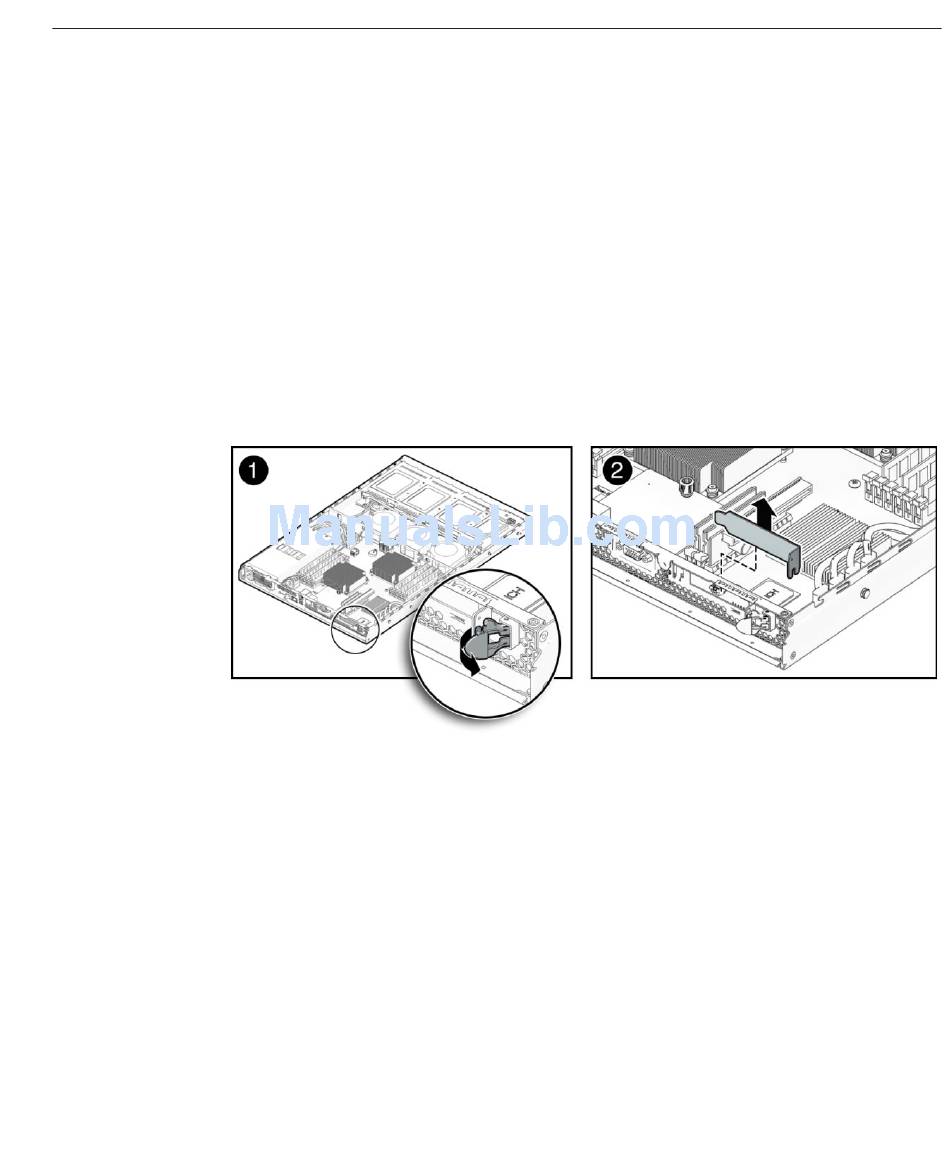

If necessary, pull open the locking latch on the rear panel of the server to unlock the PCIe filler
3
panel.
Remove the filler panel by lifting it straight up and out of the server.
4
If a PCIe riser is not already installed in the server, install a PCIe riser. See
5
Riser"on page
The PCIe riser is a low-profile, half-length x16 connector card.
"How to Prepare for Service"on page
"How to Remove the Air Duct"on page
42.
Removing and Installing a PCIe Card (CRU)
30.
21.
53.
"How to Install the PCIe
