Removing and Installing the PCIe Riser (CRU)

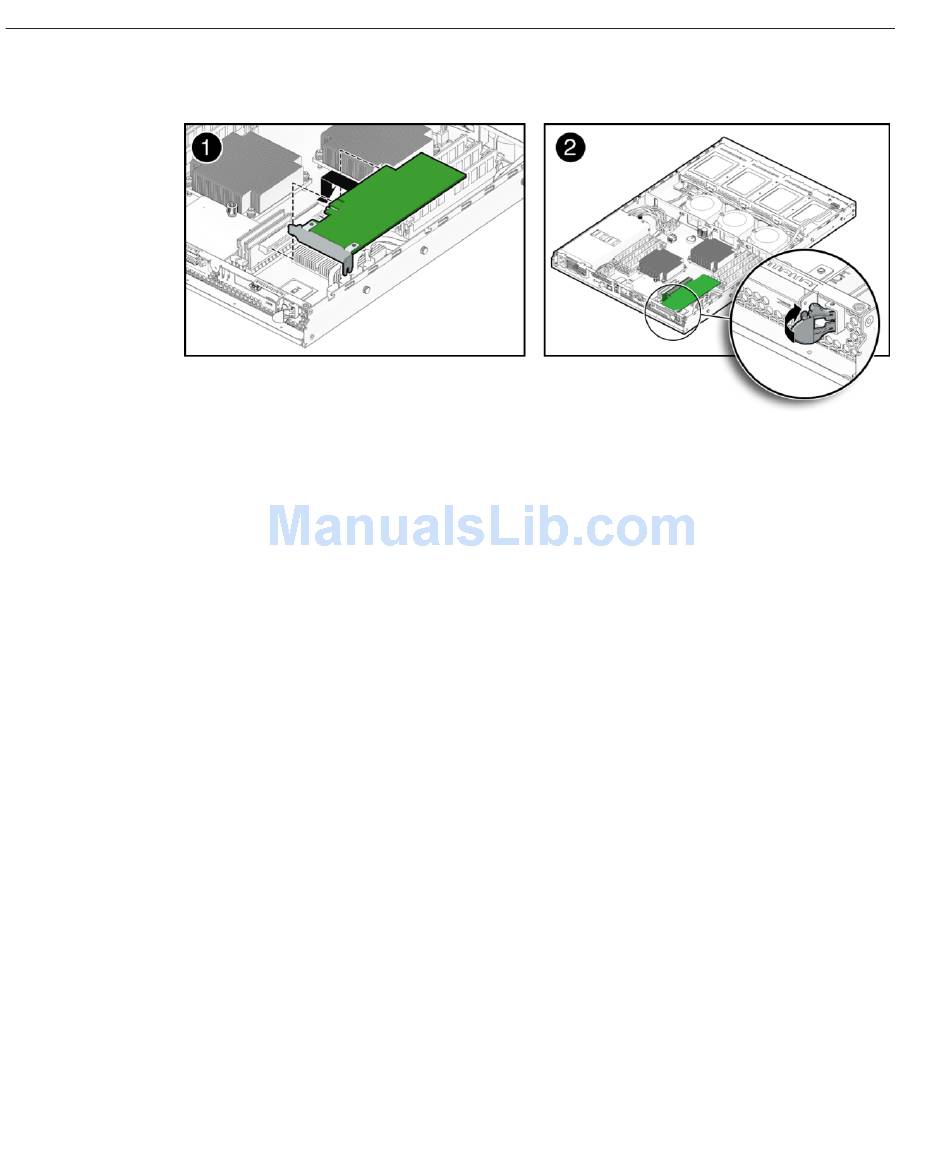

Slide the new PCIe card into the PCIe slot on the rear panel of the server and connect the card to
6
the PCIe riser.
To lock the PCIe card, push to close the locking latch on the rear panel of the server.
7
Attach any required internal cabling to the card.
8
Install the air duct. See
9
Prepare the server for operation. See
10
"How to Remove a PCIe Card" on page 40
See Also ■
"Removing and Installing a PCIe Card (CRU)" on page 40
■
Removing and Installing the PCIe Riser (CRU)
The PCIe riser installed in the server is a low-profile, half-length x16 connector card, supporting
up to 35–watt cards.
"How to Install the PCIe Riser" on page 42
■
"How to Remove the PCIe Riser" on page 44
■
▼
How to Install the PCIe Riser
See:
Before You Begin
"Locations of Internal Server Components" on page
Prepare the server for service. See
1
42 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
"How to Install the Air Duct"on page
"How to Prepare for Operation"on page
"How to Prepare for Service"on page
53.
30.
21.
26.
