Removing and Installing the Air Duct (CRU)

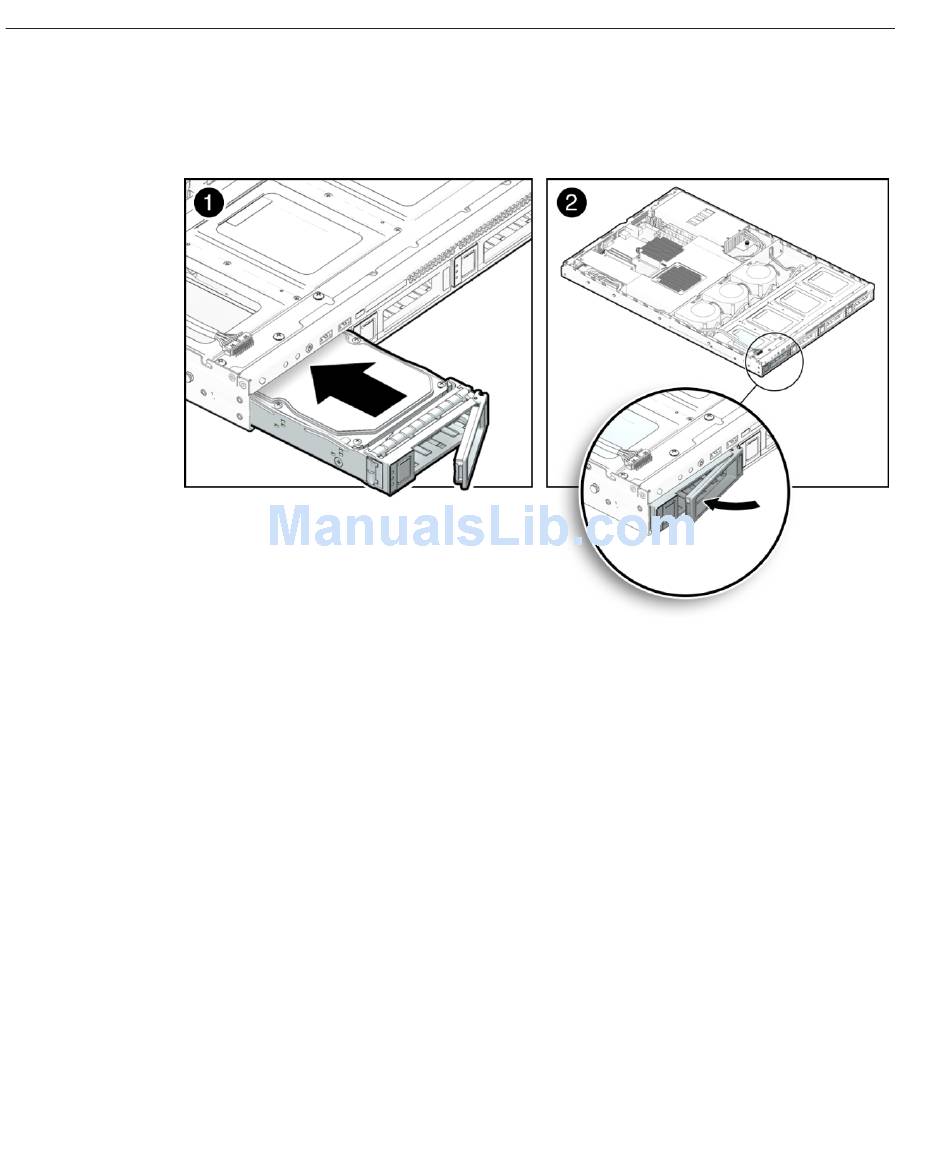

Ensure that the latch on the hard drive assembly is in the fully open position.
2
To open the latch, press the latch release button on the front of the assembly.
Slide the drive into the drive slot until it is fully seated and flush with the front of the server.
3
Close the latch.
4
Power on the server. See
5
"How to Remove a Hard Drive Filler" on page 48
See Also ■
"How to Install a Hard Drive Filler" on page 49
■
"How To Remove a Removable Hard Drive Assembly" on page 50
■
Removing and Installing the Air Duct (CRU)
This section contains the following topics:
"How to Remove the Air Duct" on page 53
■
"How to Install the Air Duct" on page 53
■
52 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
"How to Power On the Server"on page 28.
