How to Install the Power Supply

See:

Before You Begin

"How to Remove the Power Supply" on page

■

"Sun Fire X2270 M2 Server Internal Cabling" on page

■

"Locations of Internal Server Components" on page 30

■

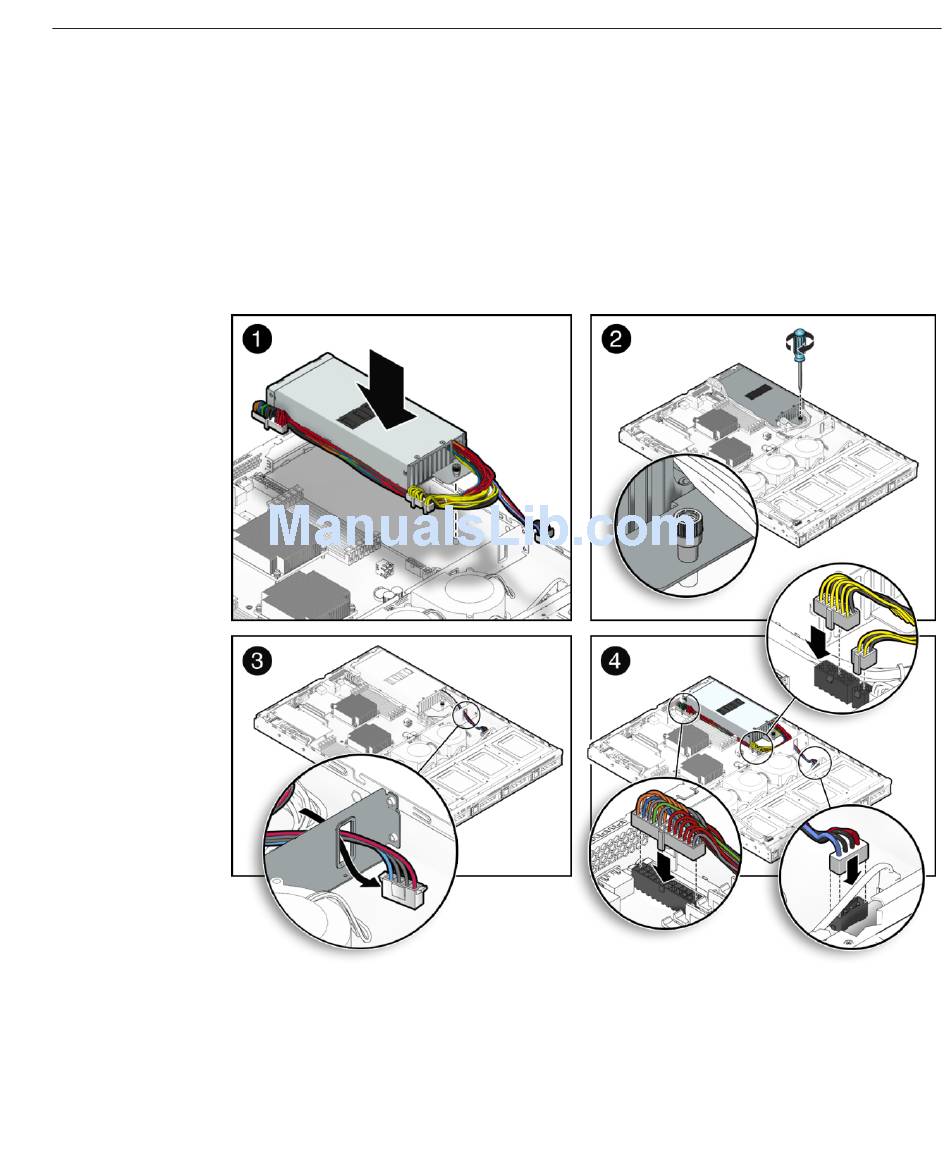

Reference the following illustration for this procedure.

Note the numbered panels.

Insert the power supply into the chassis with the cable bundle toward the front of the server (1).

To secure the power supply to the chassis, fully tighten the captive screw (2).

Removing and Installing a Power Supply (CRU)

45.

61.
