Oracle Sun Fire X2270 M2 Service Manual page 25

"How to Prepare for Operation" on page 26
Next Steps
"Rear Panel Features and Components" on page 16
See Also
▼

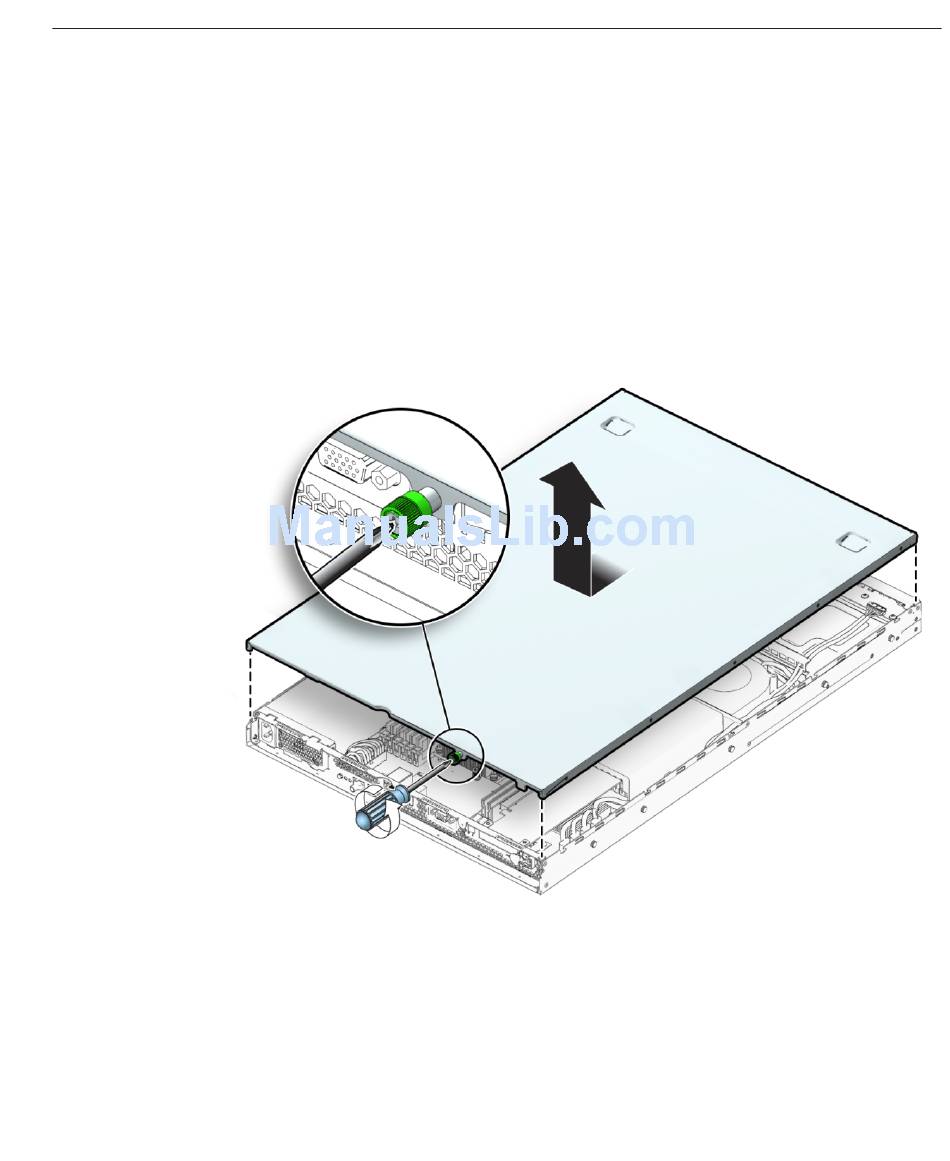

How to Remove the Server Cover
Prepare the server for service. See
1
Loosen the captive screw that secures the cover to the chassis.
2
If necessary, use a screwdriver to loosen the screw.
Pull the cover slightly toward the rear of the server until it stops (approximately .5 inch).
3
Lift the cover and remove it.
4
"Component Replacement Procedures and Topic" on page 29
See Also
"How to Prepare for Service"on page
Tools and Supplies Needed
21.
25
