Removing and Installing the PCIe Riser (CRU)
▼
How to Remove the PCIe Riser
See:
Before You Begin
"Locations of Internal Server Components" on page
Prepare the server for service. See
1
Remove the air duct. See
2
If a PCIe card is connected to the PCIe riser, remove the PCIe card. See
3
Card"on page

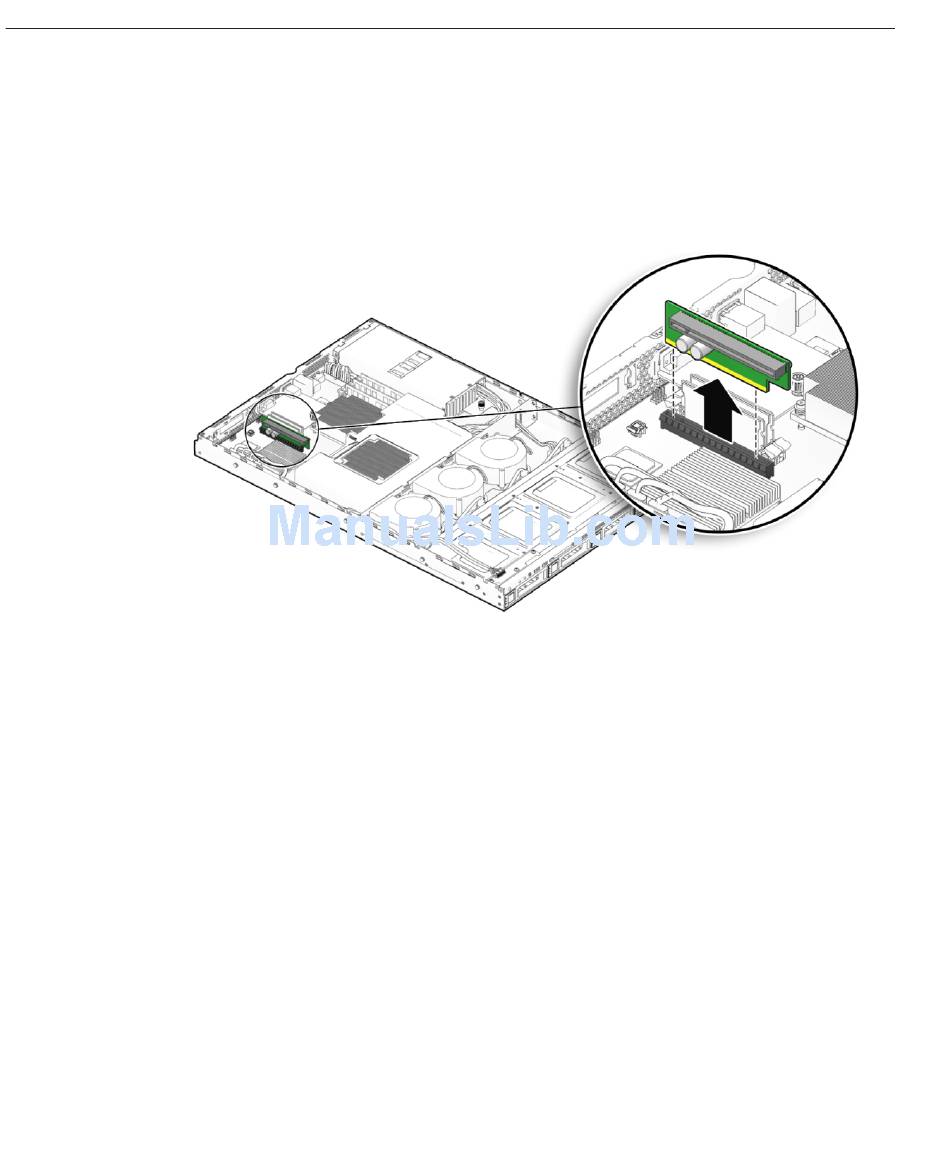

Pull the PCIe riser upward to disengage the riser card from the connector on the motherboard.
4
Install the air duct. See
5
Prepare the server for operation. See
6
"How to Install the PCIe Riser" on page 42
See Also ■
"Removing and Installing a PCIe Card (CRU)" on page 40
■
44 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
"How to Prepare for Service"on page
"How to Remove the Air Duct"on page
40.
"How to Install the Air Duct"on page
"How to Prepare for Operation"on page
30.
21.
53.
"How to Remove a PCIe
53.
26.
