Replacing the Hard Drive Backplane Assembly (FRU)
▼
How to Install the Hard Drive Backplane
See:
Before You Begin
"Locations of Internal Server Components" on page 30
■
"Sun Fire X2270 M2 Server Internal Cabling" on page 61
■

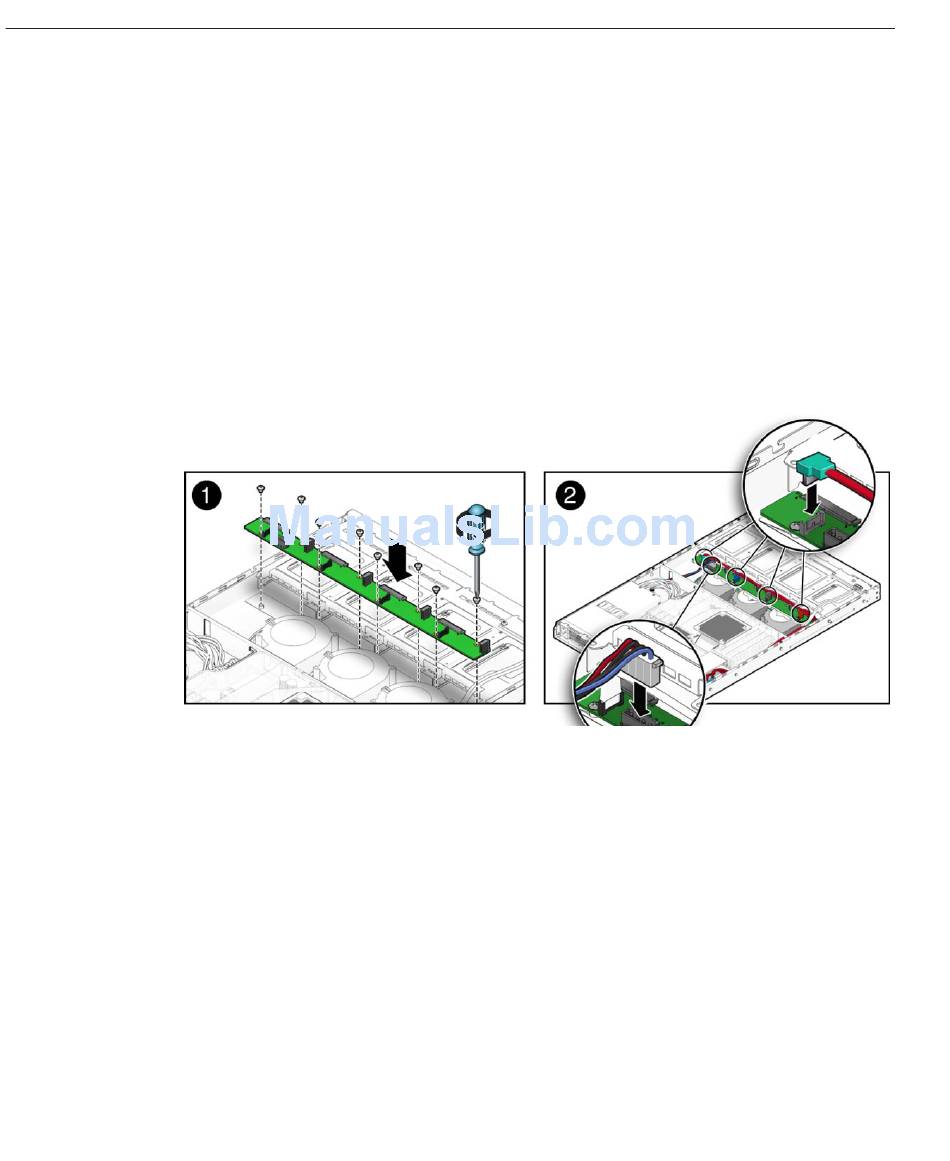

Position the backplane board in the server chassis with the SATA connectors facing upward and
1
align the eight screw holes in the backplane with the threaded standoffs in the server chassis.
To secure the backplane to the server chassis, fully tighten the eight screws.
2
Connect the HD/SSD power cable and four SATA cables to the backplane.
3
Take care to route the cables properly.
Install all HD/SSDs. See
4
Install the air duct. See
5
Prepare the server for operation. See
6
"How to Remove the Hard Drive Backplane" on page 57
See Also
58 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
"How to Install a Removable Hard Drive Assembly"on page
"How to Install the Air Duct"on page
"How to Prepare for Operation"on page
51.
53.
26.
