Front and Rear External Features and Components
This section shows the locations of external features and components of both the front and rear
of the Sun Fire X2270 M2 Server.
"Front Panel Features and Components" on page 15
■
"Rear Panel Features and Components" on page 16
■

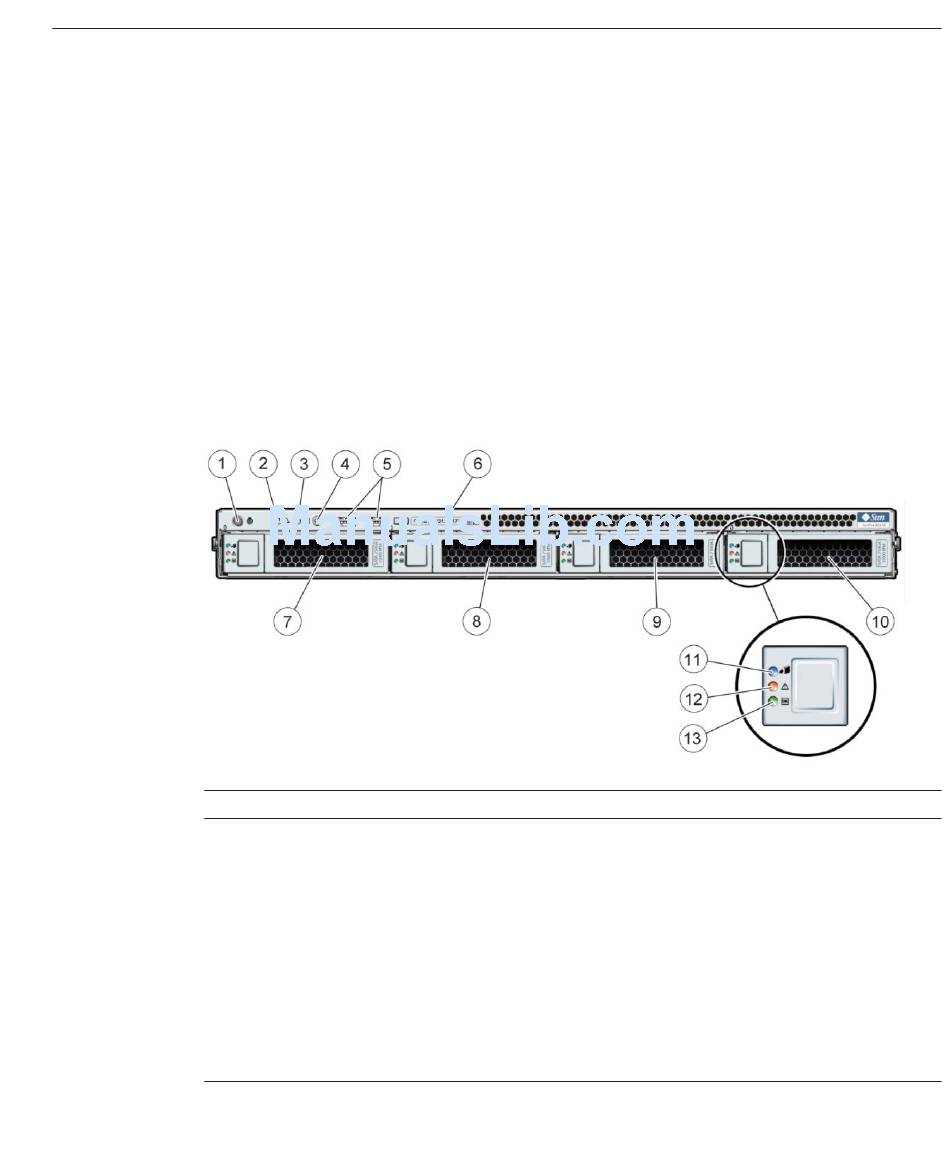

Front Panel Features and Components
Legend
1
3
5
7
9
11 Disk Ready-to-Remove LED
13 Green Disk OK read and write activity LED
White Locate LED/button
Green Power Status LED
USB 2.0 ports (2)
Optional removable SATA HD/SSD 1
Optional removable SATA HD/SSD 3
(non-operational)
Front Panel Features and Components
2
Amber Service Action Required LED
4
Power button
6
Server serial number
8
Optional removable SATA HD/SSD 2
10 Optional removable SATA HD/SSD 4
12 Disk Service Action Required LED (non-operational)
