Oracle Sun Fire X2270 M2 Service Manual page 30

Locations of Internal Server Components
Component Designations
Hard drive backplane assembly
Front I/O board
CPU and heatsink assembly
Motherboard

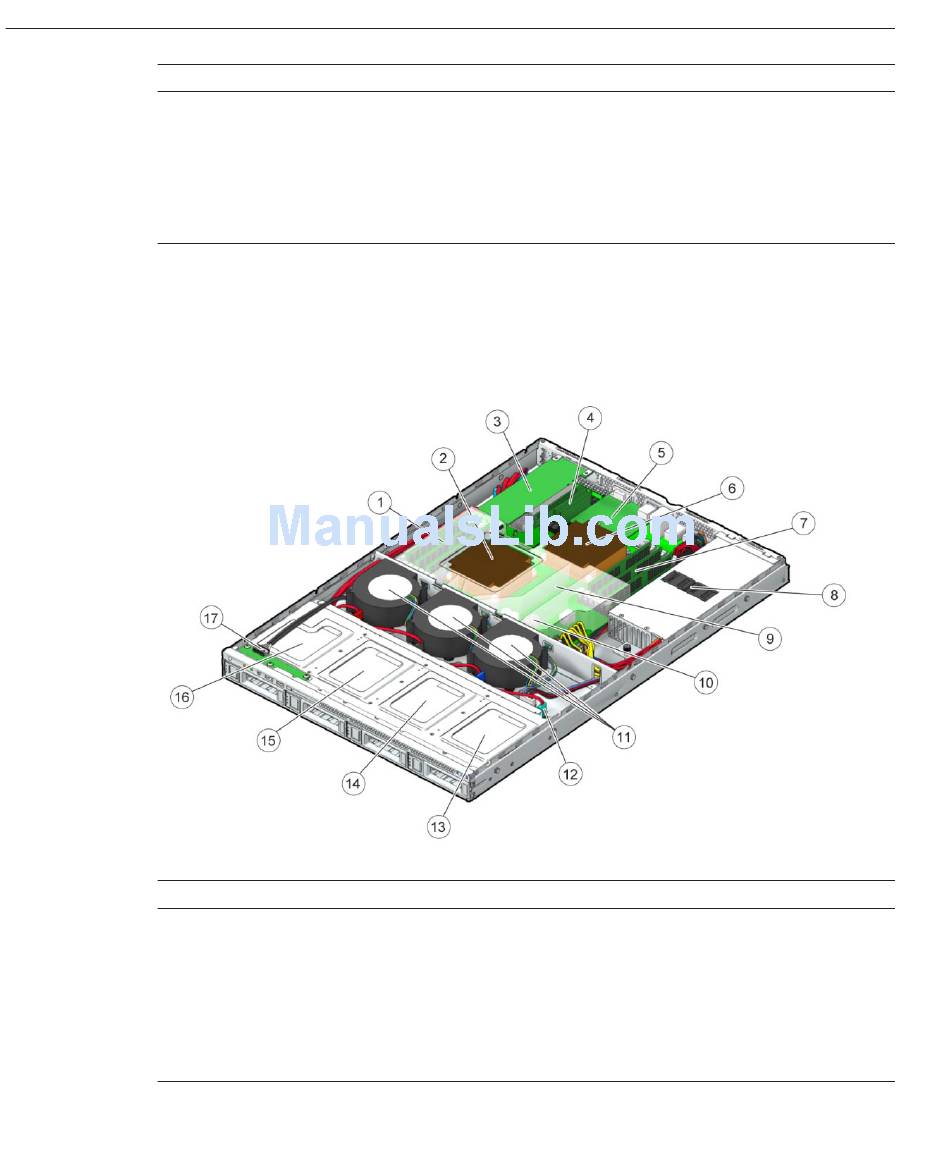

Locations of Internal Server Components
Legend
1
3
5
7
9
30 Sun Fire X2270 M2 Server Service Manual • January, 2012, –12
DIMM slots (6) for CPU 1
PCIe riser and card
SP board
DIMM slots (6) for CPU 0
Air duct
Procedures and Topics
"Replacing the Hard Drive Backplane Assembly (FRU)" on page 56
"Replacing the Front I/O Board (FRU)" on page 64
"Removing, Installing, and Adding a CPU and Heatsink (FRU)" on
page 67
"Replacing the Motherboard (FRU)" on page 73
2 CPU 1
4 Unsupported component
6 CPU 0
8 Power supply
10 System battery (located under the air duct)
