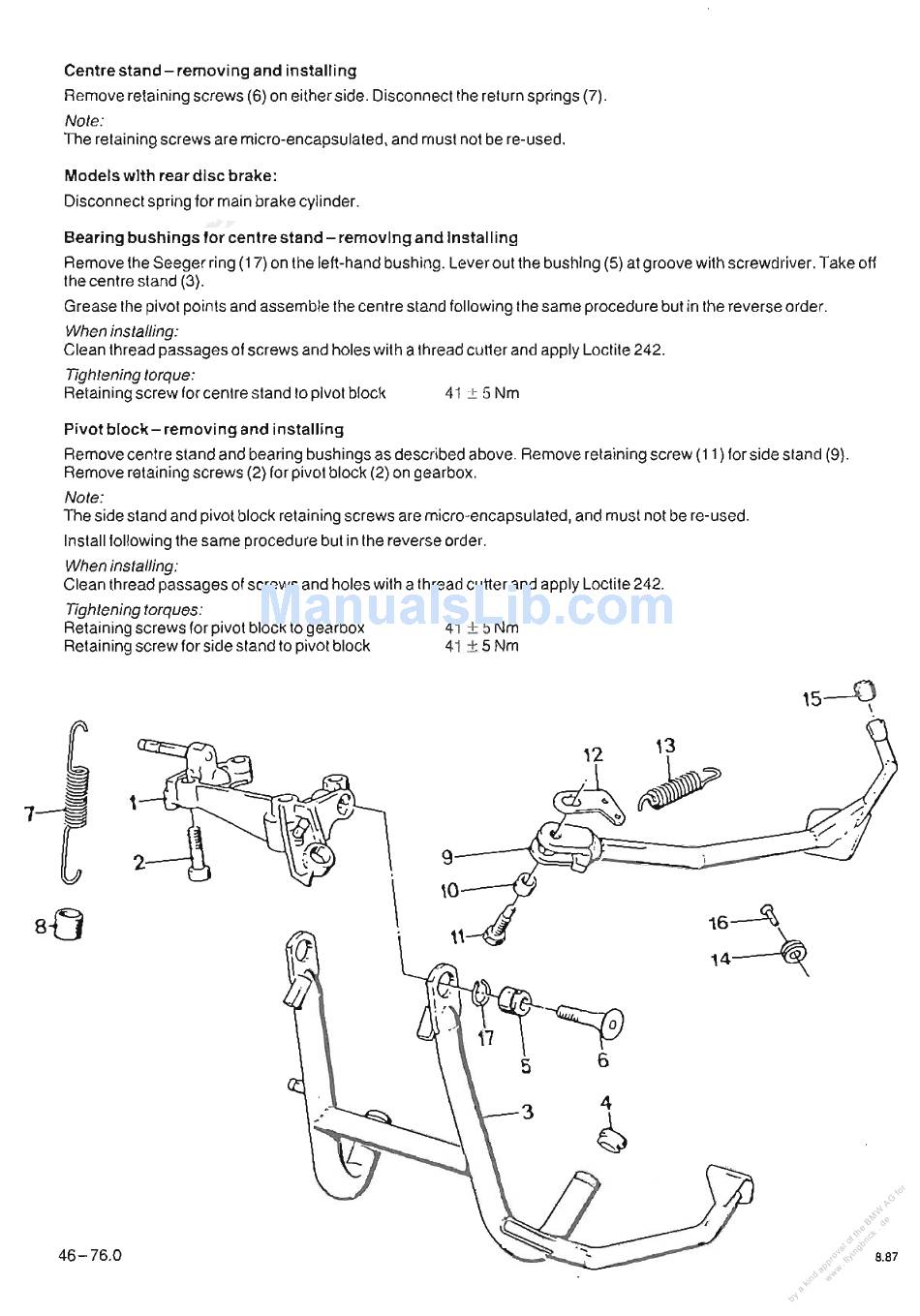

Centre stand - removing and installing
Remove retaining screws
(6)
on eitherside. Disconnectthe return springs (7).
Note:
The retaining screws are micro-encapsulated. and must not be re-used.
Models with rear disc brake:
Disconnect spring for main brake cylinder.
Bearing bushings for cent re stand - removing and installing
Remove the Seeger ring (17) on the left-hand bushing . Lever out the bushing (5) at groove with screwdriver. Take off
the centre stand (3).
Grease the pivot points and assemble the centre stand following the same procedure but in the reverse order.
When insta/ling:
Clean thread passages of screws and holes with a thread cutter and apply Loctite 242 .
Tightening torque:
Retaining screw for centre stand to pivot block 41 ± 5Nm
Pivot block - removing and installing
Remove centre stand and bearing bushings as described above . Remove retaining screw (11) forside stand (9).
Remove retaining screws (2) for pivot block (2) on gearbox.
Note:
The side stand and pivot block retaining screws are micro-encapsulated. and must not be re-used.
Install following the same procedure but in the reverse order.
When insta/ling:
Clean thread passages of screws and holes with a thread cutter and apply Loctite 242.
Tightening torques:
Retaining screws for pivot block to gearbox
Retaining screw for side stand to pivot block
41 ± 5Nm
41 ± 5Nm
'5---0
\
,
11
sO
46 - 76.0
1
\
12
'3
,
:
~-
-
"
~.~
17 \
6
5
4
6
16~~
"4~
8.87
