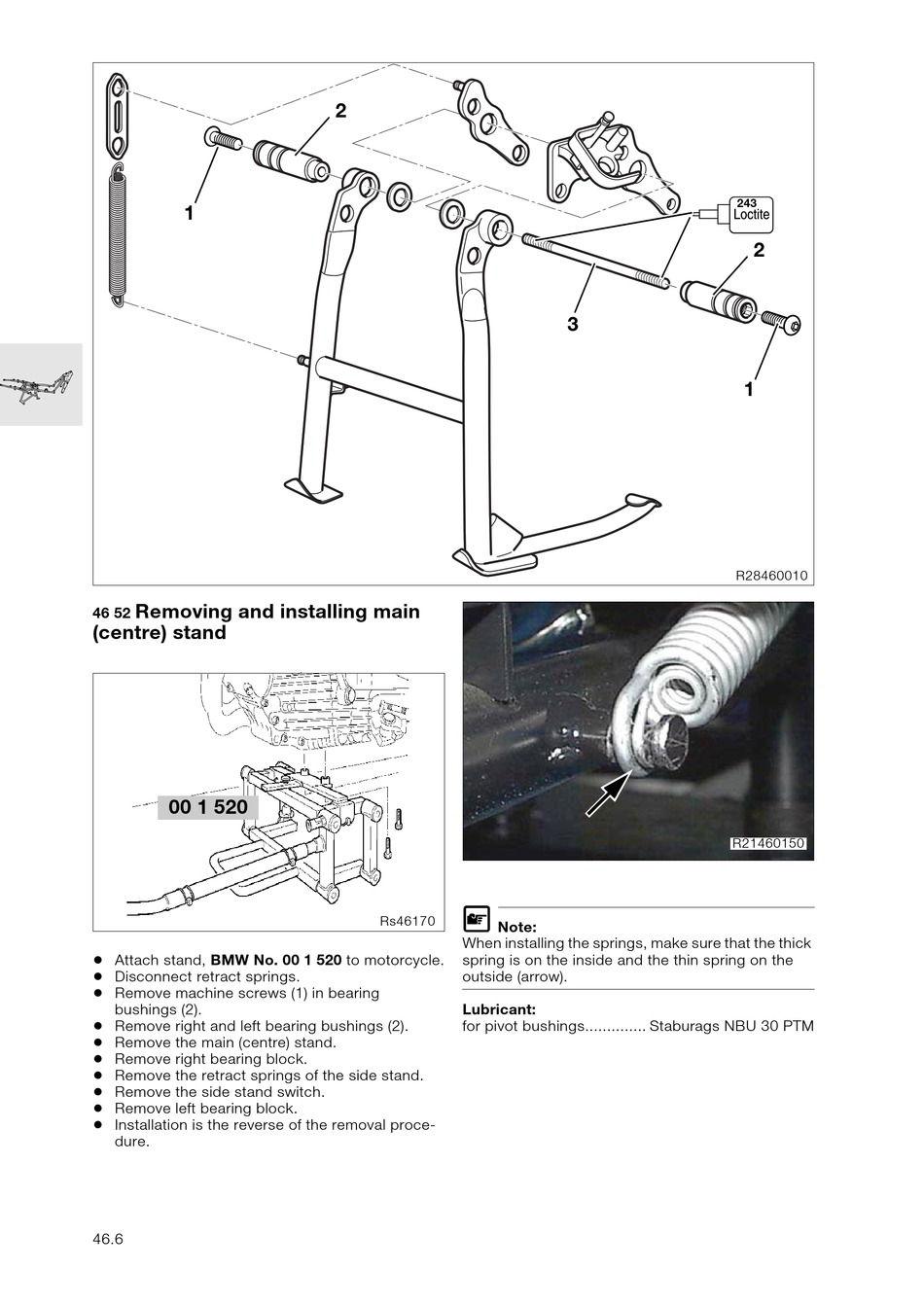

Removing and installing main
46 52
(centre) stand
00 1 520
•
Attach stand, BMW No. 00 1 520 to motorcycle.
•
Disconnect retract springs.
•
Remove machine screws (1) in bearing
bushings (2).
•
Remove right and left bearing bushings (2).
•
Remove the main (centre) stand.
•
Remove right bearing block.
•
Remove the retract springs of the side stand.
•
Remove the side stand switch.
•
Remove left bearing block.
•
Installation is the reverse of the removal proce-
dure.
46.6
2
L
Rs46170
Note:
When installing the springs, make sure that the thick
spring is on the inside and the thin spring on the
outside (arrow).
Lubricant:
for pivot bushings.............. Staburags NBU 30 PTM
v
243
3
R28460010
R21460150
2
1
