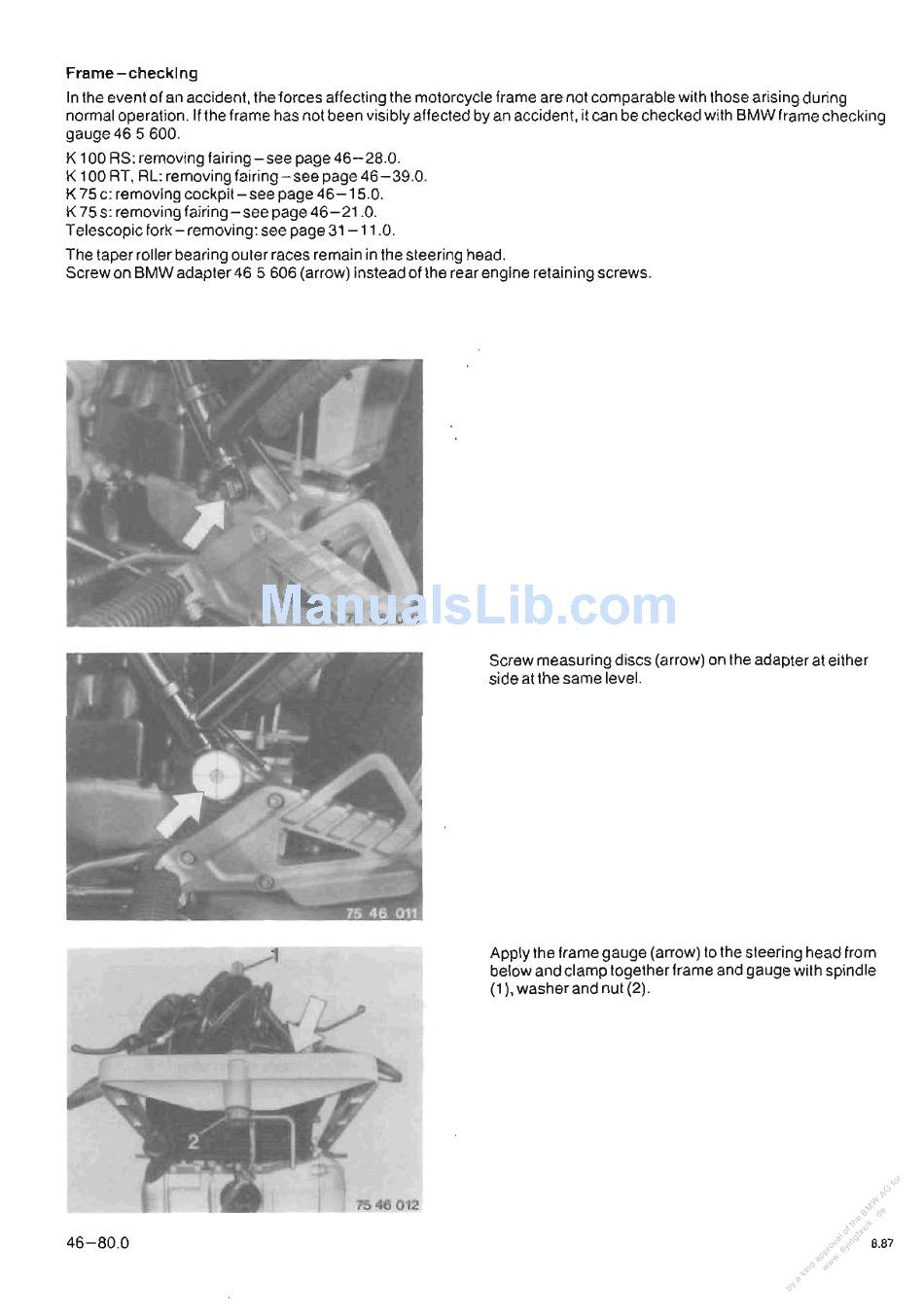

Frame - checking
In the event of an accident, the farces affecting the motorcycle frame are not comparable with those arising during
normal operation. Ifthe frame has not been visibly affected by an accident, it can be checked with BMW frame checking
gauge46 5 600.
K 100 RS : removingfairing-see page46 - 28.0.
K 100 RT, RL : removing fairing - see page 46 - 39.0.
K 75 c : removing cockpit-see page 46 - 15.0.
K 75 s : removing fairing - see page 46 - 21.0.
Telescopicfork-removing : see page 31 - 11.0.
The taper roller bearing outer races remain in the steering head.
Screwon BMW adapter 46 5 606 (arrow) instead ofthe rearengine retaining screws.
46-80.0
Screw measuring discs (arrow) on the adapter at either
side atthe same level.
Applythe frame gauge (arrow) to the steering head from
below and clamp together frame and gauge with spindie
(1), washer and nut (2).
8.87
