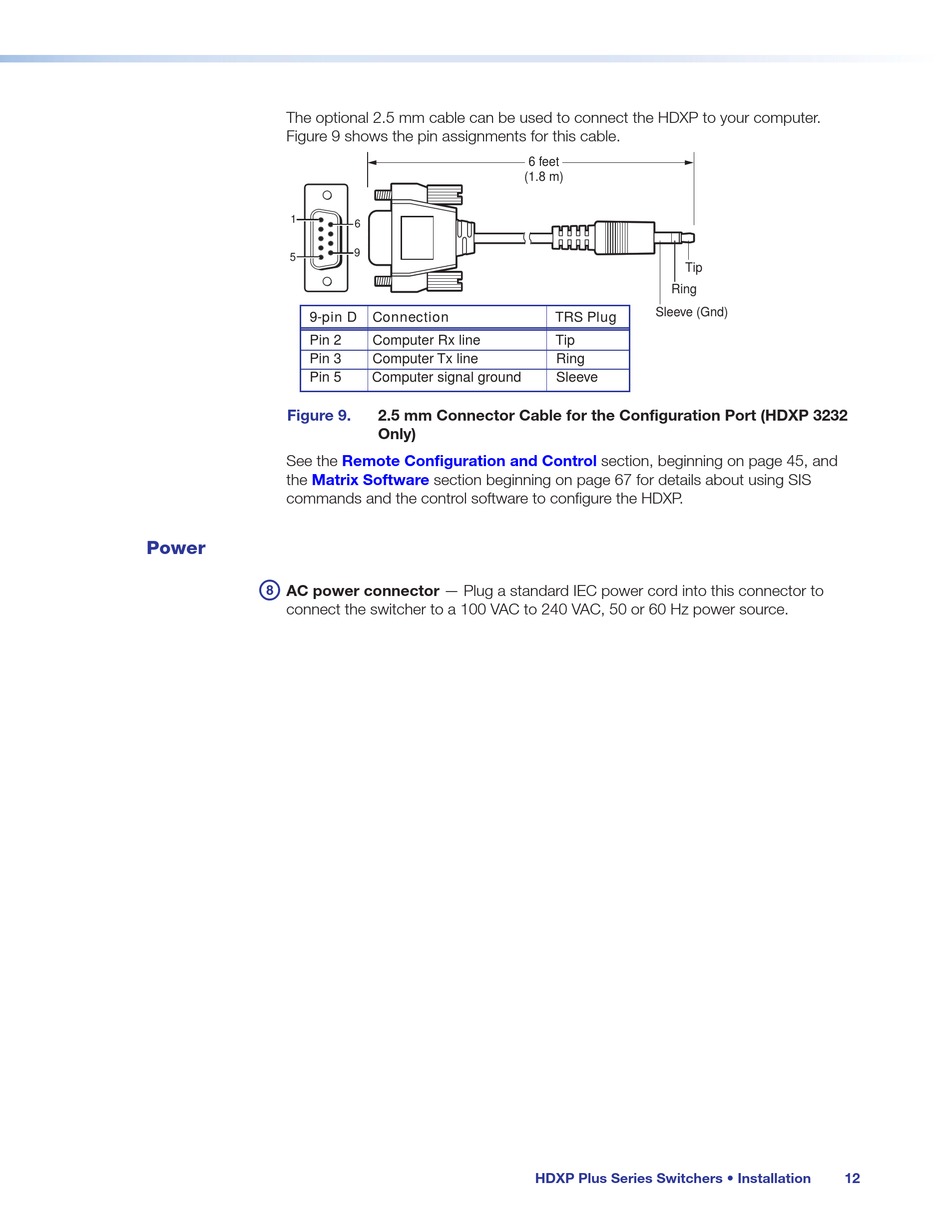

The optional 2.5 mm cable can be used to connect the HDXP to your computer.
Figure 9 shows the pin assignments for this cable.
1
5
9-pin D
Pin 2
Pin 3
Pin 5
I
Figure 9.
See the
the Matrix Software
commands and the control software to configure the HDXP.

Power

h
AC power connector — Plug a standard IEC power cord into this connector to
connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.
6
6
9
9
Connection
Computer Rx line
Computer Tx line
Computer signal ground
2.5 mm Connector Cable for the Configuration Port (HDXP 3232
Only)
Remote Configuration and Control
section beginning on page 67 for details about using SIS
6 feet
(1.8 m)
Tip
Ring
Sleeve (Gnd)
TRS Plug
Tip
Ring
Sleeve
section, beginning on page 45, and
HDXP Plus Series Switchers • Installation 12
