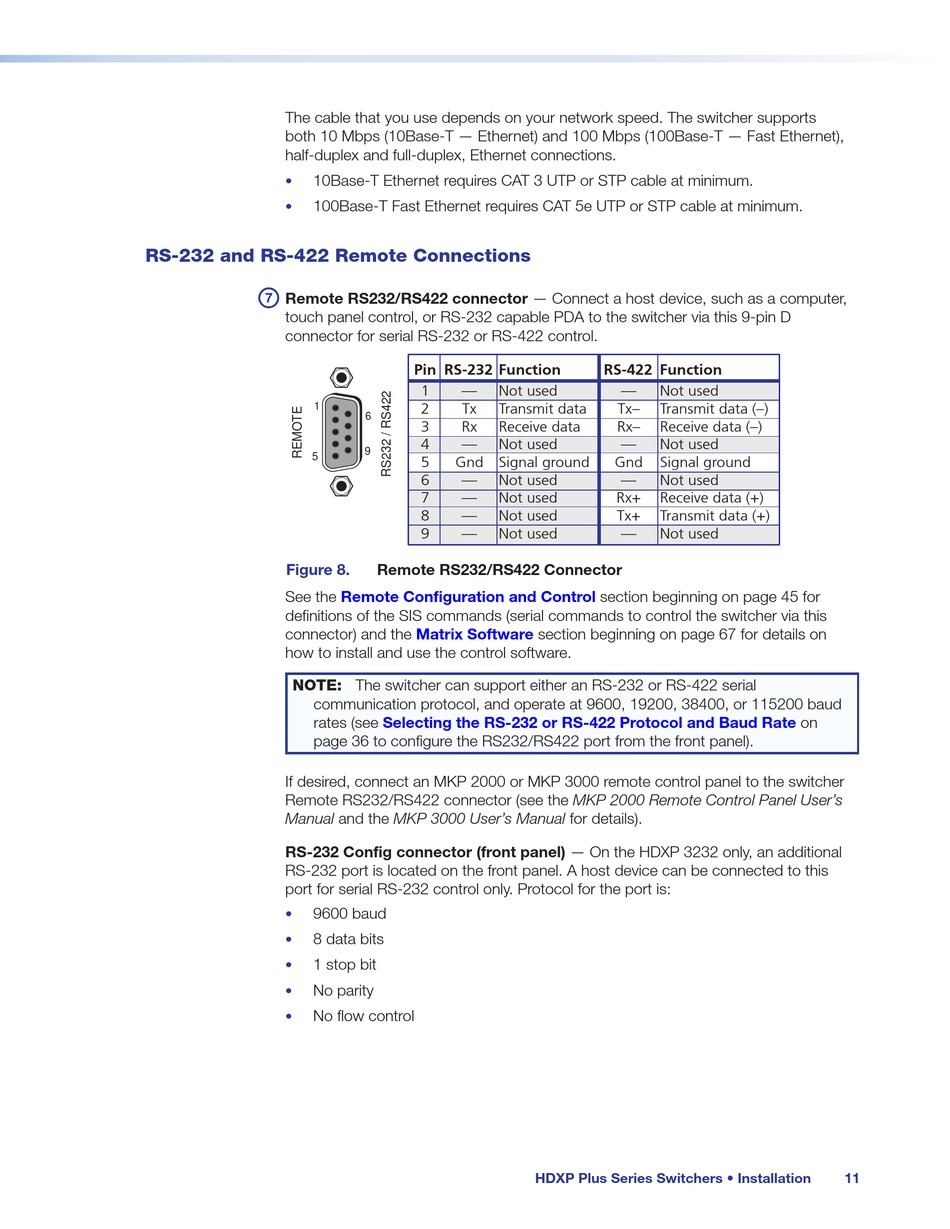

Rs-232 And Rs-422 Remote Connections - Extron electronics HDXP Plus Series User Manual

The cable that you use depends on your network speed. The switcher supports
both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet),
half-duplex and full-duplex, Ethernet connections.
10Base-T Ethernet requires CAT 3 UTP or STP cable at minimum.
•
100Base-T Fast Ethernet requires CAT 5e UTP or STP cable at minimum.
•

RS-232 and RS-422 Remote Connections

g
Remote RS232/RS422 connector — Connect a host device, such as a computer,
touch panel control, or RS-232 capable PDA to the switcher via this 9-pin D
connector for serial RS-232 or RS-422 control.
1
5
Figure 8.
See the
definitions of the SIS commands (serial commands to control the switcher via this
connector) and the
how to install and use the control software.
NOTE: The switcher can support either an RS-232 or RS-422 serial
communication protocol, and operate at 9600, 19200, 38400, or 115200 baud
rates (see
page 36 to configure the RS232/RS422 port from the front panel).
If desired, connect an MKP 2000 or MKP 3000 remote control panel to the switcher
Remote RS232/RS422 connector (see the MKP 2000 Remote Control Panel User's
Manual and the MKP 3000 User's Manual for details).
RS-232 Config connector (front panel) — On the HDXP 3232 only, an additional
RS-232 port is located on the front panel. A host device can be connected to this
port for serial RS-232 control only. Protocol for the port is:
9600 baud
•
8 data bits
•
1 stop bit
•
No parity
•
No flow control
•
Pin RS-232 Function
1 — Not used
2 Tx Transmit data
6
3 Rx Receive data
4 — Not used
9
5 Gnd Signal ground
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Remote RS232/RS422 Connector
Remote Configuration and Control
Matrix Software
Selecting the RS-232 or RS-422 Protocol and Baud Rate
RS-422 Function
— Not used
Tx– Transmit data (–)
Rx– Receive data (–)
— Not used
Gnd Signal ground
— Not used
Rx+ Receive data (+)
Tx+ Transmit data (+)
— Not used
section beginning on page 45 for
section beginning on page 67 for details on
HDXP Plus Series Switchers • Installation
on
11
