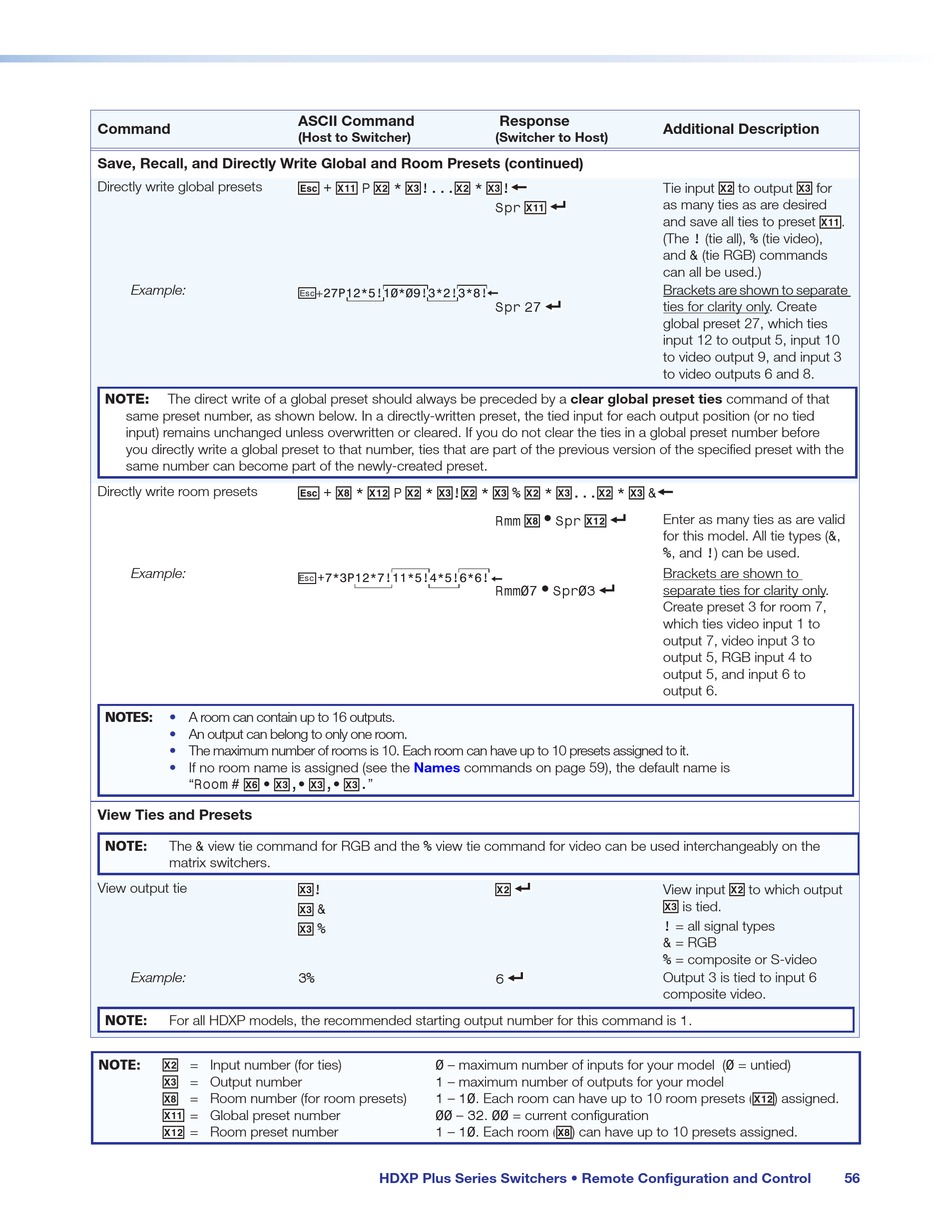

Extron electronics HDXP Plus Series User Manual page 62

Command
Save, Recall, and Directly Write Global and Room Presets (continued)
Directly write global presets
Example:
The direct write of a global preset should always be preceded by a clear global preset ties command of that
NOTE:
same preset number, as shown below. In a directly-written preset, the tied input for each output position (or no tied
input) remains unchanged unless overwritten or cleared. If you do not clear the ties in a global preset number before
you directly write a global preset to that number, ties that are part of the previous version of the specified preset with the
same number can become part of the newly-created preset.
Directly write room presets
Example:
NOTES: • A room can contain up to 16 outputs.
• An output can belong to only one room.
• The maximum number of rooms is 10. Each room can have up to 10 presets assigned to it.
• If no room name is assigned (see the
X^ X#
"Room # •
View Ties and Presets
NOTE: The & view tie command for RGB and the % view tie command for video can be used interchangeably on the
matrix switchers.
View output tie
Example:
NOTE: For all HDXP models, the recommended starting output number for this command is 1.
X@
= Input number (for ties)
NOTE:
X#
= Output number
X*
= Room number (for room presets)
X1!
= Global preset number
X1@
= Room preset number
ASCII Command
(Host to Switcher)
E X1! X@ X# X@
+ P * !...
+27P12*5!10*09!3*2!3*8!
Esc
E X* X1@ X@ X# X@
+ * P * !
+7*3P12*7!11*5!4*5!6*6!
Esc
Names
commands on page 59), the default name is
X# X#
,• ,• ."
X#
!
X#
&
X#
%
3%
0 – maximum number of inputs for your model (0 = untied)
1 – maximum number of outputs for your model
1 – 10. Each room can have up to 10 room presets (
00 – 32. 00 = current configuration
1 – 10. Each room (
HDXP Plus Series Switchers • Remote Configuration and Control
Response
(Switcher to Host)
X# }
* !
X1! ]
Spr
]
Spr 27
X# X@ X# X@ X#
* % * ... * &
X* • X1@ ]
Rmm Spr
• ]
Rmm07 Spr03
X@ ]
]
6
X*
) can have up to 10 presets assigned.
Additional Description
X@ X#
Tie input to output for
as many ties as are desired
X1!
and save all ties to preset
(The ! (tie all), % (tie video),
and & (tie RGB) commands
can all be used.)
Brackets are shown to separate
ties for clarity only. Create
global preset 27, which ties
input 12 to output 5, input 10
to video output 9, and input 3
to video outputs 6 and 8.
}
Enter as many ties as are valid
for this model. All tie types (&,
%, and !) can be used.
Brackets are shown to
separate ties for clarity only.
Create preset 3 for room 7,
which ties video input 1 to
output 7, video input 3 to
output 5, RGB input 4 to
output 5, and input 6 to
output 6.
X@
View input to which output
X#
is tied.
! = all signal types
& = RGB
% = composite or S-video
Output 3 is tied to input 6
composite video.
X1@
) assigned.
.
