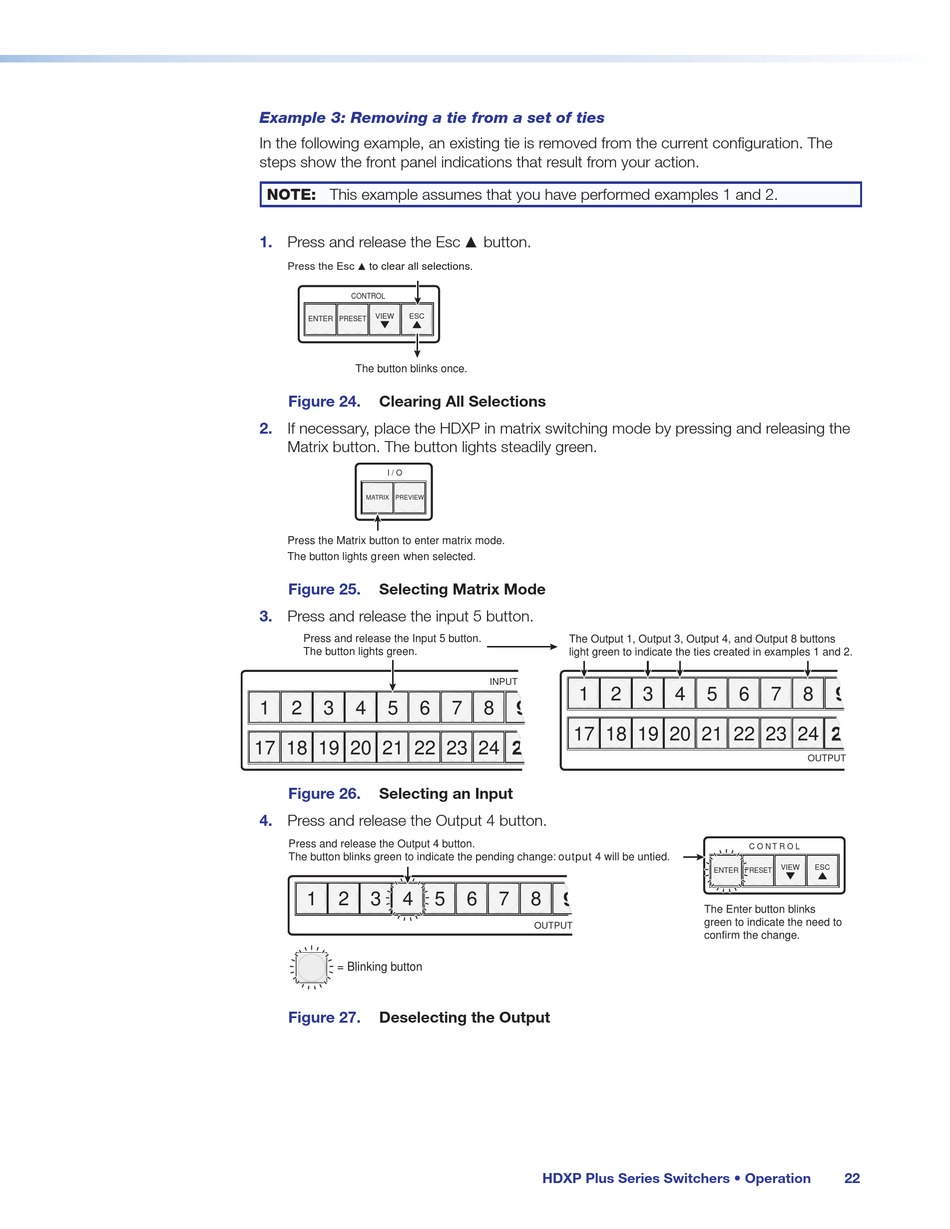

Example 3: Removing a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
steps show the front panel indications that result from your action.
NOTE: This example assumes that you have performed examples 1 and 2.
1.
Press and release the Esc
>
Press the Esc to clear all selections.
CONTROL
VIEW ESC
ENTER PRESET
The button blinks once.
Figure 24. Clearing All Selections
2. If necessary, place the HDXP in matrix switching mode by pressing and releasing the
Matrix button. The button lights steadily green.
I / O
MATRIX PREVIEW
Press the Matrix button to enter matrix mode.
The button lights green when selected.
Figure 25. Selecting Matrix Mode
3.
Press and release the input 5 button.
Press and release the Input 5 button.
The button lights green.
1 2 3 4 5 6
17 18 19 20 21 22 23 24
Figure 26. Selecting an Input
4. Press and release the Output 4 button.
Press and release the Output 4 button.
The button blinks green to indicate the pending change: output 4 will be untied.
1 2 3 4
= Blinking button
Figure 27. Deselecting the Output
>
button.
The Output 1, Output 3, Output 4, and Output 8 buttons
light green to indicate the ties created in examples 1 and 2.
INPUT
1 2
7 8
17 18 19 20 21 22 23 24
5 6 7 8
OUTPUT
