System Status Page

The System Status page (see figure 95) provides an overall view of the status of the matrix
switcher, including individual voltages and serial port status (if applicable). The System
Status page is the default page that the switcher downloads when you connect to the
switcher. Access the System Status page from other pages by clicking the tab.
Status

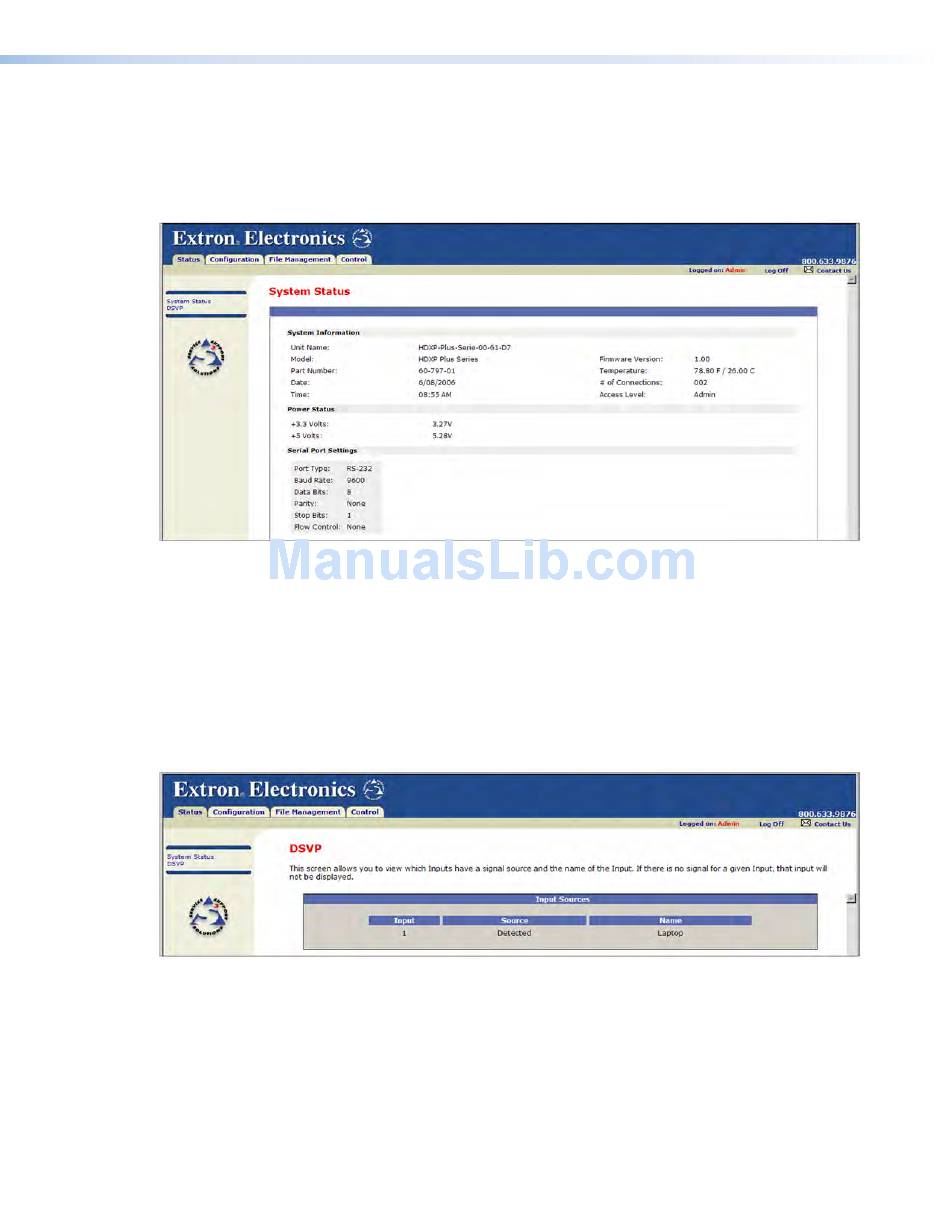

Figure 95. System Status Page
The System Status web page updates itself periodically to reflect the latest status of the
switcher components. If a variable changes, the display shows the change in status the
next time it updates.

DSVP Page

You can view a snapshot-in-time of the input frequencies of connected inputs on the
Digital Sync Validation Processing (DSVP) page. Click the link on the left panel of the
DSVP
System Status page to display the DSVP page.
Figure 96. DSVP Page
HDXP Plus Series Switchers • HTML Configuration and Control 98
