Removing and Installing a Power Supply Module

The two power supply modules (primary power supply and redundant power supply) are identical. Each power supply module has
a 2-color LED, visible on the front panel, that indicates the status of the power supply outputs. If the LED is lit green, the power
supply is operating normally. If the LED is lit red, the supply has failed and should be replaced at the earliest opportunity.
ATTENTION:
• Disconnect both power supply cords before servicing.
• Débranchez les deux câbles de la source d'alimentation avant l'entretient.
NOTE: Power supply modules are not interchangeable
between other FOX3 Matrix models.
1. Rotate the left and right captive panel screws to completely
loosen the screws (see figure 15).
2.
Gently pull on the handle to loosen the power supply from
the backplane.
3. Slide the power supply out of the chassis.
4.
Orient the power supply module to be installed with handle
on the bottom.
5. Align the flanges on the power supply module with the left
and right power supply guides.
6. Gently slide the power supply module into the enclosure until
the power supply meets resistance.
7. Gently seat the power supply in the backplane.
8. Use a screwdriver to tighten the left and right captive panel
screws to lock the power supply in place.

Removing and Installing a Fan Module

The FOX3 Matrix has a single fan module with multiple
fans. If the fan fails, it should be replaced at the
earliest opportunity.
1. Rotate the top and bottom captive panel screws
to completely loosen the screws (see figure 16).
2. Gently pull on the captive panel screws to loosen
the fan from the backplane.
3. Slide the fan out of the chassis.
4.
Orient the replacement fan so that the printing on
the back of the panel is right-side up.
5. Align the flanges on the fan with the top and
bottom fan guides.
6.
Gently slide the fan into the enclosure until the fan
meets resistance.
7. Gently seat the fan in the backplane.
8. Use a screwdriver to tighten the top and bottom
captive panel screws to lock the fan in place.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
12
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
Figure 16.
on the Extron website.
© 2020 Extron Electronics — All rights reserved.
All trademarks mentioned are the property of their respective owners.

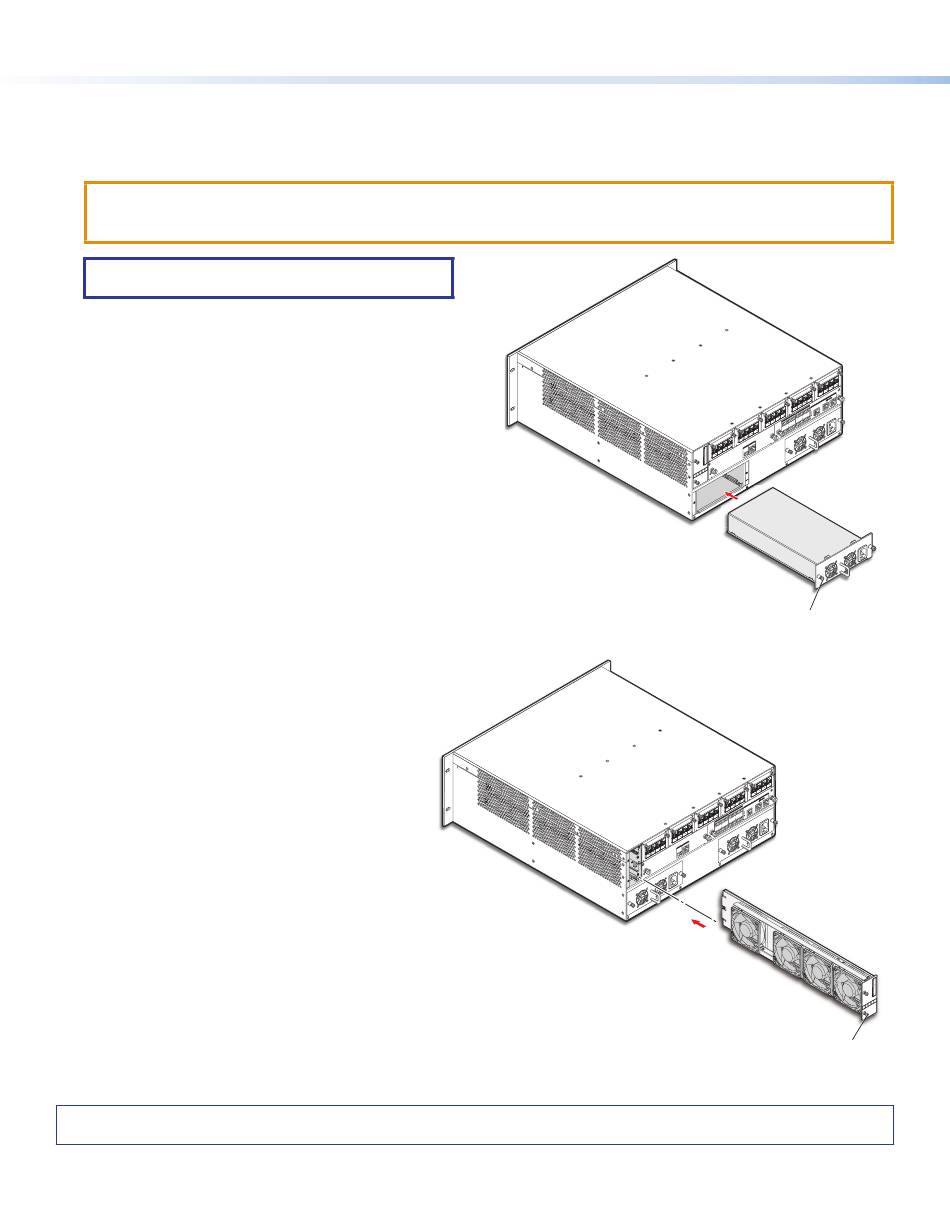

Figure 15. Replacing a Power Supply
