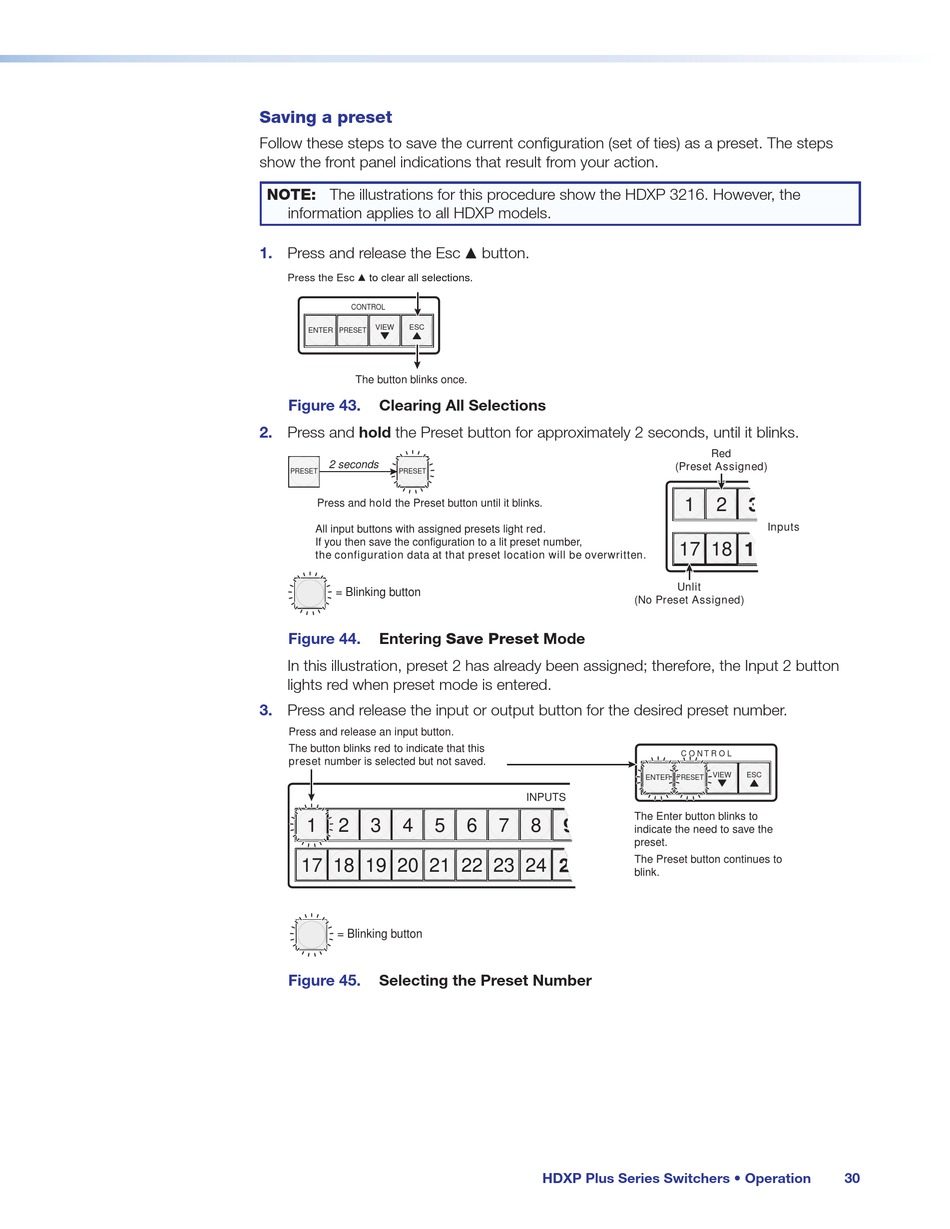

Saving a preset

Follow these steps to save the current configuration (set of ties) as a preset. The steps
show the front panel indications that result from your action.
NOTE: The illustrations for this procedure show the HDXP 3216. However, the
information applies to all HDXP models.
1. Press and release the Esc
>
Press the Esc to clear all selections.
CONTROL
VIEW ESC
ENTER PRESET
The button blinks once.
Figure 43. Clearing All Selections
2. Press and hold the Preset button for approximately 2 seconds, until it blinks.
2 seconds
PRESET PRESET
Press and hold the Preset button until it blinks.
All input buttons with assigned presets light red.
If you then save the configuration to a lit preset number,
the configuration data at that preset location will be overwritten.
= Blinking button
Figure 44. Entering Save Preset Mode
In this illustration, preset 2 has already been assigned; therefore, the Input 2 button
lights red when preset mode is entered.
3. Press and release the input or output button for the desired preset number.
Press and release an input button.
The button blinks red to indicate that this
preset number is selected but not saved.
1 2 3 4 5
17 18 19 20 21 22 23 24
= Blinking button
Figure 45. Selecting the Preset Number
>
button.
(No Preset Assigned)
INPUTS
The Enter button blinks to
6 7 8
indicate the need to save the
preset.
The Preset button continues to
blink.
HDXP Plus Series Switchers • Operation
Red
(Preset Assigned)
1 1 2 2
Inputs
17 18
17 18
Unlit
C O N T R O L
VIEW ESC
ENTER PRESET
30
