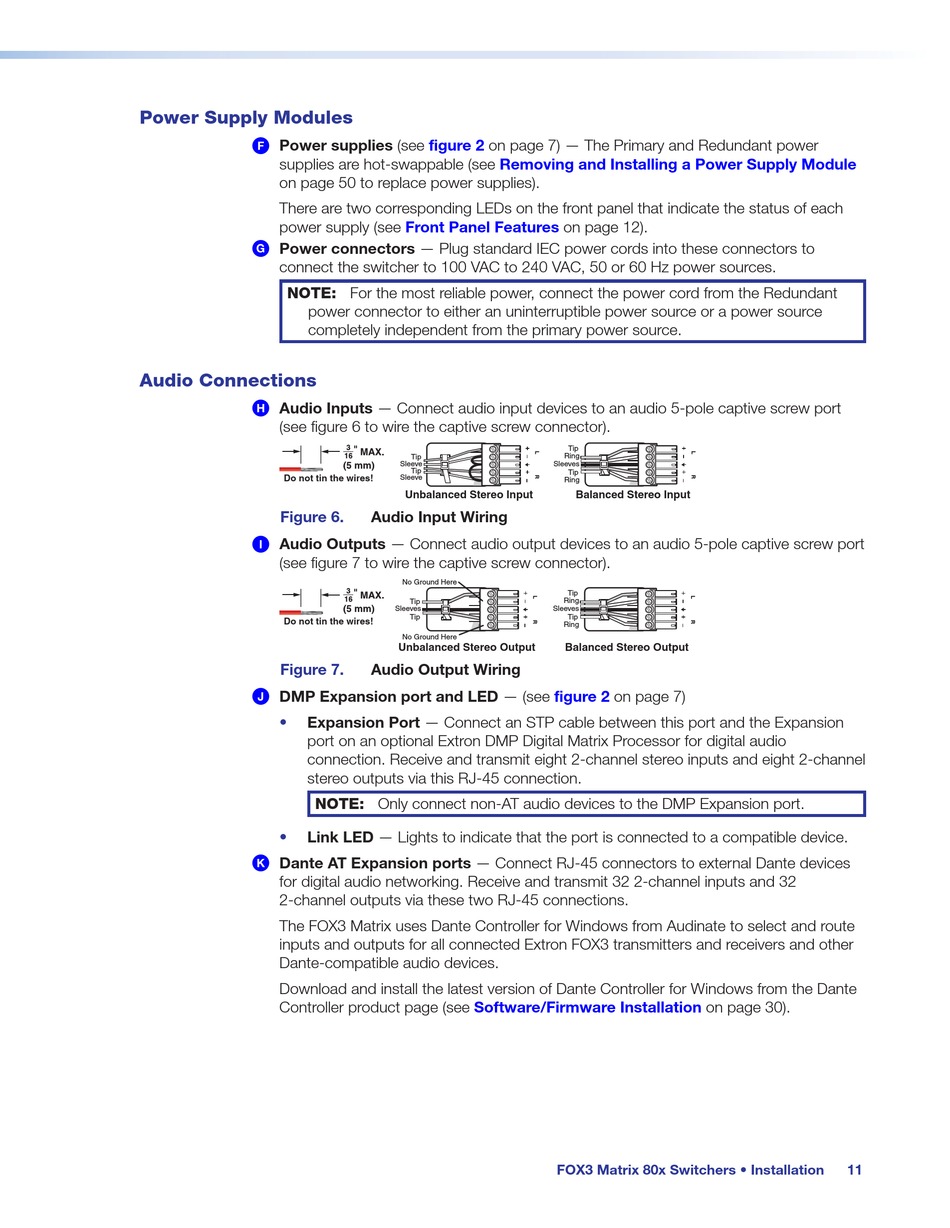

Power Supply Modules

Power supplies (see
F
supplies are hot-swappable (see
on page 50 to replace power supplies).
There are two corresponding LEDs on the front panel that indicate the status of each
power supply (see
Power connectors — Plug standard IEC power cords into these connectors to
G
connect the switcher to 100 VAC to 240 VAC, 50 or 60 Hz power sources.
NOTE: For the most reliable power, connect the power cord from the Redundant
power connector to either an uninterruptible power source or a power source
completely independent from the primary power source.

Audio Connections

Audio Inputs — Connect audio input devices to an audio 5-pole captive screw port
H
(see figure 6 to wire the captive screw connector).
Do not tin the wires!
Figure 6.
Audio Outputs — Connect audio output devices to an audio 5-pole captive screw port
I
(see figure 7 to wire the captive screw connector).
Do not tin the wires!
Figure 7.
DMP Expansion port and LED — (see
J
Expansion Port — Connect an STP cable between this port and the Expansion
•
port on an optional Extron DMP Digital Matrix Processor for digital audio
connection. Receive and transmit eight 2-channel stereo inputs and eight 2-channel
stereo outputs via this RJ-45 connection.
NOTE: Only connect non-AT audio devices to the DMP Expansion port.
Link LED — Lights to indicate that the port is connected to a compatible device.
•
Dante AT Expansion ports — Connect RJ-45 connectors to external Dante devices
K
for digital audio networking. Receive and transmit 32 2-channel inputs and 32
2-channel outputs via these two RJ-45 connections.
The FOX3 Matrix uses Dante Controller for Windows from Audinate to select and route
inputs and outputs for all connected Extron FOX3 transmitters and receivers and other
Dante-compatible audio devices.
Download and install the latest version of Dante Controller for Windows from the Dante
Controller product page (see
figure 2
on page 7) — The Primary and Redundant power
Removing and Installing a Power Supply Module
Front Panel Features
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Audio Input Wiring
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Stereo Output
Audio Output Wiring
Software/Firmware Installation
on page 12).
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Output
figure 2 on page 7)
on page 30).
FOX3 Matrix 80x Switchers • Installation 11
